Power Distribution Module(S) - Altronix AL400ULPD8CB Installation Manual

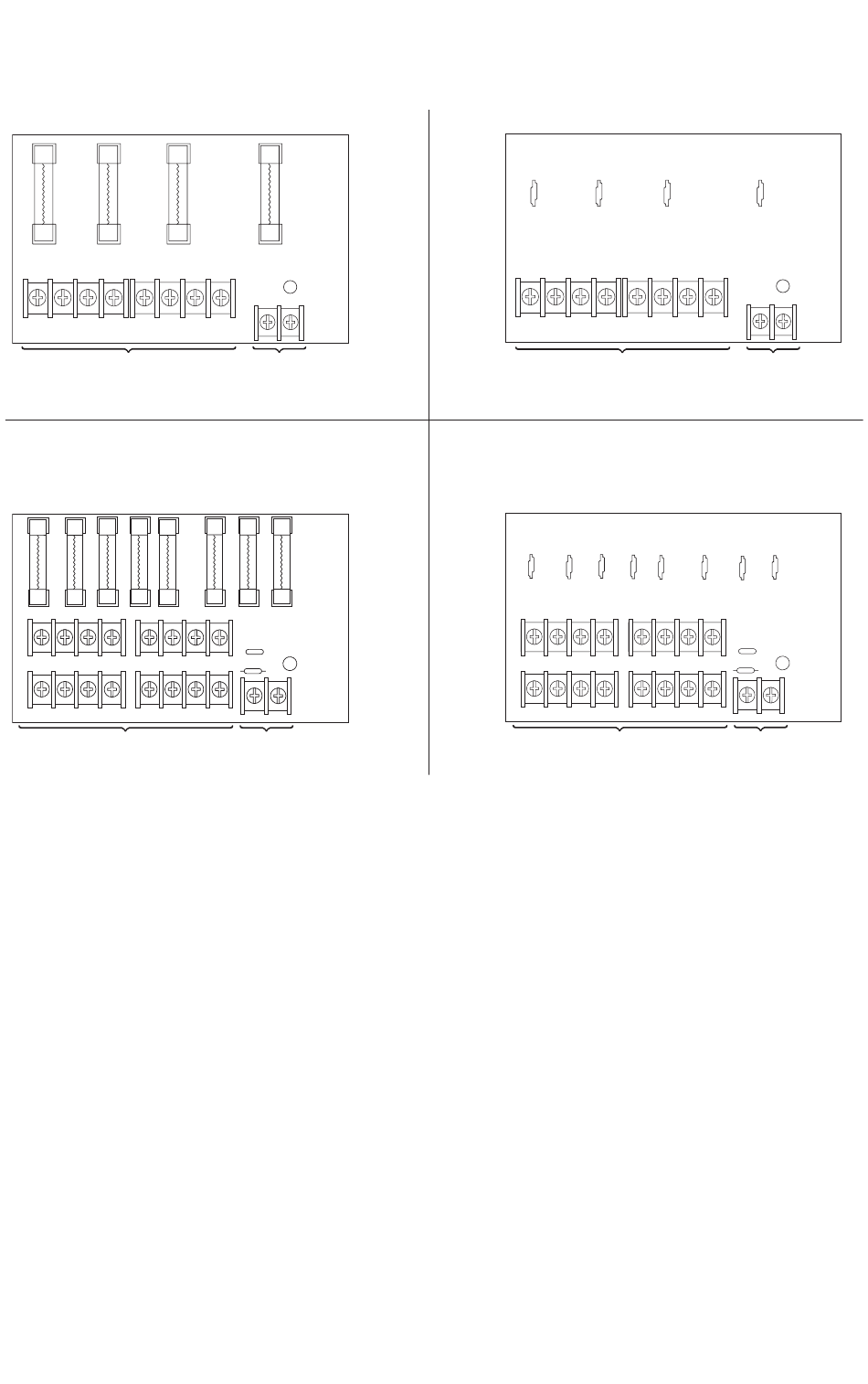

Fig. 2a - PD4UL Power Distribution Board
Non Power-Limited Outputs
Replace fuses with the same type and rating 3.5A/250V
F1 F2 F3
1P 1N 2P 2N 3P 3N
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
Fig. 3a - PD8UL Power Distribution Board
Non Power-Limited Outputs
Replace fuses with the same type and rating 3.5A/250V
1 2 3 4 5
P
FUSED POWER OUTPUTS
N
COMMON POWER OUTPUTS
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
AL400ULX Series

Power Distribution Module(s):

F4
LED
4P 4N
From Power Supply
Board
(Factory Installed)
6 7 8
D1
LED
R1
INPUT
From Power Supply
Board
(Factory Installed)
Fig. 2b - PD4ULCB - Power Distribution Board
Class 2 Power-Limited Outputs
F1 F2
1P 1N 2P 2N
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
Fig. 3b - PD8ULCB - Power Distribution Board
Class 2 Power-Limited Outputs
1 2 3 4
P
FUSED POWER OUTPUTS
N
COMMON POWER OUTPUTS
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
F3 F4
LED
3P 3N 4P 4N
From Power Supply
Board
(Factory Installed)
5 6 7 8
D1
LED
R1
INPUT
From Power Supply
Board
(Factory Installed)
- 7 -
