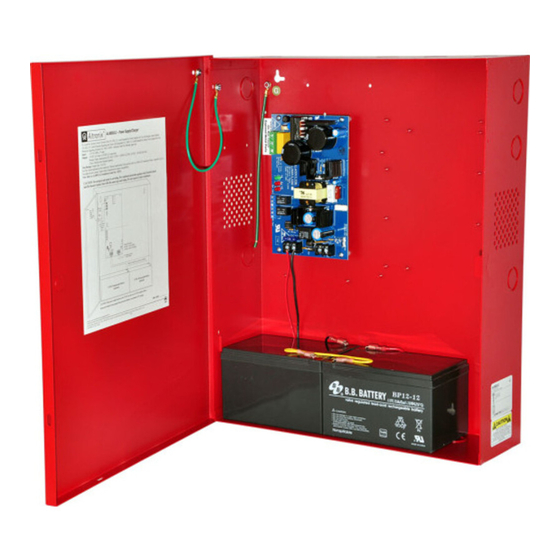

- Page 1 AL400ULXJ Power Supply/Charger Installation Guide Altronix Corp. 140 58th St. Brooklyn, NY 9B98 9B98 For a grey enclosure add a “G” suffix to the part number Rev. 102512...
-
Page 2: Installation Instructions
Overview: The AL400ULXJ is a power supply that converts a 115VAC / 60Hz input to a 12VDC or 24VDC output. Specifications: Agency Listings: Output (cont’d): • UL Listed for Access Control Systems (UL294), • 4A total supply current at 12VDC or Power Supplies for use with Burglar-Alarm 3A total supply current at 24VDC. - Page 3 Optional Rechargeable OFF - 24V Stand-by Battery Stand-by Battery ON - 12V CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. AL400ULXJ - 3 -...
- Page 4 Bat Fail Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized when DC power NC, C, NO is present. Contact rating 1A @ 28VDC. + BAT – Stand-by battery connections. Maximum charge current 0.7A. - 4 - AL400ULXJ...
- Page 5 Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL400ULXJ output. System Sensor Max Stand-by Alarm Current Detector Type Smoke Detector/Base Current (mA) (mA) B112LP Base 0.12...
- Page 6 Notes: - 6 - AL400ULXJ...
- Page 7 Notes: AL400ULXJ - 7 -...
- Page 8 (114.3mm) (69.85mm) 14.5” (368.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. MEMBER IIAL400ULXJ E18P - 8 - AL400ULXJ...
