- Page 1 AL400ULX Power Supply/Charger Installation Guide For a red enclosure, add an “R” suffix to the part # e.g. AL400ULXR Rev. 111003...

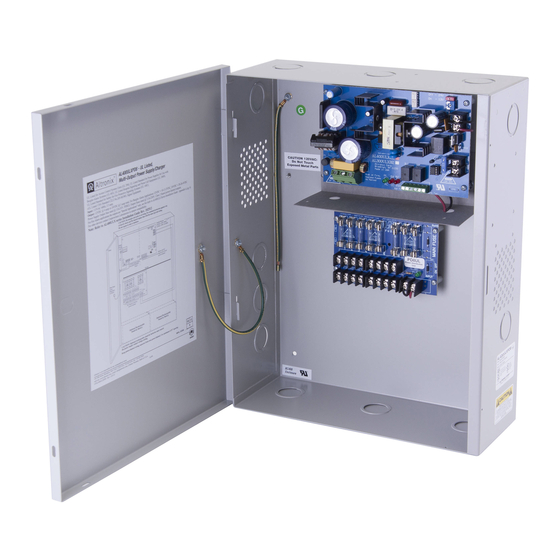

- Page 2 Overview: The AL400ULX is a power supply that converts a 115VAC / 60Hz input, to a 12VDC or 24VDC regulating output. Specifications: Agency LIsting: Output (cont’d): • UL Listed for Access Control Systems (UL294), Do not exceed total output rating of 4 amp @ 12VDC Power Supplies for use with Burglar-Alarm or 3 amp @ 24VDC per unit.
- Page 3 12VDC Rechargeable Battery 12VDC Rechargeable Battery AC Delay (optional) (optional) CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery. Keep power-limited wiring separate from non-power limited. Use minimum .25" spacing. AL400ULX - 3 -...
- Page 4 10.50" 1.00" Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIAL400ULX A23I - 4 - AL400ULX...
