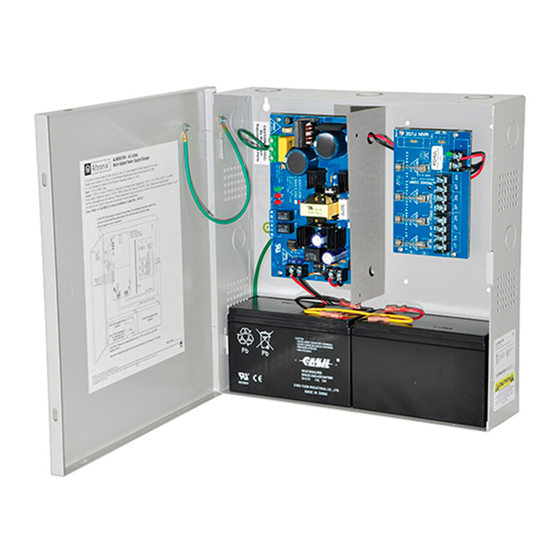

Altronix AL400ULPD4 Installation Manual
Al400ulpd series
power supply/charger
Hide thumbs
Also See for AL400ULPD4:
- Installation manual (13 pages) ,
- Installation manual (9 pages) ,
- Installation manual (12 pages)
Table of Contents
Advertisement
Quick Links
AL400ULPD Series
Power Supply/Charger
Installation Guide
Models Include:
• AL400ULPD4
-
Four (4) Fused Outputs
• AL400ULPD8
-
Eight (8) Fused Outputs
• AL400ULXPD16
-
Sixteen (16) Fused Outputs
For a red enclosure, add an "R" suffix to the part # e.g. AL400ULPD8R
• AL400ULPD4CB
-
Four (4) PTC Outputs
• AL400ULPD8CB
-
Eight (8) PTC Outputs
• AL400ULXPD16CB
-
Sixteen (16) PTC Outputs
Rev. 111203
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL400ULPD4
Summary of Contents for Altronix AL400ULPD4
-
Page 1: Installation Guide
AL400ULPD Series Power Supply/Charger Installation Guide Models Include: • AL400ULPD4 • AL400ULPD4CB Four (4) Fused Outputs Four (4) PTC Outputs • AL400ULPD8 • AL400ULPD8CB Eight (8) Fused Outputs Eight (8) PTC Outputs • AL400ULXPD16 • AL400ULXPD16CB Sixteen (16) Fused Outputs Sixteen (16) PTC Outputs For a red enclosure, add an “R”... -
Page 2: Specifications
These UL Listed multi-output power supply/chargers convert a 115VAC / 60Hz input, to a 12VDC or 24VDC regulating output (see specifications below). AL400ULPD Series Power Supply Configuration Reference Chart: UL File # S4707 AL400ULPD4 PD4UL UL 294 UL Listed for Access Control System Units. - Page 3 Power Supply Output Specifications: Output Switch Position 12VDC SW1 - CLOSED (Fig. 1b) 24VDC SW1 - OPEN (Fig. 1b) Stand-by Specifications (total current shown): 4 hr. of Stand-by & 24 hr. of Stand-by & 60 hr. of Stand-by & Output 5 Minutes of Alarm 5 Minutes of Alarm 5 Minutes of Alarm...
- Page 4 Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local codes and authorities having jurisdiction. Product is intended for indoor use only. 1. Mount unit in desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the enclosure.
-
Page 5: Led Diagnostics
LED Diagnostics: AL400ULXB - Power Supply Board Red (DC) Green (AC) Power Supply Status Normal operating condition. Loss of AC, Stand-by battery supplying power. No DC output. Loss of AC. Discharged or no stand-by battery. No Dc output. Terminal Identification: AL400ULXB - Power Supply Board Terminal Function/Description... -
Page 6: Power Distribution Module(S)
Power Distribution Module(s): Fig. 2a Fig. 2a Replace fuses with the same type and rating 3.5A, 250V. INPUT POWER OUTPUTS DC Output to devices DC Output to devices From Power Supply From Power Supply 1P-4P Power Outputs, Board 1P-4P Power Outputs, Board 1N-4N Common Outputs (Factory Installed) - Page 7 Enclosure Dimensions: • AL400ULPD4 • AL400ULPD4CB 1.40" 4.85" 4.85" 1.40" • AL400ULPD8 • AL400ULPD8CB 1.20" 13.5”H x 13”W x 3.25”D 3.25" 12.50" 1.20" 1.20" 0.75" 11.00" 0.75" 0.9375" 1.40" 1.40" 5.10" 5.10" Left Right 5.10" 6.5625" 0.9375" 3.25" 3.25" Bottom 3.25"...
- Page 8 1.285 1.285 Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL400ULPD series L30H MEMBER - 8 -...
