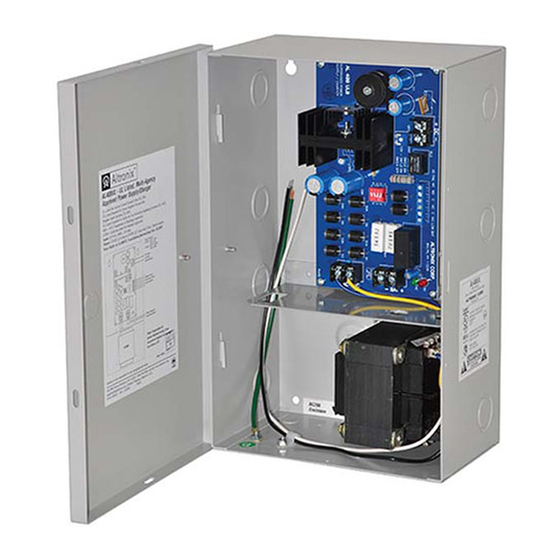

Altronix AL400UL Installation Instructions

Altronix AL400UL power supply converts a 115VAC, 60Hz input to a 12VDC or 24VDC power-limited output
(see specifications). AL400UL is UL Listed for fire alarm, burglar alarm, and access control applications.
UL 294
UL 603
UL 1069
UL 1481
MEA - NYC Department of Buildings Approved.
Altronix Corp.
140 58th St. Brooklyn, NY
CSFM - California State Fire Marshal Approved.
NFPA 72 compliant
Input:
• Input 115VAC, 60Hz, 1.425A.
Output:
• 12VDC or 24VDC selectable output.
• 12VDC @ 4A or 24VDC @ 3A supply current.
• Class 2 Rated power-limited output.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Supervision:
• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
Power Supply Voltage Output Selections:
Output
12VDC
24VDC
Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
AL400UL
UL Listed, Multi-Agency Approved Power Supply/Charger
Agency Listings:
Access Control System Units.
Power Supplies for Use with Burglar-Alarm Systems.
Hospital Signaling and Nurse Call Equipment.
Fire Protective Signaling Systems.
Switch Position
SW1, 2 - ON, SW3, 4 - OFF
SW1, 2 - OFF, SW3, 4 - ON
Stand-by Specifications:
4 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 4.0A
Alarm = 4.0A
–
Stand-by = 3.0A
Alarm = 3.0A

Overview:

Features:
Battery Backup:
• Battery leads included.
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 1.2A.
Visual Indicators:
• AC input and DC output LED indicators.
Enclosure Dimensions (H x W x D approx.):
12.25" x 7.25" x 4.5"
(311.2mm x 184.2mm x 114.3mm)
24 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 1.0A
Alarm = 4.0A
Stand-by = 200mA
Alarm = 3.0A
Stand-by = 1.0A
Alarm = 3.0A
60 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 4.0A
–
Stand-by = 300mA
Alarm = 3.0A
