Icon
NO1 C1, NO2 C2,
NO3 C3
485 A/B

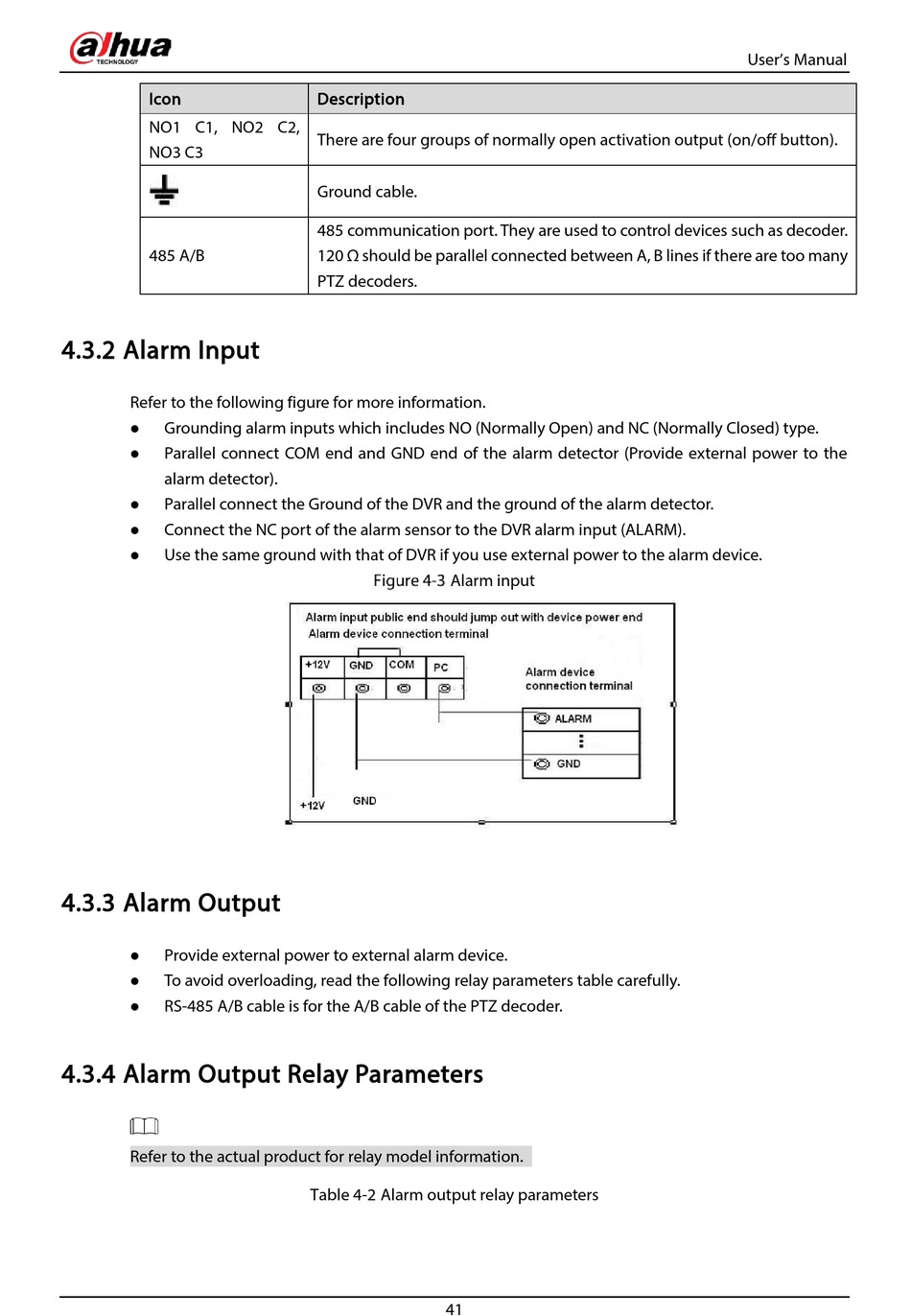

4.3.2 Alarm Input

Refer to the following figure for more information.
Grounding alarm inputs which includes NO (Normally Open) and NC (Normally Closed) type.

Parallel connect COM end and GND end of the alarm detector (Provide external power to the

alarm detector).
Parallel connect the Ground of the DVR and the ground of the alarm detector.

Connect the NC port of the alarm sensor to the DVR alarm input (ALARM).

Use the same ground with that of DVR if you use external power to the alarm device.


4.3.3 Alarm Output

Provide external power to external alarm device.

To avoid overloading, read the following relay parameters table carefully.

RS-485 A/B cable is for the A/B cable of the PTZ decoder.


4.3.4 Alarm Output Relay Parameters

Refer to the actual product for relay model information.
Description
There are four groups of normally open activation output (on/off button).
Ground cable.
485 communication port. They are used to control devices such as decoder.
120 Ω should be parallel connected between A, B lines if there are too many
PTZ decoders.
Alarm input
Table 4-2 Alarm output relay parameters
41
User's Manual
