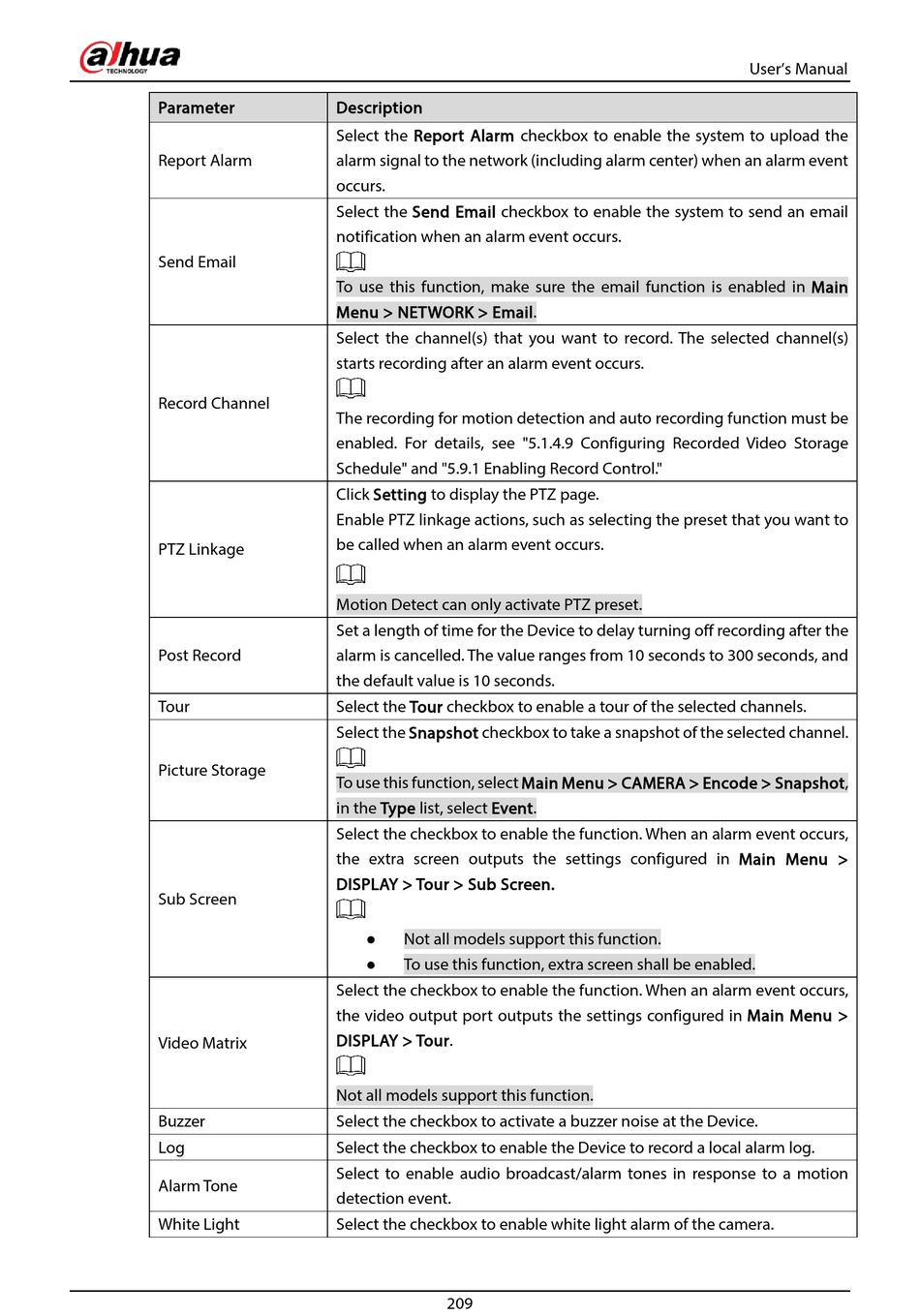

Dahua DH-XVR5104HS-4KL-I3 User Manual page 218

Parameter
Report Alarm
Send Email
Record Channel
PTZ Linkage
Post Record
Tour
Picture Storage
Sub Screen
Video Matrix
Buzzer
Log
Alarm Tone
White Light
Description
Select the Report Alarm checkbox to enable the system to upload the
alarm signal to the network (including alarm center) when an alarm event
occurs.
Select the Send Email checkbox to enable the system to send an email
notification when an alarm event occurs.
To use this function, make sure the email function is enabled in Main
Menu > NETWORK > Email.
Select the channel(s) that you want to record. The selected channel(s)
starts recording after an alarm event occurs.
The recording for motion detection and auto recording function must be
enabled. For details, see "5.1.4.9 Configuring Recorded Video Storage
Schedule" and "5.9.1 Enabling Record Control."
Click Setting to display the PTZ page.
Enable PTZ linkage actions, such as selecting the preset that you want to
be called when an alarm event occurs.
Motion Detect can only activate PTZ preset.
Set a length of time for the Device to delay turning off recording after the
alarm is cancelled. The value ranges from 10 seconds to 300 seconds, and
the default value is 10 seconds.
Select the Tour checkbox to enable a tour of the selected channels.
Select the Snapshot checkbox to take a snapshot of the selected channel.
To use this function, select Main Menu > CAMERA > Encode > Snapshot,
in the Type list, select Event.
Select the checkbox to enable the function. When an alarm event occurs,
the extra screen outputs the settings configured in Main Menu >
DISPLAY > Tour > Sub Screen.
Not all models support this function.

To use this function, extra screen shall be enabled.

Select the checkbox to enable the function. When an alarm event occurs,
the video output port outputs the settings configured in Main Menu >
DISPLAY > Tour.
Not all models support this function.
Select the checkbox to activate a buzzer noise at the Device.
Select the checkbox to enable the Device to record a local alarm log.
Select to enable audio broadcast/alarm tones in response to a motion
detection event.
Select the checkbox to enable white light alarm of the camera.
