3.1.5 DH-XVR41xxHS-I/DH-XVR41xxC-I/DH-XVR41xxHS-I/DH-
XVR42xxAN-I/DH-XVR51xxHS-I2/DH-XVR51xxH-I2/DH-XVR51xxHE-
I2/DH-XVR51xxHS-4KL-I2/DH-XVR51xxH-4KL-I2/DH-XVR51xxHE-4KL-
I2/DH-XVR51xxHS-I3/DH-XVR51xxH-I3/DH-XVR51xxHE-I3/DH-
XVR51xxHS-4KL-I3/DH-XVR51xxH-4KL-I3/DH-XVR51xxHE-4KL-I3/DH-
XVR52xxAN-I2/DH-XVR52xxA-I2/DH-XVR52xxAN-4KL-I2/DH-
XVR52xxA-4KL-I2/DH-XVR52xxAN-I3/DH-XVR52xxA-I3/DH-
XVR52xxAN-4KL-I3/DH-XVR52xxA-4KL-I3
No. Port Name
1 HDD
2 NET
3 POWER
4 USB port
Front panel

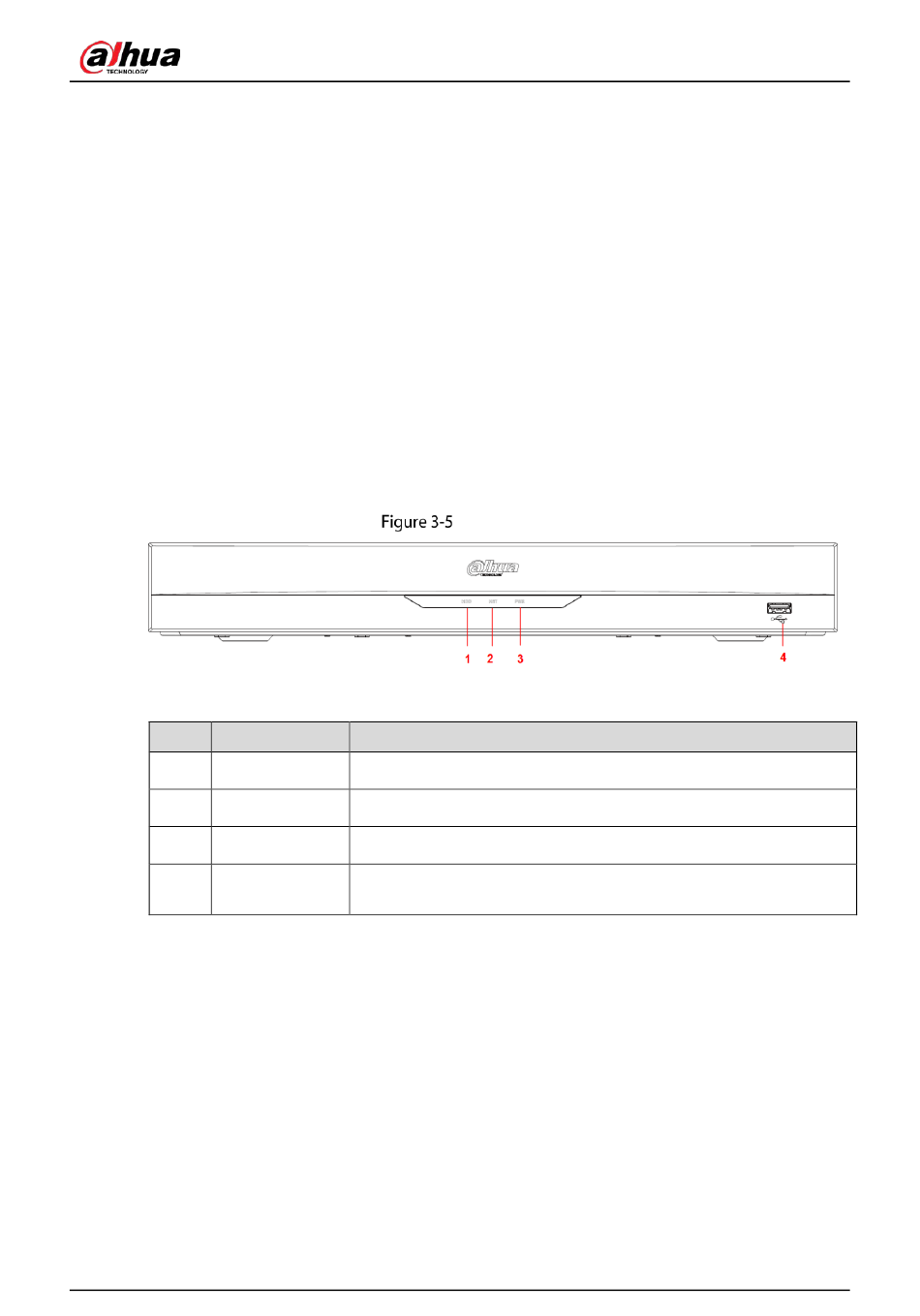

Table 3-5 Front panel description
Function
Glows when HDD status is abnormal.
Glows when network status is abnormal.
Glows when the power is connected properly.
Connects to peripheral devices such as USB storage device, keyboard,
and mouse.
