Preparation
Log in to the router to set the WAN port to enable the IP address to connect into the WAN.

Enable the UPnP function at the router.

Connect the Device with the LAN port on the router to connect into the LAN.

Select Main Menu > NETWORK > TCP/IP, configure the IP address into the router IP address

range, or enable the DHCP function to obtain an IP address automatically.
Procedure

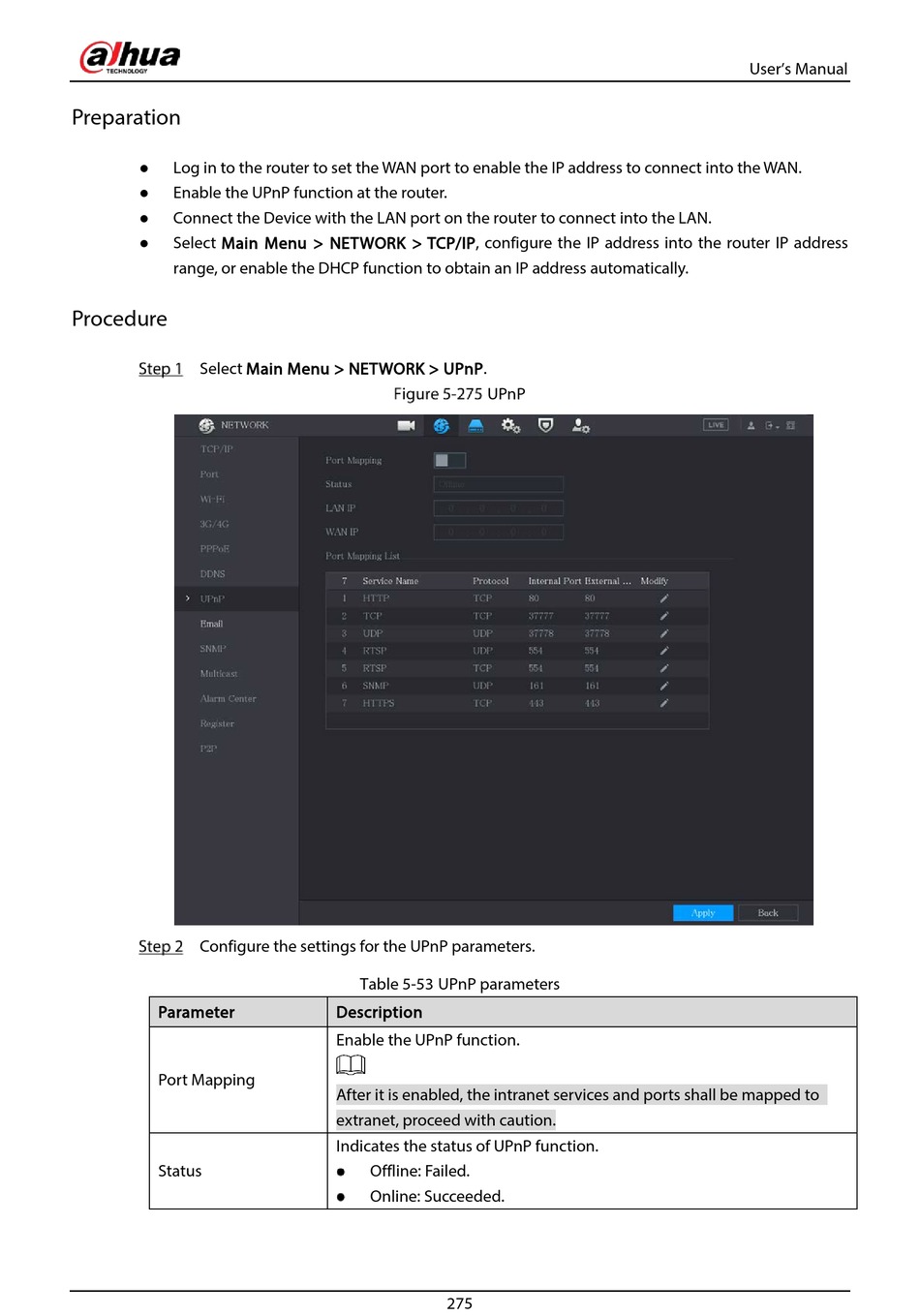

Select Main Menu > NETWORK > UPnP.
Configure the settings for the UPnP parameters.
Parameter
Port Mapping
Status
UPnP
Table 5-53 UPnP parameters
Description
Enable the UPnP function.
After it is enabled, the intranet services and ports shall be mapped to
extranet, proceed with caution.
Indicates the status of UPnP function.
Offline: Failed.
Online: Succeeded.
