Module programming

Refer to "LED diagnostics and troubleshooting" on page 15 for more information and for troubleshooting purposes.

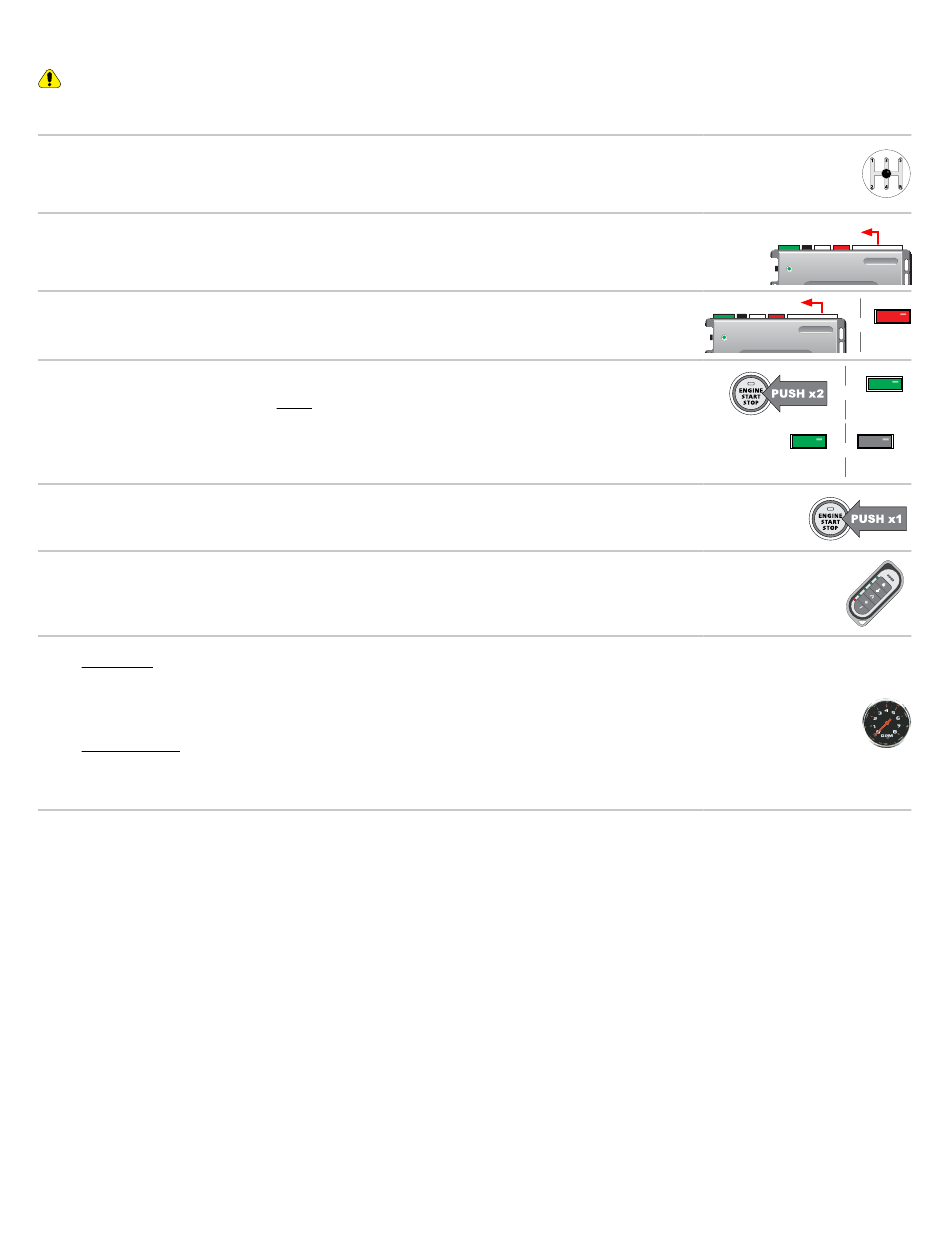

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
Connect all the harnesses to the Directed Digital Solutions, EXCEPT the 12-pin main power
2
harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Press the Push-To-Start button twice to turn ignition ON. The LED flashes green.
4
The LED turns ON solid green for 3 seconds, then turns OFF.
5
Turn vehicle ignition OFF once the module is successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please
6
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
DATA Tach: Firmware using DATA Tach, the tachometer is preprogrammed for the vehicle
and no further action is required. For instructions on how to adjust the tach or use Virtual
tach, refer to page 18.
7
Hardwire Tach: Firmware using the Violet/White Hardwired Tach input will require
programming. For instructions on how to program or adjust the tach or use Virtual tach, refer
to page 18.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
14
Connect all but the
12-pin harness
Must be connected LAST
&
Solid
&
Flashes
&
Solid x 3 secs Off
Pair
remotes*
Initialize
tachometer
Directed Digital Solutions MIT2
