Prorack PR3077 Manual

First Time Installation

• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
• Clean your roof racks prior to fi tting the Eye Bolt Kit.

Important Warning

• It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper
attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.
• You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and
periodically inspecting the products for adjustment, wear, and damage.
• If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not
thoroughly familiar with the installation procedures, you should have the product installed by a professional installer
such as a roof rack specialist.

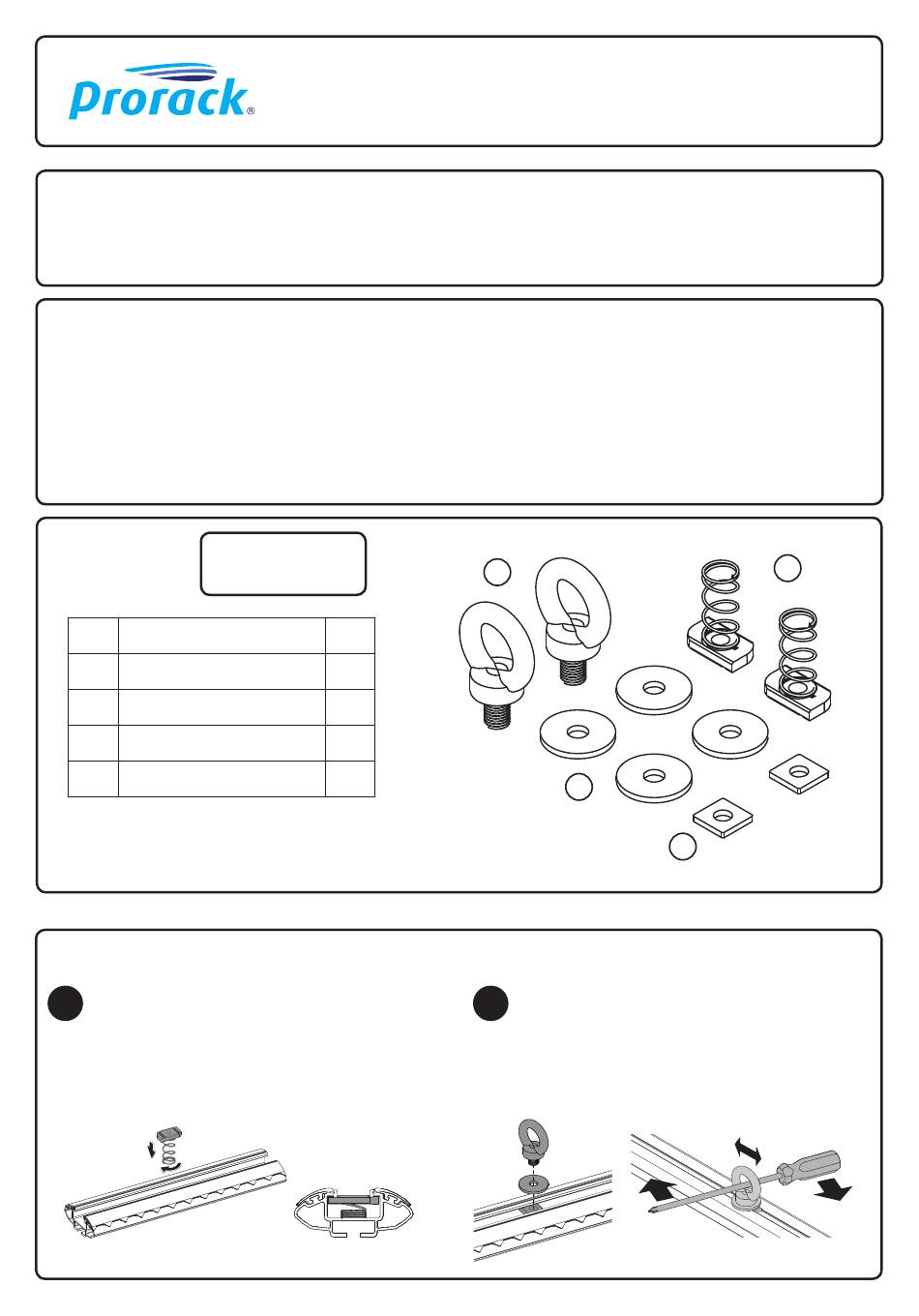

Kit Contents

Item Component
1 M10 Eye Bolt
2 M10 Washers
3 M10 Spring Nuts
4 M10 Square Nuts
PR3077
Installation with Prorack HD, Tradesman and other Heavy Duty Crossbars
1 Place a M10 Spring Nut into crossbar
channel. Position where you want the
accessory to be. Push down and twist
Spring Nut to lock into place.
09-13-504-Rev6

Tools Required

• Screwdriver
Qty
2
4
2
2
Eye Bolt Kit
1
2
2 Assemble Washer with Eye Bolt.
Position the Eye Bolt then tighten it using a
screwdriver to gain enough leverage to tighten
it to 8-10 Nm.
3
4
Page 1 of 2
