Prorack PR3075 Manual

First Time Installation
• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
• Clean your roof racks prior to fi tting the Ratchet Grabs.
Important Warning
• It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper
attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.
• You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and
periodically inspecting the products for adjustment, wear, and damage.
• If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not
thoroughly familiar with the installation procedures, you should have the product installed by a professional installer
such as a roof rack specialist.

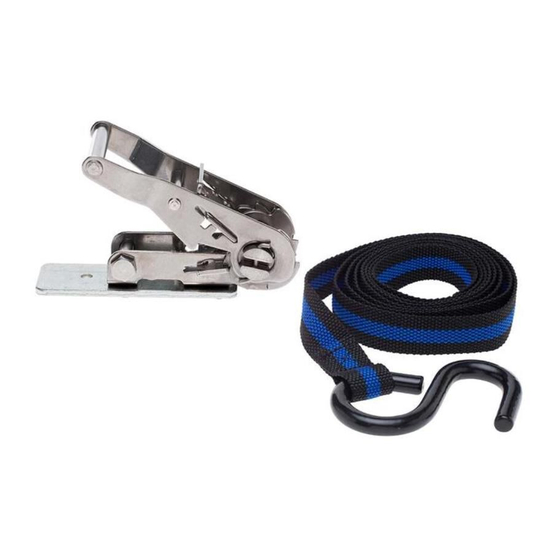

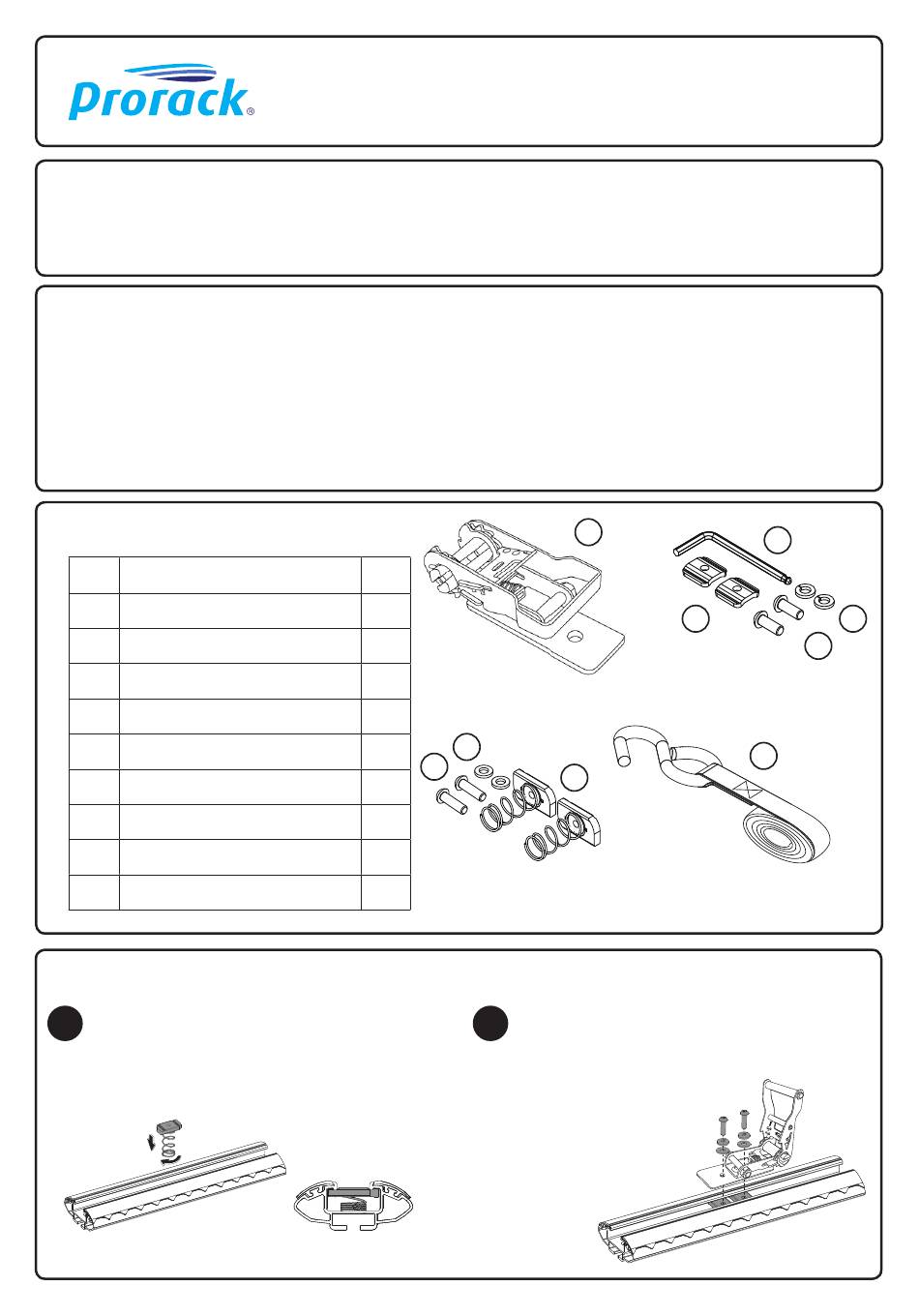

Kit Contents
Item Component
1 Ratchet Assembly
2 M6 Sliding Nut
3 M6 Spring Washer
4 Ball End Allen Key 4 mm
5 M6 Capscrew Button Head 16 mm
6 M6 Washer
7 M6 Capscrew Button Head 20 mm
8 M6 Spring Nut
9 Hook And Strap Assembly
Installation with Prorack HD, Tradesman and other Heavy Duty Crossbars
Place 2x M6 Spring Nuts into crossbar channel.
1
Position where you want the accessory to be.
Push down and twist Spring Nut to lock into place.
09-13-502-Rev5
Ratchet Grabs
Qty
1
2
2
1
6
2
7
2
2
2
1
Fasten Ratchet assembly onto the crossbar using 2x
2
M6 Capscrews 20 mm, 2x M6 Spring Washers, and
2x M6 Flat Washers.
Tighten all screws to 5 Nm
using the 4 mm Allen Key.
1
2
8
4
3
5
9
PR3075
Page 1 of 2
