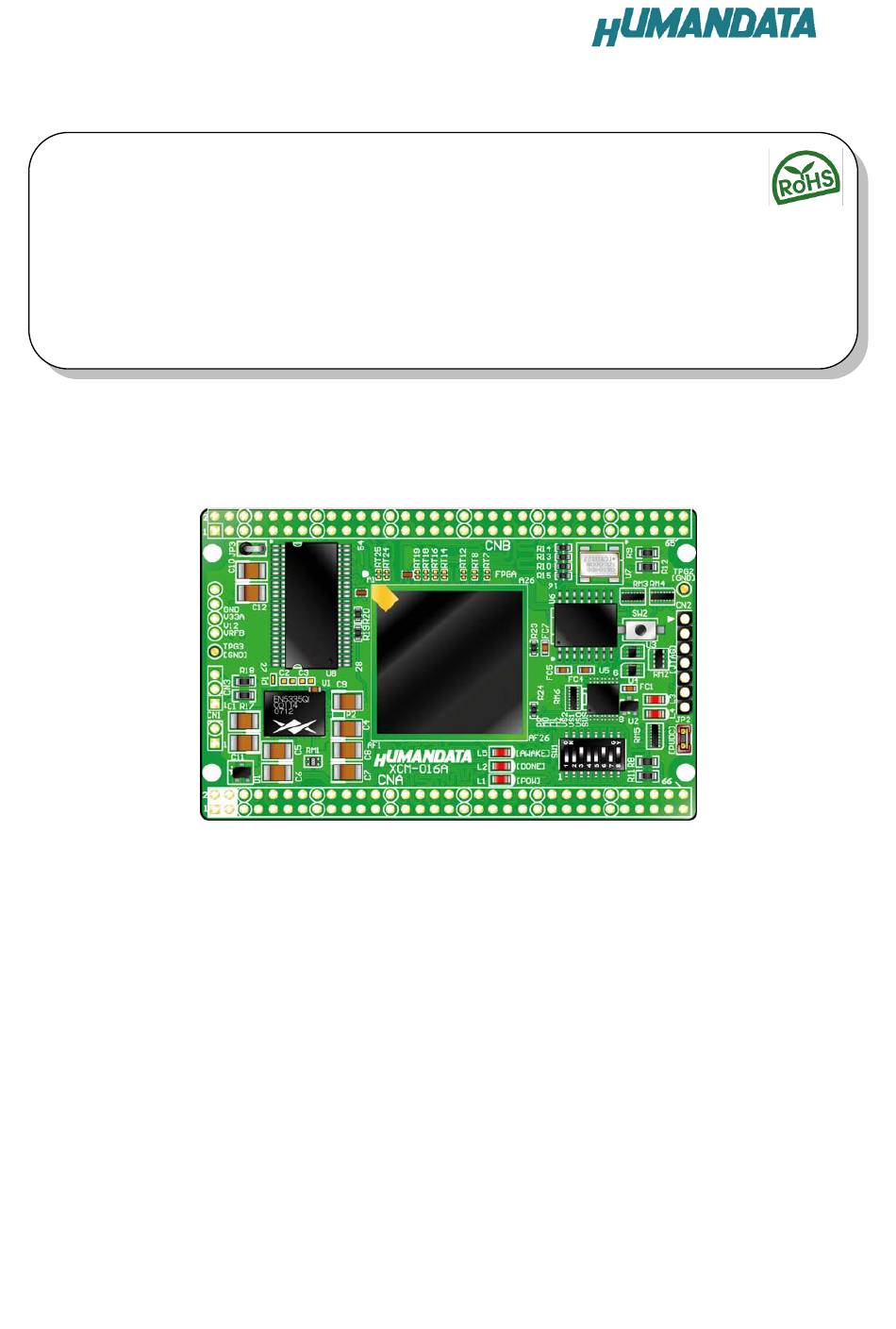

  • Page 1 Spartan-3A DSP FPGA Board XCM-016 Series User’s Manual HuMANDATA LTD.

  • Page 2: Table Of Contents

    Table of Contents Revision History ....................1 Introduction......................1 1. Specifications......................2 2. Overview........................ 3 2.1. Name of Parts ....................3 2.2. Block Diagram ....................4 2.3. Power Supply ..................... 4 2.4. JTAG Connector....................5 3. Configuration Switch..................... 6 4. FPGA Configuration ....................7 5.
  • Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.

  • Page 4: Revision History

    Initial release Introduction Thank you for buying our product XCM-016. This is an evaluation board equipped with a Xilinx FPGA Spartan-3A DSP, power, reset, and clock circuit and configuration device. It can provide you with very convenient and easy-to-use environment.

  • Page 5: Specifications

    1. Specifications Model Name XCM-016-1800A XCM-016-3400A FPGA XC3SD1800A-4FGG676C XC3SD3400A-4FGG676C Configuration Device M25P16 (ST, 16 Mbit) SDRAM MT48LC16M16A2P-75-D (MICRON, 256 Mbit) FRAM FM18L08-70-SG (RAMTRON, 256 kbit) User I/Os User Switch User LEDs On-Board Clock 50 [MHz] (External inputs are available) Status LEDs 3 (POWER, DONE, AWAKE) Power-On Reset 240 [ms] typ.

  • Page 6: Overview

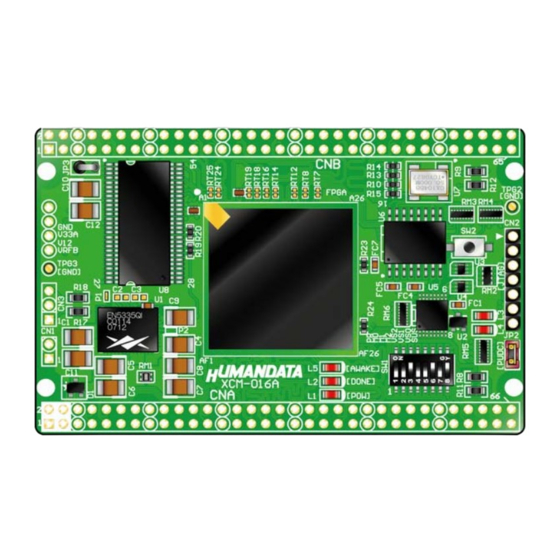

    2. Overview 2.1. Name of Parts User I/Os (CNB) Oscillator 50 MHz SDRAM 256 Mbit Config. Device FPGA JTAG Power & POR Status LED Config. Switch User I/Os (CNA) Component Side FRAM Solder Side XCM-016 Series v1.0...

  • Page 7: Block Diagram

    3.3 V INPUT External CLK User I/Os CNB Oscillator Config. Device M25P16 FRAM (16 Mbit) (256 kbit) SDRAM MULTI JTAG Spartan-3A (256 Mbit) PLEXER Buffer XC3DS 1800/3400A Power-On Reset -4FGG676C Config. Switch Typ. 240 ms User Switch Power Circuit 1.2V...

  • Page 8: Jtag Connector

    2.4. JTAG Connector This connector is used to configure the FPGA and program the configuration device in-system. Pin assignment is as follows. Signal Name Direction JTAG Pin VCC(3.3V) OUT(POW) You can use Xilinx download cable. Notice Please pay attention not to attach cables in reverse. XCM-016 Series v1.0...

  • Page 9: Configuration Switch

    2 - 4 : Mode Select Please see the table above. 5 - 7 : SPI Configuration Mode Please see a Spartan-3A data sheet for more details. 8 : Suspend Please see a Spartan-3A data sheet for more details. XCM-016 Series v1.0...

  • Page 10: Fpga Configuration

    4. FPGA Configuration To configure the FPGA via JTAG, please refer to the following steps. 1. Double-click [Configuration Target Device] in [Processes] tab. 2. Select [Configure devices using Boundary-Scan (JTAG)]. 3. Open the bit file you made. 4. Confirm [Verify] is not checked in [Device Programming Properties] dialog. 5.

  • Page 11: Configuration Rate

    6. Configuration Rate You can change the configuration rate. Here are steps to change the value. 1. Right-click on [Generate Programming File] menu in [Processes], then click [Properties…] 2. Change [Configuration Rate] value in [Configuration Options]. 7. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/XCM/xcm-016/ Circuit Schematic...
  • Page 12 Spartan-3A DSP FPGA Board XCM-016 Series User’s Manual Ver. 1.0 ..........Jul. 15, 2009 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-(0)72-620-2002 (Japanese) Fax: 81-(0)72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)

This manual is also suitable for:

Xcm-016Xcm-016-1800aXcm-016-3400a
