Spartan-6 FPGA Board
XCM-110 Series
User's Manual
Ver. 1.1
HuMANDATA LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCM-110 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Humandata XCM-110 Series

Summary of Contents for Humandata XCM-110 Series

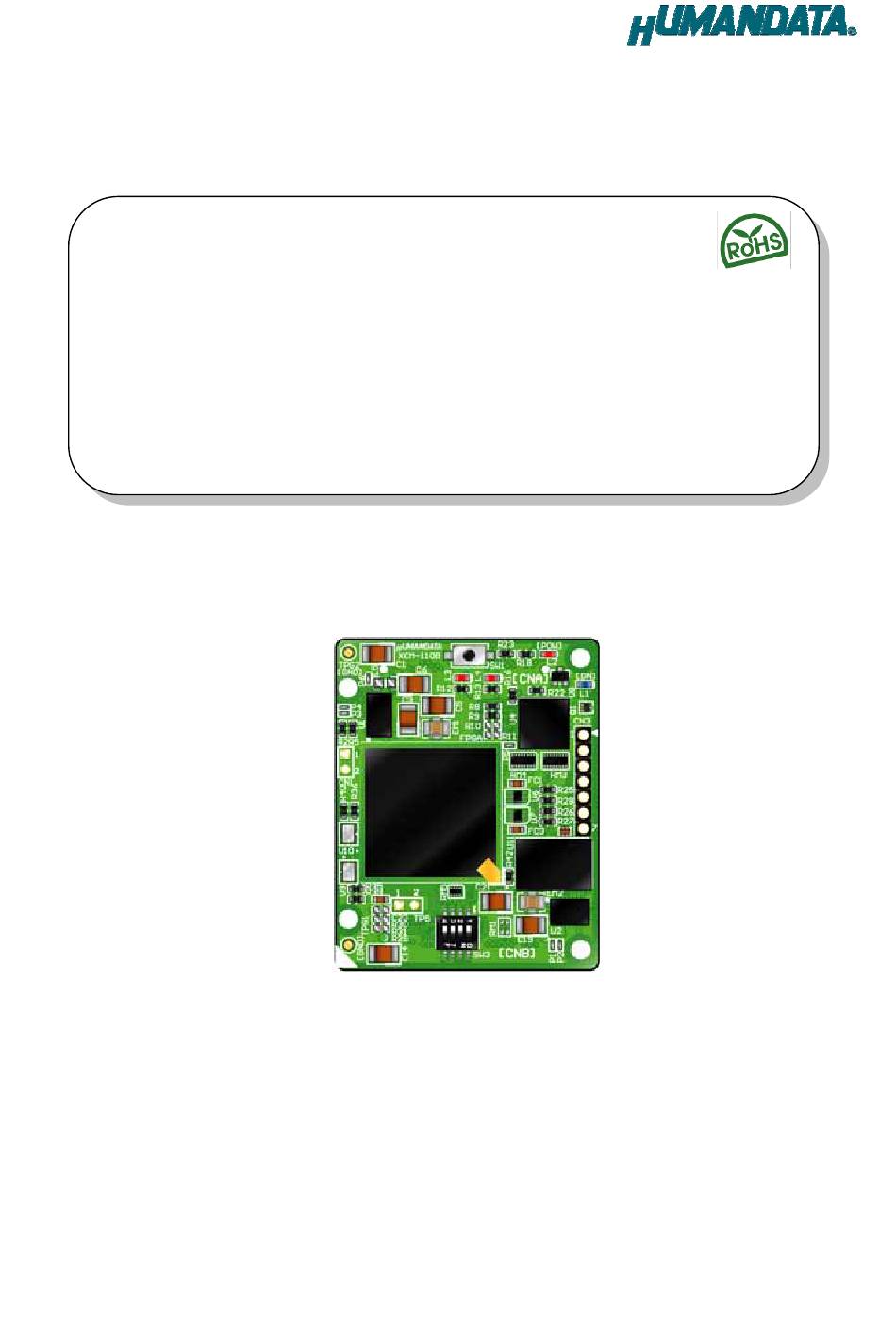

  • Page 1 Spartan-6 FPGA Board XCM-110 Series User’s Manual Ver. 1.1 HuMANDATA LTD.

  • Page 2: Table Of Contents

    Table of Contents Revision History ....................1 Introduction ......................1 1. Shared Pins [IMPORTANT] .................. 2 2. Specifications ......................3 3. Overview ........................ 4 3.1. Name of Parts ....................4 3.2. Block Diagram ....................5 3.3. Power Supply ..................... 5 3.4.
  • Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.

  • Page 4: Revision History

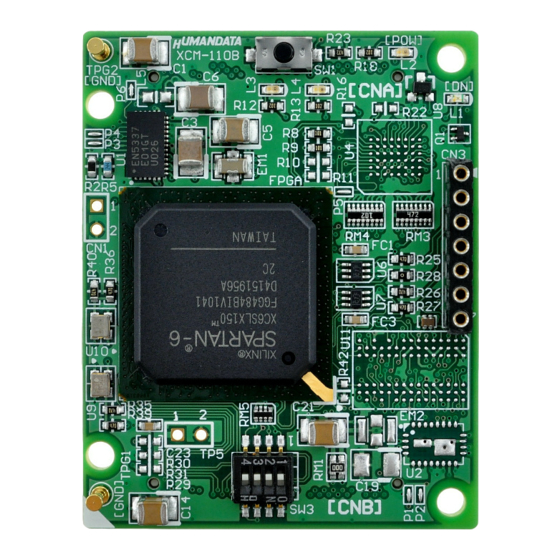

    This is an evaluation board equipped with a Xilinx FPGA Spartan-6, voltage regulators, configuration reset circuit, oscillators and configuration device. It can provide you with very convenient and easy-to-use development environment. * The explanations and screenshots given in this manual are based on ISE Version 12.2. XCM-110 Series v1.1...

  • Page 5: Shared Pins [Important]

    To prevent these pins from being shorted out, it is recommended to set them as “Float” in advance. Please refer to the following steps and check the “Unused IOB Pins” setting. 1. Right click [Generate Programming File] and open [Process Properties] window. 2. Confirm [Unused IOB Pins] in [Configuration Options]. XCM-110 Series v1.1...

  • Page 6: Specifications

    SIL 7-pin socket, 2.54 [mm] pitch Status LEDs Power (red) x1, Done (blue) x1 SIL 7-pin header (Mounted) x1 Accessories FX10A-80S/8-SV(71) (Hirose) x 2 RoHS Compliance * There may be cases that these parts and specifications are changed. XCM-110 Series v1.1...

  • Page 7: Overview

    3.1. Name of Parts User Switch POWER LED User LEDs DONE LED MRAM Oscillator 30 MHz * unmounted for LX75 Oscillator 50 MHz JTAG DDR2 SDRAM Config. Switch Component Side User I/Os (CNA) Config. Device User I/Os (CNB) Solder Side XCM-110 Series v1.1...

  • Page 8: Block Diagram

    The external power supply should be sufficient and stabilized. Please do not apply over 3.3V voltage. VCCIO in BANK B is not connected to 3.3V. Please input given voltage from CNB. For more details, please refer to circuit schematics and FPGA data sheet. XCM-110 Series v1.1...

  • Page 9: Clock

    JTAG connector is used to configure the FPGA and program the configuration device in-system. Pin assignment is as follows. You can use Xilinx download cable. Pin No. Signal Name Direction VCC (3.3V) OUT (POW) Notice Please pay attention not to attach cables in reverse. XCM-110 Series v1.1...

  • Page 10: Configuration Switch (Sw3)

    Generally, users do not need to be attentive to mode setting for JTAG configuration. But for this product, it is recommended to set the mode as shown above. HSWAPEN You can set status of user I/O pins before FPGA configuration. ON : Pull-Up OFF : Floating (No Pull-Up) XCM-110 Series v1.1...

  • Page 11: Fpga Configuration

    Assign the mcs file to a Flash icon and choose [SPI PROM – M25P32] or [SPI PROM – M25P64] for device type, then right click and select a command. Please set FPGA configuration mode to [Master Serial/SPI] mode. XCM-110 Series v1.1...

  • Page 12: Additional Documentation And User Support

    6. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/XCM/xcm-110/ Circuit Schematic Pin List Dimensional drawing Net List … and more. XCM-110 Series v1.1...
  • Page 13 Spartan -6 FPGA Board XCM-110 Series User’s Manual Ver. 1.1 ..........Oct. 28, 2011 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-(0)72-620-2002 (Japanese) Fax: 81-(0)72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)
