DC-D4236WRX(-A), DC-D4236HRX(-A)
1

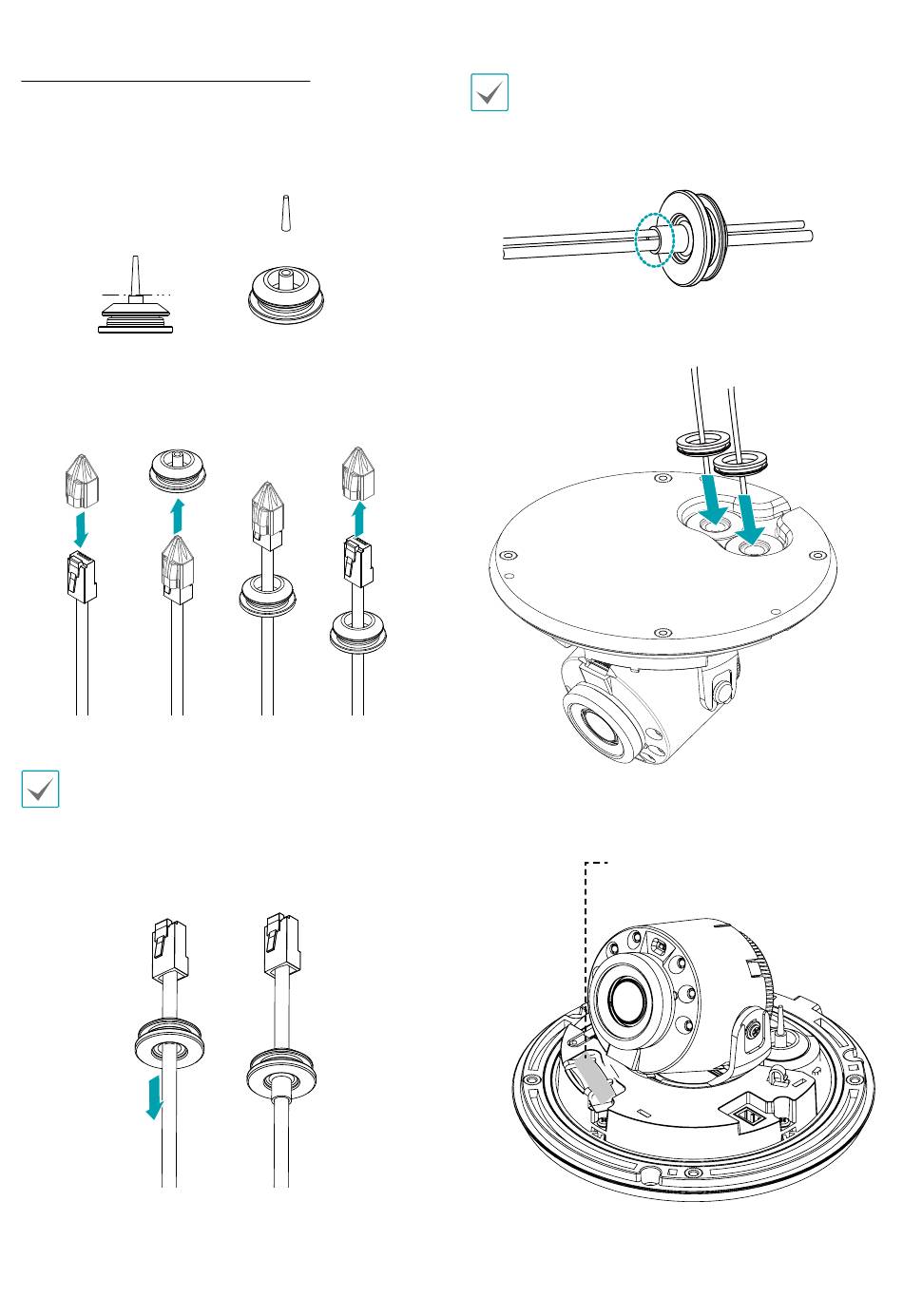

Detach the protrusion part from the cable rubber
along the dotted line.
2
Make the LAN cable go through the cable rubber
using the protect connector.
It is recommended to use lubricant to move the LAN
cable smoothly.
3
Pull the cable slightly and arrange the rubber as
shown below.
To pass through a thin cable or more than two cables,
it is advised to finish it using silicon to make sure
waterproofed perfectly. (Silicon finishing part — refer
to the bottom image.)
4
Assemble the cable rubber to the bottom cover.
5
Attach the enclosed desiccant in the bottom to
prevent moisture.
Desiccant
