Part 1 – Introduction
DC-D4236RX(-A)
1
2
3
7
8
10
DC-D4236WRX(-A), DC-D4236HRX(-A)
1
2
3
5
6
5
9
0
7
5
5

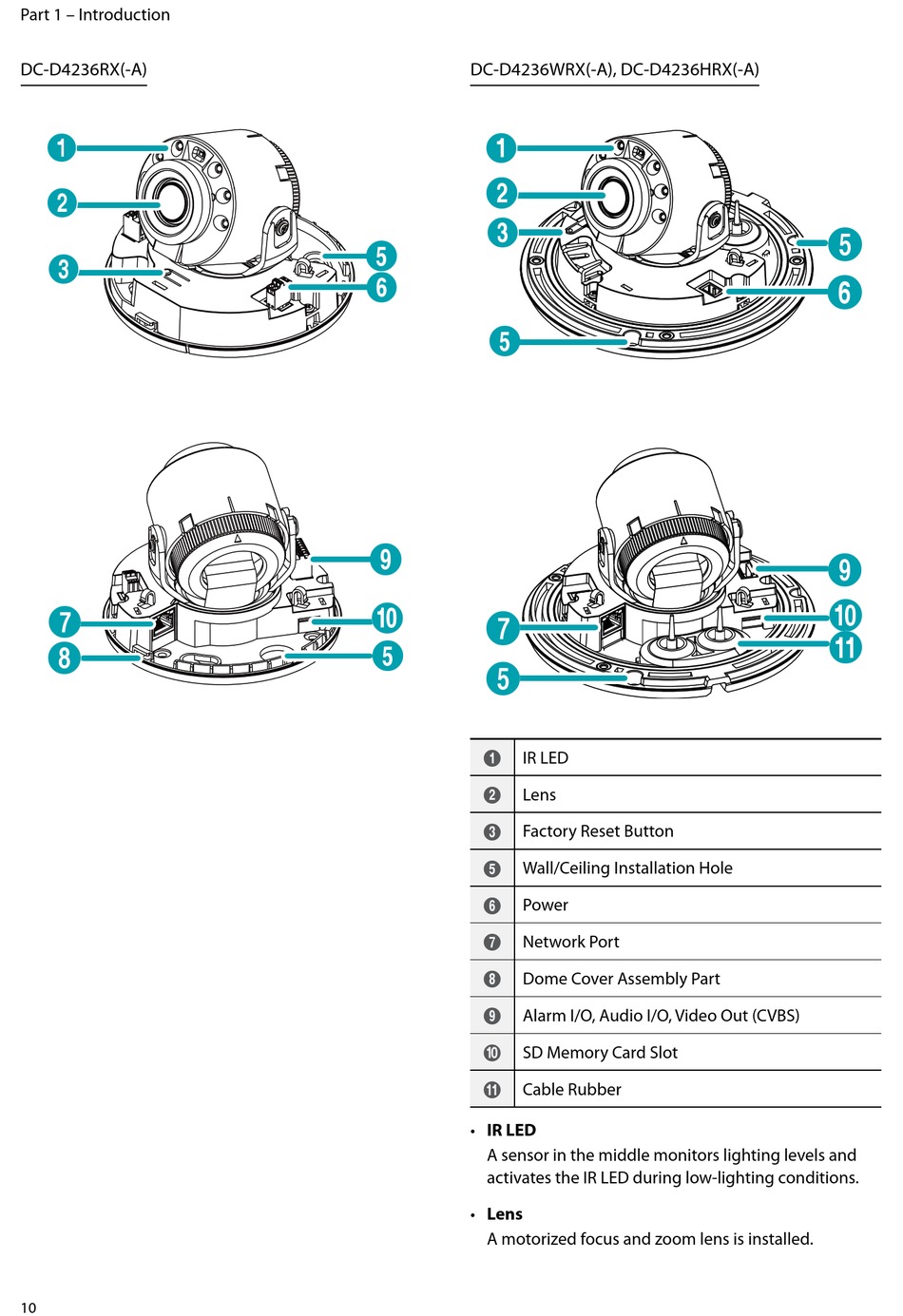

IR LED
1
Lens
2
Factory Reset Button
3
Wall/Ceiling Installation Hole
5
Power
6
Network Port
7
Dome Cover Assembly Part
8
Alarm I/O, Audio I/O, Video Out (CVBS)
9
SD Memory Card Slot
0
Cable Rubber
!
• IR LED
A sensor in the middle monitors lighting levels and
activates the IR LED during low-lighting conditions.
• Lens
A motorized focus and zoom lens is installed.
