• Factory Reset Button
Restores the camera's default factory settings. For
more information, refer to the Factory Reset.
• Wall/Ceiling Installation Hole
Used to screw the camera in place on a wall or a
ceiling.
• Power (DC12V)
Connect this to the power adapter.
• Network Port
Connect a network cable with an RJ-45 connector to
this port. If using a PoE switch, you can supply power
to the camera using an Ethernet cable. For more
information on PoE switch use, refer to the switch
manufacturer's operation manual. You can configure,
manage, and upgrade this camera and monitor its
images from a remote computer over the network.
For more information on network connection setup,
refer to the IDIS Discovery operation manual.
The table below shows the network cable
specifications.
<The network cable specifications>
Item Content
Connector RJ-45
Ethernet 10/100 Base
UTP Category 5e or
Cable
higher
Maximum
100m
length
IEEE 802.3af, Class 3
PoE
IEEE 802.3af, Class 2
• Dome Cover Assembly Part
The dome cover rotates on the bottom cover and is
tightened.
• Audio DC-D4236X/DC-D4236RX/DC-D4236WRX/DC-
D4236HRX models only
- O (Out): Connect an amplifier to this port (line
out). This device does not feature a built-in audio
amplifier unit and therefore requires the user to
purchase a separate speaker system with a built-in
amplifier.
- I (In): Connect an audio source to this port. (Line in)
• Alarm

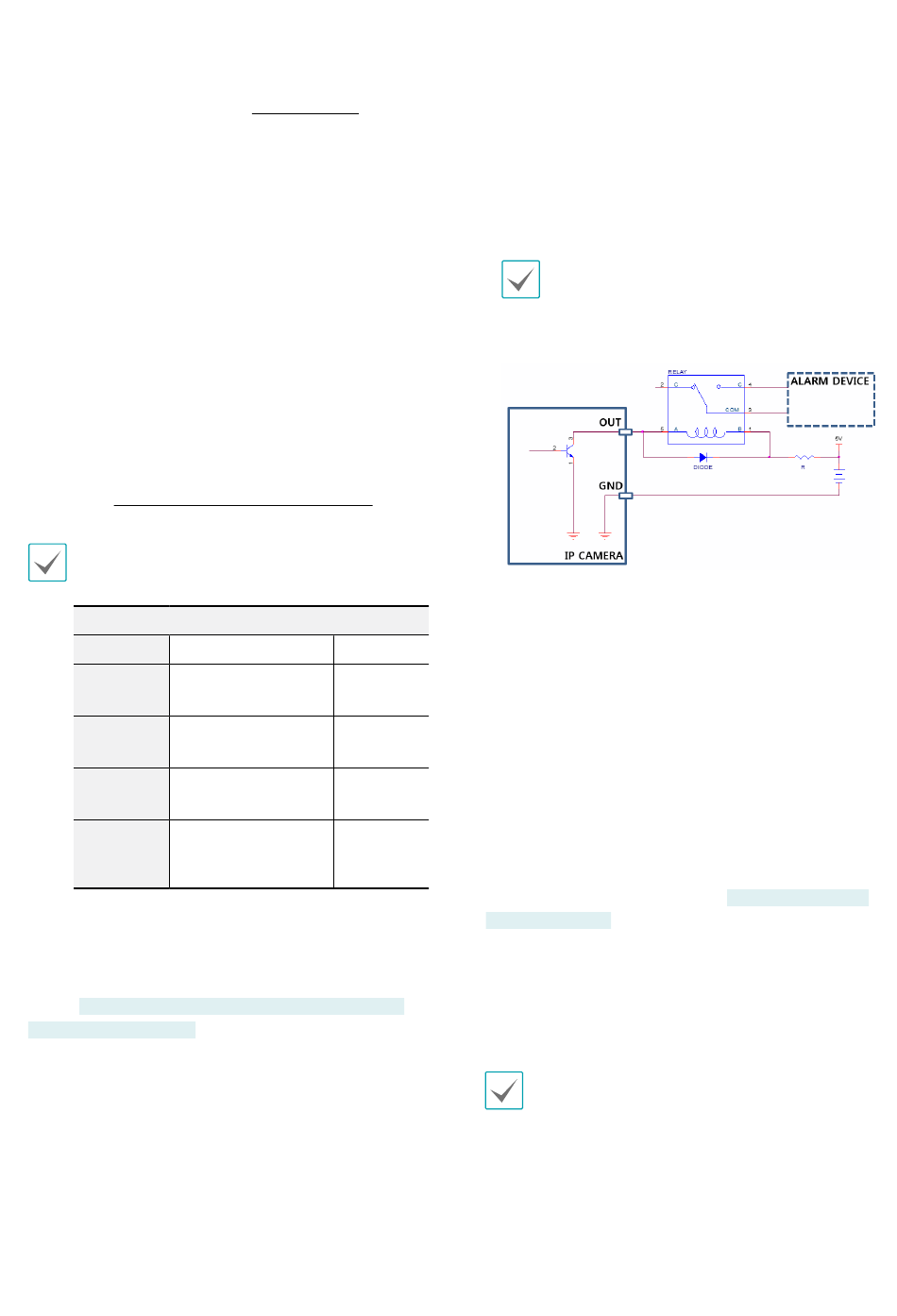

- O (Out): It is the BJT (Bipolar Junction Transistor)
- open collector output. If the voltage and current
exceed the specification limit (Max. Load: 30mA,
Max. Voltage: 5VDC), the product could be
damaged. When connecting the device which
exceeds the specification limit, refer to the picture
(circuit) below.
- I (In): Connect an alarm-in device to this port.
Note
(Mechanism: Choose between an NC (Normally
Closed) type or an NO (Normally Open) type) →
Connect a mechanical or electrical switch to the
10/100
alarm in port and the GND (ground) connector.
Mbps
Alarm in range is 0V to 5V. In order to detect alarm
input from an electrical switch, the signal must be
higher than 4.3V from an NC switch or less than
0.3V from an NO switch and must last for longer
than 0.5 seconds.
• Video Out (CVBS)
Go to Remote Setup (System > General) and choose
a video out signal. (NTSC or PAL)
D4236RX(-A) only
• SD Memory Card Slot
Used to insert a micro SD memory card into the
camera. (An SLC (Single Level Cell) or MLC (Multi Level
Cell) card by San Disk or Transcend is recommended)
If used with an external inductive load(e.g. relay),
a diode must be connected in parallel with the
load for protection. Otherwise, the product could
be damaged.
• Do not remove the SD memory card while the
system is in operation. Removing the card while
the system is in operation can cause the system
to malfunction and/or corrupt data stored on the
SD memory card.
• An SD memory card is a consumable product
with a finite service life. Prolonged use will
damage the card's memory sectors and result
in data loss or memory card failure. Test the SD
memory card regularly and replace it whenever
necessary.
