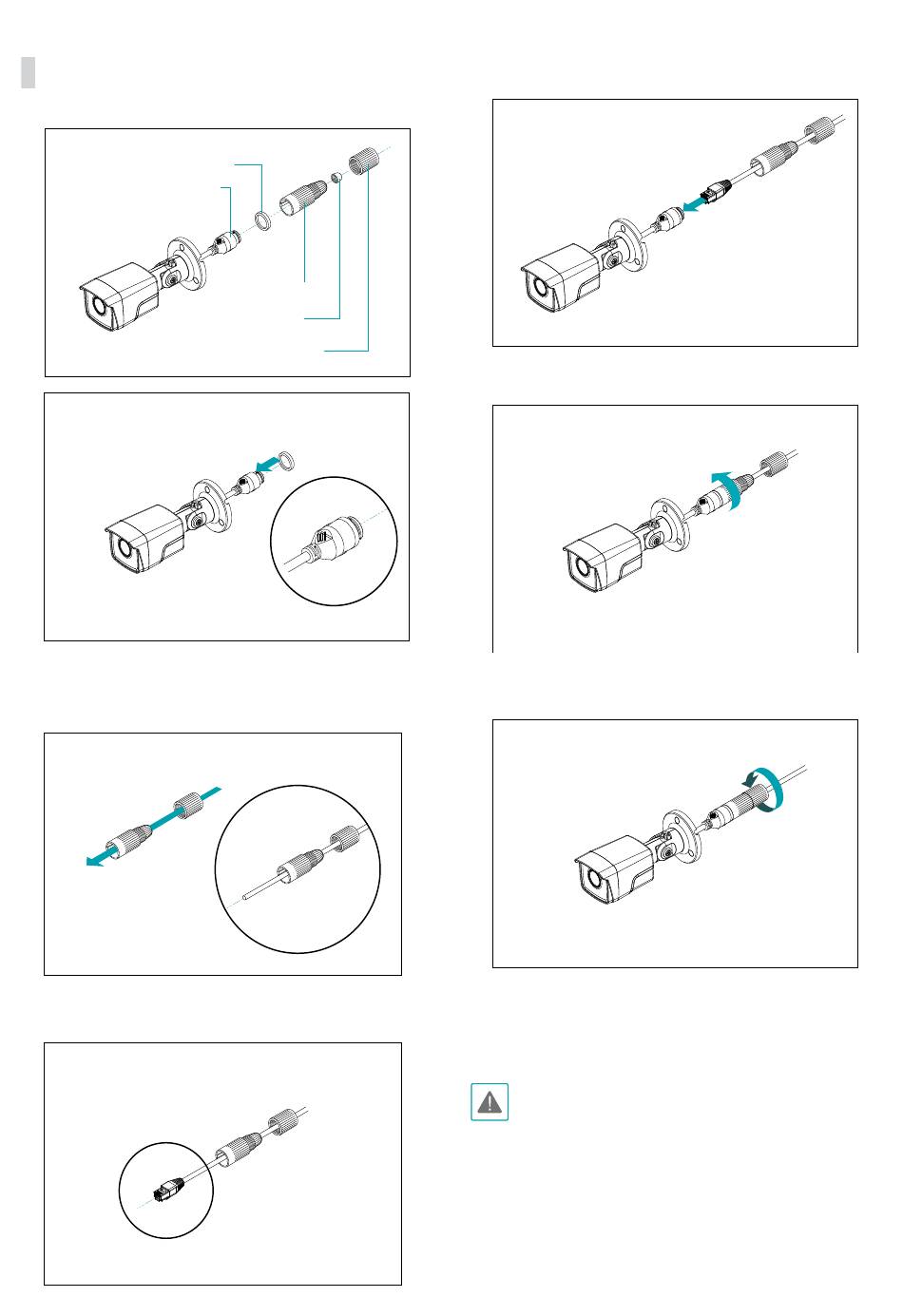

Waterproof Cable Installation

RJ45 waterproof rubber ring
RJ45 modular jack
RJ45 waterproof rubber ring
RJ45 modular jack
RJ45 waterproof rubber ring
RJ45 modular jack
1
1
1
2
1
Insert a round rubber ring (silicone rubber) into the
RJ45 jack.
2
2
3
2
Insert the network cable into the waterproof cap,
3
rubber bushing, and waterproof cap body in order.
3
4
4
4
RJ45 connector
protect cover
cable waterproof rubber ring
(The waterproof rubber ring is
fastened to the connector protect cover.)
RJ45 connector back cover
RJ45 connector protect cover
cable waterproof rubber ring
(The waterproof rubber ring is fastened to the connector protect cover.)
RJ45 connector protect cover
RJ45 connector back cover
cable waterproof rubber ring
(The waterproof rubber ring is fastened to the connector protect cover.)
RJ45 connector back cover
3
3
Plug in the network cable.
4
4
4
4
Connect the plug terminal to the RJ45 jack.
5
5
5
6
5
Push the waterproof cap body and cap into the RJ45
6
jack and rotate it.
6
6
Lock the waterproof cap into the waterproof cap
body.
Not pulling the cable back may cause water to seep in
and damage the product.
