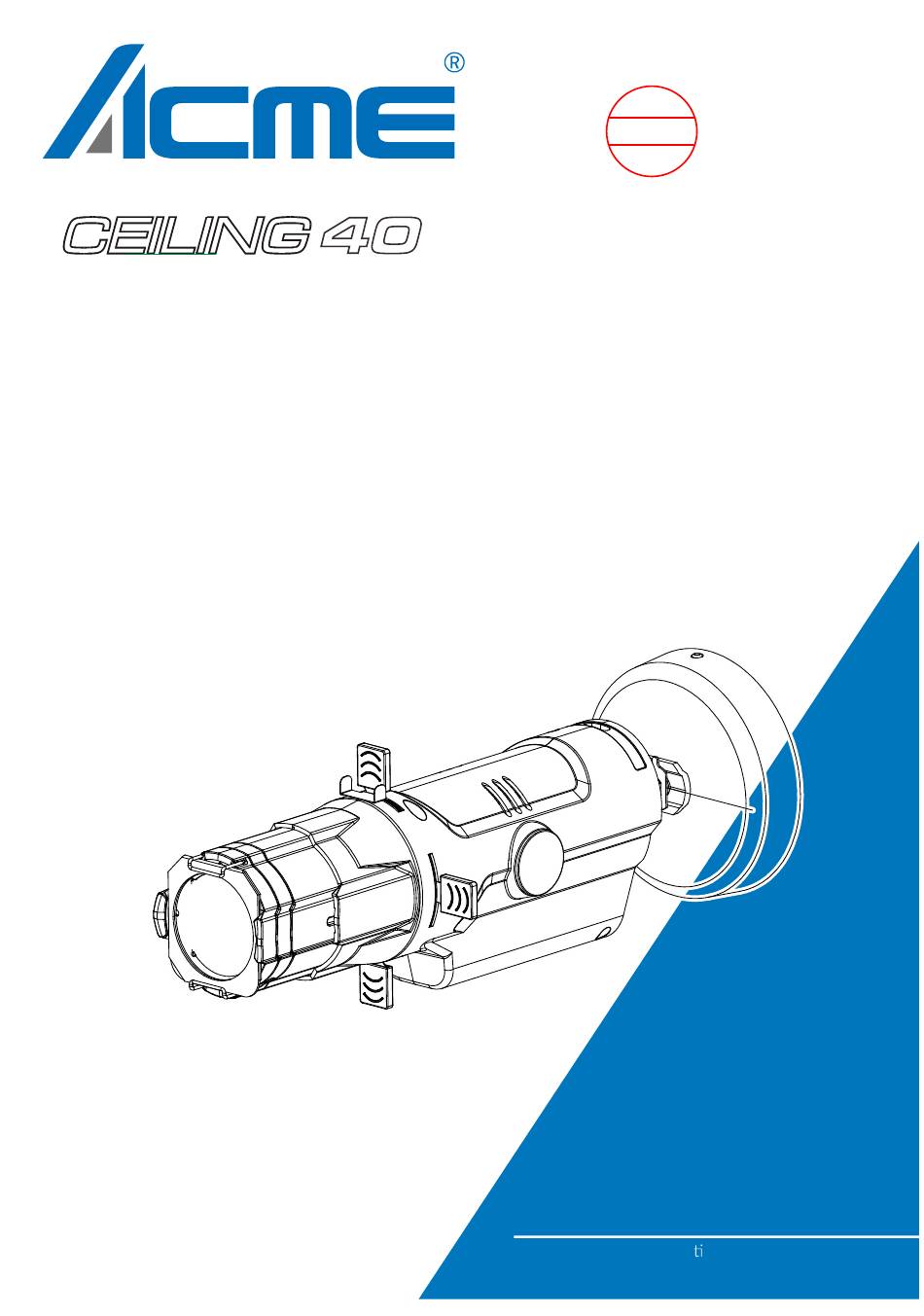

- Page 1 审核 2018.06.16 受控正本 E-40 C CW DXX E-40 C WW DXX User Manual Please read the instruc on carefully before use...
-
Page 2: Specification
Feature: Light Source: 1 x 36W cool white LED (E-40C CW) 1 x 36W warm white LED (E-40C WW) 1 x 12W cool white LED (E-10C CW) 1 x 12W warm white LED (E-10C WW) Color temperature: 3200±150K (E-10C/40C WW) 5600±150K (E-10C/40C CW) ... -
Page 3: Installation
How To Change The Gobo At first, put the gobo by hand as the arrow into the gobo gel splint, and insert the gobo gel splint into the slot of the unit, please turn the hand knob to left or right in order to take out gobo gel splint. Installation hole Fix the fixing plate on the ceiling via screws , make sure the locating... - Page 4 Hang up the fixture, then rotate the fixture to the right side until the locating pin is inserted into the hole. When remove the fixture, press on the locating pin, then rotate the fixture to the left side until the locating pin is in the accurate area, take down the fixture .
-
Page 5: Troubleshooting
Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: The fixture does not work, no light Check the connection of power and main fuse. Measure the mains voltage on the main connector. ... - Page 7 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009+A1:2012; EN55103-2: 2009; EN61000-3-2: 2014; EN61000-3-3: 2013. & Harmonized Standard EN 60598-1:2015;...
- Page 8 Innovation, Quality, Performance...
