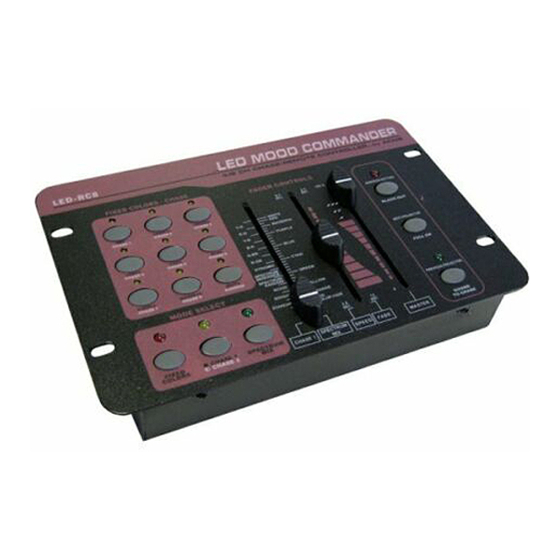

ACME LED-RC8 Instruction Manual

1. General Instructions

 A profession remote controller with 4Ch. /8Ch. Switchable
 Can connect witch LED-CC or LED-PC300/100 to control passive LED fixtures
 9 different hold-color buttons for instant colors
 12 different color chases triggered by music
 32 different mix colors, including color fade
 Speed and dimmer adjustable by fader
 Full on and blackout functions
 Power supply: DC 9V 300 mA
 Dimension: 180X 130 X 50 mm
 Weight: 1 kg

Function Instructions:

Mode select Use to select Fixed Color / Chase 1 / Chase 2 / Spectrum mix mode
1. In Fixed Color mode, use to select color on Red /Orange / Yellow / Green /
Fixed color
/ chase
2. In Chase 2 mode (the LED blinking), use to select 8 chase or random chase.
In Chase 1 (the LED on) mode, use the fader to select color chases on
Standard chase / Bright chase / Mood chase / spectrum random chase /
Chase 1 fader
Spectrum sequence chase / Dynamic chase / Red-Green+ Blue / Green-Red +
Blue / Blue-Red / Yellow-Blue / Red-Green / Yellow-Green
Spectrum Mix
Use to select 32 spectrum mix colors in Spectrum mix mode.
fader
Speed fader Use to adjust chase speed in the range of 0.1 to 2.5 seconds
Fade Time
Use to adjust fade time. Fade time is amount of one color to fade in or fade out
fader
Master fader Use to dimmer / shutter the fixture
Black out Blackout the fixture
Full on All lighting effect at once
Sound to
Use to receive audio signal for sound activated
chase
cyan / Blue / Purple / Magenta /White
