- Page 1 Carry Flash Series USB Drive/ USB-HDD UB600 Mini USB Duplicator User Guide V 1.0...
-
Page 3: Table Of Contents
§ Content Index 6.3.3 Setup Range 6.3.4 Setup Error Limit Content Index 6.4 Quick Erase Disclaimer of Warranties 6.5 Full Erase Before You Start 6.6 DoD Erase 6.7 System Update Product Introduction ① 6.8 Calc. Checksum 1. Overview 7. System Setup Function 2. -
Page 5: Disclaimer Of Warranties
§ Disclaimer of Warranties All UREACH flash duplicators are made specifically for data backup with legal authorities from copyright owners. Any unauthorized action of copyright is strictly prohibited, and UREACH-INC disclaims all warranties or representations of illegal actions by users. UREACH-INC also disclaims any liability for any of losses or damages due to not be able to perform its undertakings or provide any of the services attributable to any events or circumstances beyond our control. -
Page 6: Before You Start
§ Before You Start ⌘ Important Notice ● Read the complete operation instruction carefully contributes to better operation. ● Make sure the source device is correct and workable. ● To guarantee data consistency, strongly suggest the capacity of source and targets should be the same. -
Page 7: ① Product Introduction

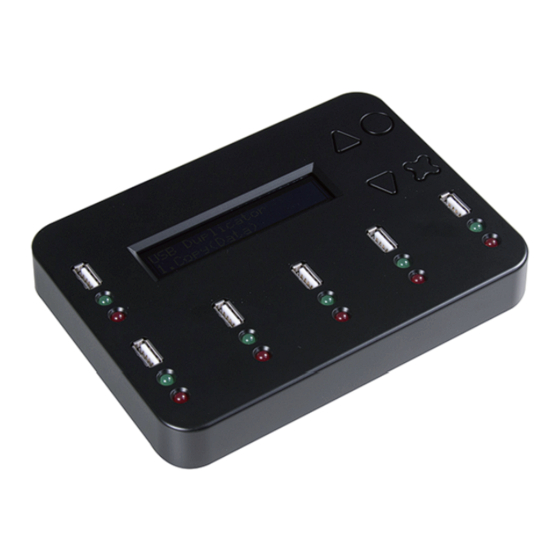

① Product Introduction 1. Overview The UB600 USB duplicator is a stand alone, high speed and convenient equipment for easily copy data anytime and quickly check Flash device's quality. The checking capability assists you to find out defective Flash device efficiently, like Capacity Check enables you to find out the real capacity of Flash device;... -
Page 8: Applicance
Power Adapter Power Cord 4. Applicance USB drive fully plugged USB-HDD 5. Definition Flash/Flash Media/Media Flash media including SD/microSD memory card, Compact flash card, and USB flash drive. USB-HDD USB Drive Capacity The maximum data amount can be contained in a Flash memory card. Capacity Total Content Size... -
Page 9: ② Basic Instruction
Port A mechanical construction used to connect two applications ② Basic Instruction 1. Front View ▲ Up ● OK X ESC ▼ Down Signal LED Green:pass Red:fail USB source port USB target port... -
Page 10: Back View
2. Back View Power Switch and Plug of the Power Supply Power supply Power switch 3. LCD Configuration Total Content Size Copy progress Copied Size Time (mm:ss) 4. Operation Guide Steps to Copy Step 1-Plug-in the flash source. - Page 11 Step 2-Plug-in the flash targets. Step 3 The LCD will show the number of flash targets which are ready to copy. Step 4 Press <OK> button to start copy. Step 5 When copy is finished, the LCD will show the result, quantity of copy passed and copy failed.
- Page 12 Note ❶ When copy is processing, the green LED will flash. When the copy has finished, the green LED will stop flashing but will remain illuminated. If an error occurs, the red LED will illuminate. Green Light Red Light ❷ DO NOT take out the card during copying process. ❸...
-
Page 13: ③ Function Table
③ Function Table Function Description 1. Copy USB/SD/microSD/CF flash copy. This option makes bit-for-bit comparison between the source and all other copied flash 2. Compare cards. This option will make a copy first and then compare the copied Flash media with the 3. - Page 14 7.1 Start-up Menu To select which function is shown first when the system is turned on. 7.2.1 System and Files The system can automatically detect the format FAT16, 32/ NTFS/ Linux (ext2, ext3, ext4) and only copy the data area. 7.2 Copy Area 7.2.2 Whole Media The system will copy the whole content of flash including the...
-
Page 15: ④ Function Introduction
④ Function Introduction 1. Copy There are two kinds of copy modes, which are Asynchronous Copy and Synchronous Copy. The system will check the content size of the source before executing "copy" function. If the source content size is less than system's buffer memory, it will automatically start asynchronous copying. -
Page 16: Compare
3 When finishing copying, the LCD will show the total time of copy, quantity of pass and quantity of copy fail. Copy area setting Copy Area 7.2 Copy Area. ➡ Select System and File or Whole Media. Copy mode setting Copy mode 7.5 Asynchronous. -
Page 17: Capacity Check
4. Capacity Check This function can check the real capacity of Flash media. 1 Plug the Flash media into slot and select function "4.Capacity Check", then press OK" button. About 2~3 seconds, the system will find out its exact capacity. "... -
Page 18: System Information
Port Number USB total capacity File content size Device Format Note Executing this function will not delete the content or format of flash media. USB duplicator model 5.2 System Information System firmware This function will show information of the duplicator system, including model number and software version. -
Page 19: Fat Format
Note The source port (port#1) will not execute any formatting, because this function will delete the data of the flash media. 6.1.2 FAT Format Format any flash media to be FAT16. 6.1.3 FAT32 Format Format any flash media to be FAT32. 6.2 Measure Speed This function can measure the "read"... -
Page 20: H3 Safe 100
6.3.1 H3 Safe 100% This function is to check the flash's quality by reading the flash media. After executing the function, it will show the volume of bad sectors and also the reading speed of the flash device. good sector Test capacity Reading speed Note... -
Page 21: Setup Range
6.3.3 Setup Range The function is to set the % of the flash which you would like to check for its quality. Using button to setup the flash examine area from 1% to 100%. 100% means to ▲▼ check the whole Flash, it will take more time. 6.3.4 Setup Error Limit This function is to set tolerance degree of error, by setting sector/KB/MB/GB, when checking the flash. -
Page 22: Dod Erase
6.6 DoD Erase This is to comply with the U.S.A. Department of Defense (DoD 5220) standard to fully erase the Flash three times bit by bit to guarantee the data was deleted. Note This function will damage the data in flash, please make sure you have backup all important data before using this function. -
Page 23: System Setup Function
• After finishing calculating, there will be an 8-digit value produced. 7. System Setup Function 7.1 Start-up Menu You can select which function is shown first when the duplicator is turned on. 7.2 Copy Area 7.2.1. System and Files This is also called "quick copy" mode. The system will automatically analyze the source flash card's file format. -
Page 24: Button Beep
Note When doing whole media copy, the duplicator will not care the capacity difference between source and targets. Hence, you should be careful about the data in the target devices after copying. 7.3 Button Beep Choose whether to hear a beep or not when a button is pressed. 7.4 Asyn Hold time This is to set the time to exit asynchronous copying when you've temporarily finished copying and you've pulled out all the devices, but you haven't exited the copying job. -
Page 25: Asynchronous
99%X2GB~101%X2GB) ➡ 1.98GB~2.02GB Source Target tolerance setting:±1% Real capacity 2GB 2.02GB (2GB+1%) 1.93GB (2GB-1%) ● No limit: there is no any limit on capacity between the source and target. Please be noted that, under this model, if the data size in the source is over the capacity of target, it might lead to incomplete copy. -
Page 26: Working Mode
7.10 Working Mode The working mode has 5 options to select the transmission speed : ● Slowest Mode ● Slower Mode ● Normal Mode (Default setting) ● Faster Mode ● Fastest Mode Please make sure your Flash media has good quality and support faster mode. If you are not confident on the flash quality or you find a high failure rate on copy or compare. -
Page 27: ⑤ Faq
⑤ FAQ Q1: Can I use UB600 to copy other Flash devices such as micro SD? A1: Some users may use a USB card reader to copy other different types of Flash device, such as SD, CF, and Memory Stick etc. Due to the quality and stability of USB card reader in market are different, a poor-quality card reader may damage the system and the quality of copy. -
Page 28: Specification
⑥ Specification UB600 Model 1:5 (6-port) Target Stand-alone operation Operation USB1.1 / USB2.0 / USB3.0 Support media USB drive / USB-HDD SD / SDHC / Micro SD / MMC / Mini SD / CF Support media via adapter (by USB multimedia card reader) Data Area only, Whole media Copy mode Device Info., Capacity Check, Measure Speed,...
