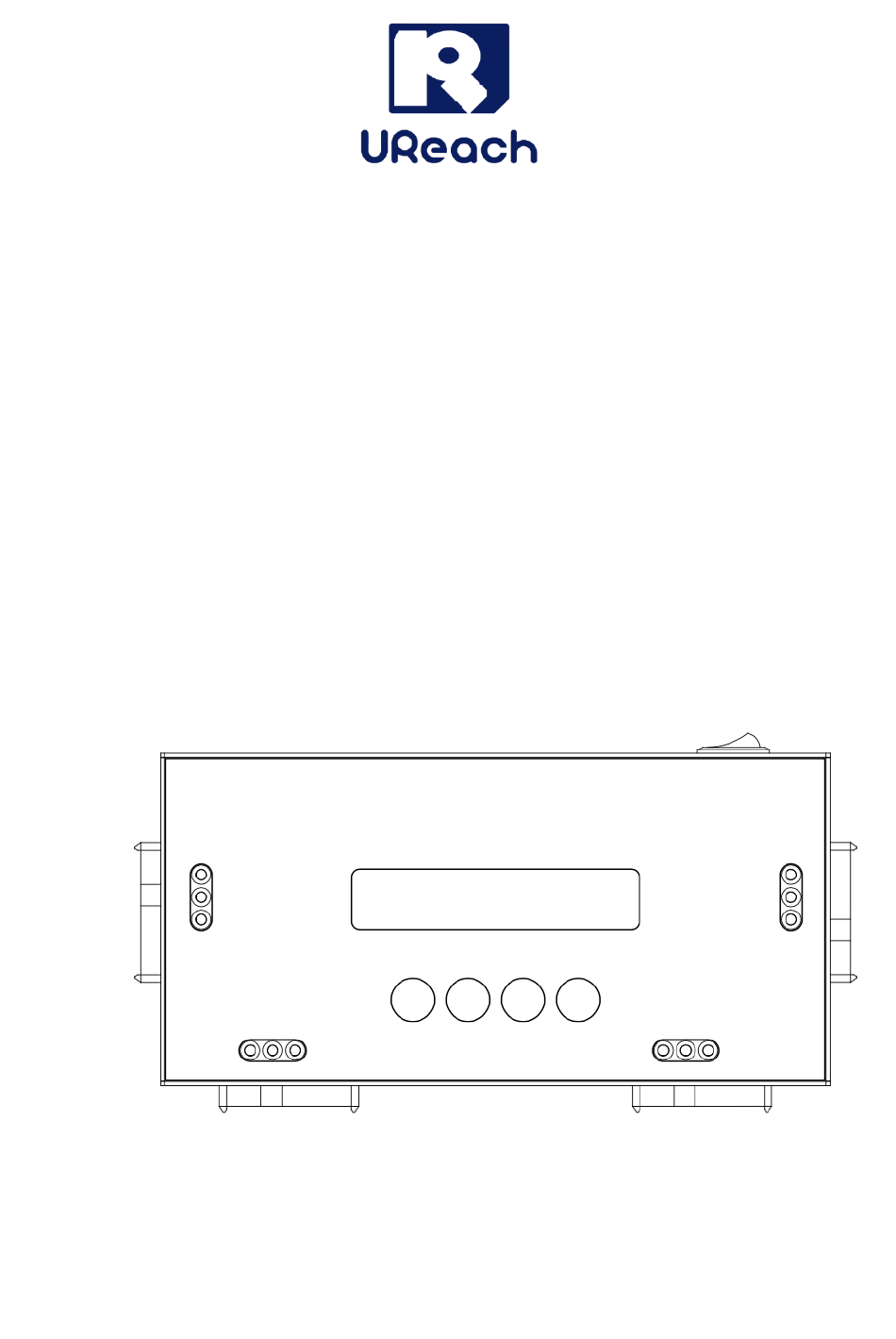

  • Page 1 Carry Series HDD/SSD Duplicator and Sanitizer User Manual v A.01...

  • Page 2: Table Of Contents

    Index Table PRO118 & PRO318 v A.01.2 Product Disclaimer ........................2 Warranty ..........................2 Piracy Statement ........................2 Before You Start ........................3 Notice Symbols ........................3 Product Overview ........................4 1. Copy ..........................8 2. Compare .......................... 9 3. Copy+Compare ........................ 9 4.

  • Page 3: Product Disclaimer

    U-Reach is not accountable for any incidental or consequential damages, including, but not limited to property harm, loss of time or data from use of any U-Reach product, or any other damages attributable to product malfunction or failure of including without...

  • Page 4: Before You Start

    ● Using the Copy+Compare function provides the most flawless duplication. ● Damage incurred due to non-compliance with U-Reach operating instructions will void ● the warranty. Store the equipment safely when not in use and keep out of the reach of children.

  • Page 5: Product Overview

    Product Overview Ÿ Hardware Red: Fail Flashing Green: Operating Remain Green: Pass Yellow: Powered Port 1 Port 2 (Source) (Target 1) UP: Backward OK: Confirm/OK DOWN: Forward ESC: Cancel/Back Ÿ LCD configuration Total Size (Source) Target HDD Copy x1 2047M Function 0:11 41% 860M...
  • Page 6 Function Table Function Description To copy source HDD to multiple target HDDs. Refer to function [6.1 Copy 1. Copy Area] for 4 different copy modes selection. 2. Compare To compare data bit for bit between source and target HDDs. 3. Copy It makes copy first and then compare target HDD with source HDD to +Compare ensure data correctness.
  • Page 7 controller model, number, and software version. 6.1.1 System and Files To copy source HDD's data area only. 6.1.2 ALL Partitions To copy source HDD's all partitions. 6.1 Copy Area 6.1.3 Whole HDD To copy the whole source HDD. 6.1.4 Percentage (%) To copy percentage range of source HDD.
  • Page 8 6.6.4 Wait HDD Time Auto start time after plugging HDD from 0~30 seconds. 6.6.5 Mark After Erase Creates watermark on the device(s) after erase job is completed. 6.6.6 Transfer Rate Select the proper transfer rate from UDMA2~UDMA7. UDMA7 is the fastest. 6.6.7 Stop Motor Time Auto running time after stopping motor from 1~20 seconds.

  • Page 9: Copy

    Functions 1. Copy Step 1: Prepare source and target devices. Recommendation: Target device(s)’ capacity must be equal to or larger than Note the source device capacity. Step 2: Connect source and target devices. Step 3: Proceed to copy. Scroll to select "1. Copy", then press "OK" to start the duplication process. The number of working/connected targets will be displayed on LCD.

  • Page 10: Compare

    2. Compare Proceed to verify device(s). Scroll to select "2. Compare", then press "OK" to start the verification process. The number of working/connected targets will be displayed on the LCD. Press Note "OK" to start. 3. Copy+Compare Sequentially automates from Function 1, Copy to Function 2, Compare. Scroll to select "3.
  • Page 11 l Press “Asynchronous Erase Button” to start a new Erase job. l Press “Asynchronous Erase Button” for 5 seconds to stop a single port. l Press “ESC” for 5 seconds to stop all the erase jobs. User is responsible for verification of targets’ quality. Testing a few completed Caution targets in a mass production environment for quality control is recommended.

  • Page 12: Utility

    Scroll to select "4.6 Secure Erase ", then press "OK" to start the erasing process. If Secure Erase process is interrupted, the device will be locked. Please Caution execute again and wait until it finishes. 4.7 Enhanced Secure Erase This function erases devices that supports this feature. Scroll to select "4.7 Enhanced Secure Erase", then press "OK"...
  • Page 13 Caution The data saved in this HDD will be erased. Step 3: Download Firmware Connect the BIOS HDD to PC. Download the latest firmware from PC and save it to HDD. Unzip BIOS, and save it to the root directory. Step 4: Enter "Update BIOS"...

  • Page 14: Setup

    6. Setup 6.1 Copy Area There are 4 submenu modes. Scroll to select "6.1 Copy Area”, then press "OK.” Then scroll through to select one of the four copy methods. l Selecting the Proper Copy Modes Example: There are two defined partitions in a 500GB device. The charts below illustrate what portion would be duplicated.
  • Page 15 Using appropriate copy modes can greatly reduce operation time and increase efficiency. There are four copy modes with different copy methods. 6.1.1 System and Files Copies data and skips empty space. Only supports standardized formats. Scroll to select "System and Files”, then press "OK" to save the copy method. Allows user to copy source device’s System and Files, instead of the entire device.
  • Page 16 6.1.4 Percentage (%) Select percentage of source capacity to copy. Scroll to select "Percentage”, set the upper and lower %, then press "OK" to save the copy method. Target Source Duplication 500GB 150GB Unallocated Partition Only copies the selected area. 6.2 Copy GPT Backup Area Enabling this function allows the duplicator to copy from big capacity device to small capacity device(s).
  • Page 17 If function is disabled, the target HDD will reconstruct the GPT Backup Area by Caution Windows system. It may require the HDD to restart in order to work. 6.3 Skip Errors Skips bad sectors during Copy/ Compare/ Erase. Scroll to select "6.3 Skip Errors”, then press "OK" to scroll through the available values for skipping bad sectors.
  • Page 18 Scroll to select "6.6.1 Unknown Format >> Copy Unknown”, then press "OK" to save this setting. ❷ Skip Unknown Skip unknown format(s). Scroll to select "6.6.1 Unknown Format >> Skip Unknown”, then press "OK" to save this setting. 6.6.2 Erase Master This function allows user to enable or disable the source port for sanitization.
  • Page 19 6.6.4 Wait HDD Time Sets device power up buffer time prior to copy, erase, etc... Scroll to select "6.6.4 Wait HDD Time”, then press "OK" to set buffer time from 3 to 30 seconds. The default is 15 seconds. 6.6.5 Mark After Erase Creates watermark on the device(s) after erase job is completed.
