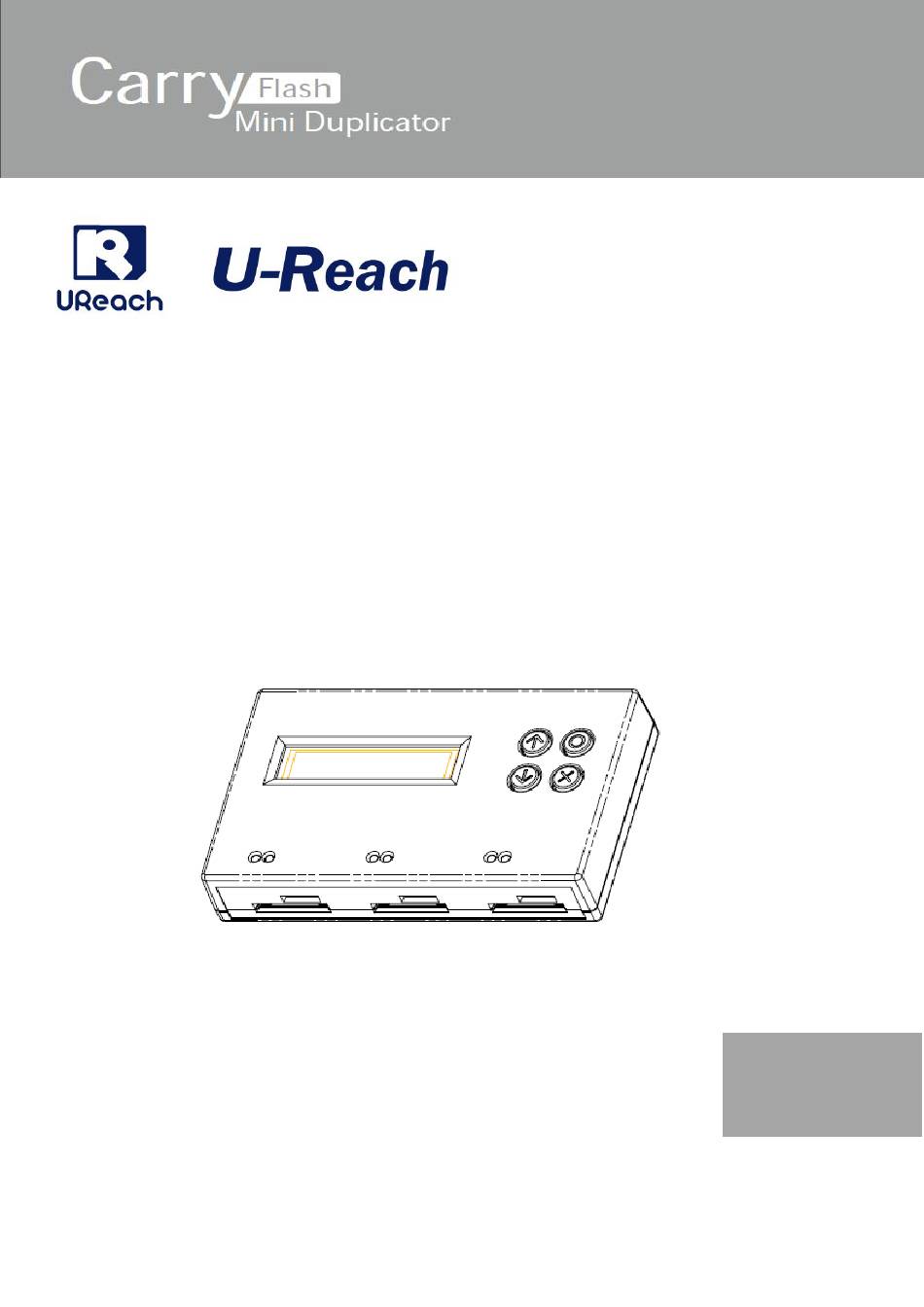

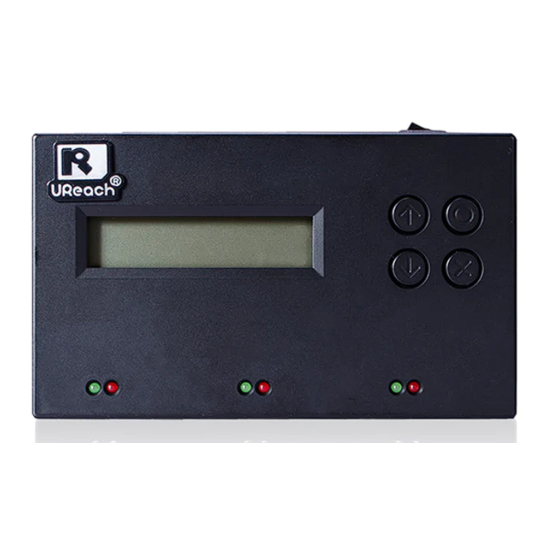

  • Page 1 Carry Flash Series SD312N SD/ Micro SD Duplicator- User Guide vA.02...

  • Page 2: Table Of Contents

    v A.02.2 Index Product Disclaimer ..................2 Warranty ......................2 Piracy Statement ..................... 2 Before You Start ....................3 Notice Symbols ....................3 Introduction ...................... 4 Function Table ....................5 Function Description ..................8 1. Copy ..................... 8 2. Compare....................9 3.

  • Page 3: Product Disclaimer

    U-Reach product. U-Reach makes every effort to ensure proper function of all products. However, the customer is responsible to verify that the output of U-Reach product meets the customer’s quality...

  • Page 4: Before You Start

    Using the Copy+Compare function provides the most flawless duplication. ⚫ Damage incurred due to noncompliance with U-Reach operating instructions ⚫ will void the warranty. Store the equipment safely when not in use and keep out of the reach of ⚫...

  • Page 5: Introduction

    Introduction 1. Features Ultra-high transmission speed. ⚫ Real multitask processing capability. Whether copy, compare, media check or ⚫ format, each feature is independently executed. Each flash slot has an independent processing unit. Powerful H3/H5/H6 for speed and flash quality check. ⚫...

  • Page 6: Function Table

    Function Table *Below functions and features subject to change without notice. Function Description 1. Copy Copies data only or whole media duplication. Compares the data bit by bit between the source and all other 2. Compare copied flash medias. First copies then compares the copied flash media with the source 3.
  • Page 7 6.3.2 H5 RW Checks the quality of flash by reading and writing. This function will change flash’s content and format. 6.3.3 H6 SafeRW Checks the quality of flash by writing and reading its empty space. This function will not change flash’s content and format.
  • Page 8 7.2.2 Whole Media Sets to copy the whole content of flash including the empty space. 7.3 Button Sound Chooses whether or not to hear a beep when a button is pressed. 7.4 Target Tolerance Sets the tolerance % of capacity gap between the source and target.

  • Page 9: Function Description

    Function Description 1. Copy Step 1: Prepare source and target devices. Recommendation: Target device(s)’ capacity must be equal to or larger Note than the source device capacity. Step 2: Insert source and target devices. Step 3: Proceed to copy. Scroll to select "1. Copy", then press "OK" to start the duplication process. The number of working/connected targets will be displayed on LCD.

  • Page 10: Compare

    If flash card is removed during copy process, the system will stop ⚫ immediately, and red light will illuminate to notify user the copy has failed. Removing the flash card during copy is strongly discouraged as Note it will damage the flash card. Backup the data on target flash cards before starting the copying ⚫...

  • Page 11: Information

    This function supports asynchronous operation; you can continually ⚫ plug and unplug flash media without having to push any buttons. The function may alter the data content and format of flash. ⚫ To protect source data, the system will not run a “Capacity Check” on ⚫...

  • Page 12: Utility

    6. Utility 6.1 Do Format 6.1.1 Auto Format This function formats flash into FAT. Plug in the flash media and press "OK". The system will automatically detect its capacity, then format the media per its capacity. ⚫ If the flash media format is already FAT16 or FAT32, the format function won’t alter its original format.
  • Page 13 ➊ Plug flash media into the slot, select function [3. Measure Speed], then press "OK" to start this function. SD Duplicator [#02] Read: 14.7MB 2. Measure Speed Write: 7.0MB ➋ Use the ↑↓ keys to view the exact "Read" and "Write" flash media speed on each port. To protect source data, the system will not execute “Measure Speed”...
  • Page 14 6.3.2 H5 Test This function performs a read and write test to determine the flash’s quality. The flash’s ↑↓ original data will be erased during this test. Use the buttons to view the status of each port. Test Capacity Bad Sector Pass: 1 H5 RW Fail: 0...
  • Page 15 6.3.5 Setup Range MB This function sets the quality check capacity range in MB. Use [Setup Range MB] 2000MB ↑↓ buttons to set the range from 1MB to 9000MB. The duplicator will abide by whichever was set last if both Range% and Note Range MB are set.
  • Page 16 Update”, then press "OK" to start the firmware update process. The firmware update process may take longer than 5 minutes. Please do not disrupt power or process during BIOS update. If interrupted, the Caution system will become useless. U-Reach will not be held responsible for any damages.

  • Page 17: Setup

    6.8 Calc. Checksum This function will count the Checksum value for the source port. The checksum value is an easy way to double check the source data is correct. User is responsible for verification of targets’ quality. Testing a few Caution completed targets in a mass production environment for quality control is recommended.
  • Page 18 7.3 Button Sound [Button Sound] Controls whether to hear a sound when a button is pressed. 7.4 Target Tolerance This function sets the capacities tolerance range between the source and target flash. If the capacity is outside the tolerance range, the copy will fail. For example, if the target tolerance is set to "±1%", targets whose capacities are 2.02GB or more and 1.98GB or less will not be copied.
  • Page 19 7.7 Power Off Time Between Copy+Compare The use of this setting is highly advised as it prevents data loss due to unstable flash. Users can set the time gap of power supply between copy and compare. The time gap can be set from 0 to 15 seconds.
  • Page 20 7.12 Monitor Device After Copy Allows user to set a device status check after duplication. The settings could show different results because each device has various settings. For example, if a device is set to power off automatically after “complete” command, then user must set “Do NOT Check”...

  • Page 21: Q&A

    (2) Use “Select Speed” to slow down the copy speed. Q4: Why is the copy speed so slow? A: U-Reach SD Card duplicator can reach high transmission rate, but speed depends on actual flash quality and models/series. If you find the copy speed is slow, double check flash quality.
  • Page 22 ❶ If Source capacity is SMALLER than the target, for example 1GB to 2GB: Example: Source Target Copy OK Warning: The 2GB target WILL BECOME 1GB WHEN READ ON PC. You can reset its 2GB capacity by reformatting the device. When there is a big difference between target and source’s capacity, such as 1GB to 4GB or 1GB to 2GB, there is a risk of target capacity, Caution...

  • Page 23: Specification

    Specification Model SD312N Capacity Designed support up to 2TB Operation Type Standalone, FPGA based operation (Non-PC based) Supported Languages English or Japanese Specifications LCD Display Backlit Monochrome LCD Display LEDs 2 LED Indicators per Port (1 Red/ 1 Green) ↑, ↓, ○:“OK” & X:”ESC” Control Panel 4 Push Buttons ( Quick Copy (Systems &...
