V 2.0
PRO118
(1-1)
HDD Duplicator
User Guide
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carry HDD PRO118 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Reach Carry HDD PRO118

Summary of Contents for U-Reach Carry HDD PRO118

  • Page 1 V 2.0 PRO118 (1-1) HDD Duplicator User Guide...

  • Page 2: Table Of Contents

    Content 1 Product Introduction 6.4.3 Erase Pattern 1. Features 6.4.3.1 ONE Byte 2. Product Overview 6.4.3.2 Big Random Data 6.4.4 Wait HDD Time 2 Function Table 6.4.5 Transfer Rate PRO118 Function Table 6.4.6 Stop Motor Time 6.5 Restore Default 3 Function Introduction 4 Specification 1.

  • Page 3: Product Introduction 1

    Product Introduction 1 1. Features • High copy speed supports up to 110MB/second. • Auto power control to protects your HDD.(HDD only powered during operation.) • Support 2.5" and 3.5" SATA HDD, IDE HDD and SSD. • Support 3 different duplicator mode; quick copy (System and files), All partitions and Whole HDD.

  • Page 4: Product Overview

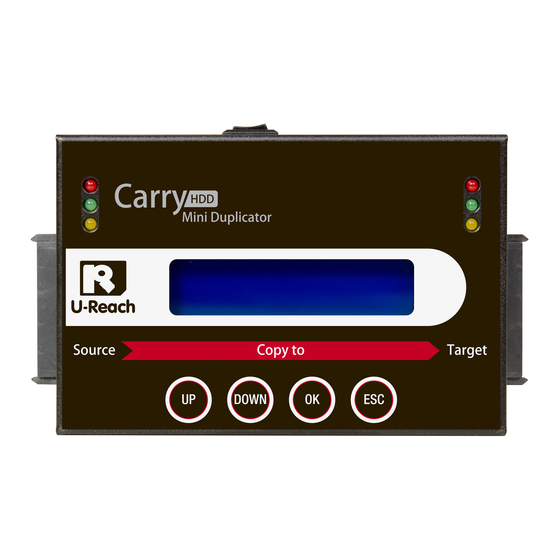

    1 Product Introduction Port 1 (Source) 2. Product Overview Port 3 (Target 2) A. System Overview Port 2 (Target 1) PRO118 (1-1) Red: Fail Green: Pass Yellow: Powering Target port Source port Backward Forward Comfirm / OK Cancel / Back B.

  • Page 5: Function Table 2

    Function Table 2 PRO118 Function Table Function Description To copy source HDD to multiple target HDDs. Refer to function 6.Setup for 3 1. Copy different copy mode selection. 2. Compare To compare data bit by bit between source and copied HDDs. 3.
  • Page 6 2 Function Table 6.1.1 System and Files Set to copy source HDD's data area only. 6.1.2 ALL partitions Set to copy source HDD's all partitions. 6.1 Copy Area Setup copy mode. 6.1.3 Whole HDD Set to copy the whole source HDD. 6.1.4 Percentage(%) Set to copy the percentage range of the source.

  • Page 7: Function Introduction 3

    Function Introduction 3 1. Copy It copies data from source HDD to target HDD. Please make sure you have choose correct copy mode you like to use, about the three copy modes please refer to function [6.1 Copy Area] for details. The default setting is "System and Files".

  • Page 8: Erase

    3 Function Introduction Copy result: (Pass) (Fail) The default setting of error counter is 0. If you like to increase the accepted error sectors of the HDD, you can use function 6.2 to setup "skip error". b. Select the suitable copy mode by function 6.1 Copy Area, the Default setting is quick copy mode "System and Files".

  • Page 9: Quick Erase

    Function Introduction 3 4.1 Quick Erase The function will ONLY erase the index of the HDD. It is the quickest way to erase HDD. It will damage the data in HDD, please make sure you have backup all important data before using this function. 4.2 Full Erase The function will erase the whole sectors on the target HDD.

  • Page 10: Dod Erase Comp

    3 Function Introduction 4.4 DoD Erase Comp Besides DoD erase, this function will also execute compare function to make sure the random bit was correctly written. This way of erase is to erase HDD over each sector three times: the first time with zeros (0x00), second time with 0xFF and the third time with random characters.

  • Page 11: Update System

    Function Introduction 3 5.2 Update System You can follow the steps to update system firmware: ① Select Function 5.2.2 Format HDD ② Download the BIOS from PC to your HDD. The purpose of this is because 2GB FAt HDD Partition can speed up update process.

  • Page 12: System Info

    3 Function Introduction 5.3 System Info. This function shows information of the duplicator includes model name and firmware version. 6. Setup 6.1 Copy Area 6.1.1 System and Files It will copy source HDD's System and Files instead of the whole HDD. The system will analyze the source HDD and identify the data area to copy.

  • Page 13: All Partitions

    Function Introduction 3 6.1.2 All Partitions This mode will bit by bit copy all of the partitions no matter there is data exist or not. The capacity of target HDD has to be bigger than the partition required capacity. Source HDD 320GB Tatget HDD 320GB Data : 20GB When choosing “All Partitions Copy”, only 120G data will be...

  • Page 14: Percentage(%)

    3 Function Introduction 6.1.4 Percentage(%) This mode will copy the percentage selected of source HDD. Only copy the selected area, other area or data will not be copied. Duplication time is affected by "transfer rate of HDD". 6.2 Skip Error This function sets the number of error you like to skip during copy process.

  • Page 15: Copy Unknown

    Function Introduction 3 6.4.1.1 Copy Unknown Copy all the unknown area if device can not identify the format during copy. 6.4.1.2 Skip Unknown Skip the unknown area if device can not identify the format during copy. 6.4.2 Erase Master It is set to allow erase source HDD or not. Please make sure this setting before you execute erase function.

  • Page 16: Big Random Data

    3 Function Introduction 3737373737 3737373737 3737373737 3737373737 3737373737 3737373737 3737373737 3737373737 6.4.3.2 Big Random Data A set of different random character to be written into a set of area. This erase pattern method is safer for preventing from data recovered. 26A5C8781 BF51337E81 AA9641D3B...

  • Page 17: Transfer Rate

    Function Introduction 3 6.4.5 Transfer Rate You can select the best transfer rate from UDMA 2 to UDMA7 for your HDD duplication progress. If you are not confident on the HDD quality or you find a high failure rate on copy or compare. It is recommended to slow down the UDMA mode.

  • Page 18: Specification

    Specification Product Name Carry Mini HDD Dupe Product Number PRO118 Targets HDD Interface SATA, IDE(optional) Display Monochrome LCD Control Button 4 push buttons All major brand of 2.5”,3.5” SATA and IDE HDD and Compatible HDD SATA SSD 1. System and Files, 2. All Partitions, Duplication Mode 3.
