U-Reach Carry Series User Manual

1 to 2 sata hdd/ssd duplicator and sanitizer
Hide thumbs Also See for Carry Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Carry Series
1 to 2 SATA HDD/SSD
Duplicator and Sanitizer
User Manual
v A.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carry Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Reach Carry Series

Summary of Contents for U-Reach Carry Series

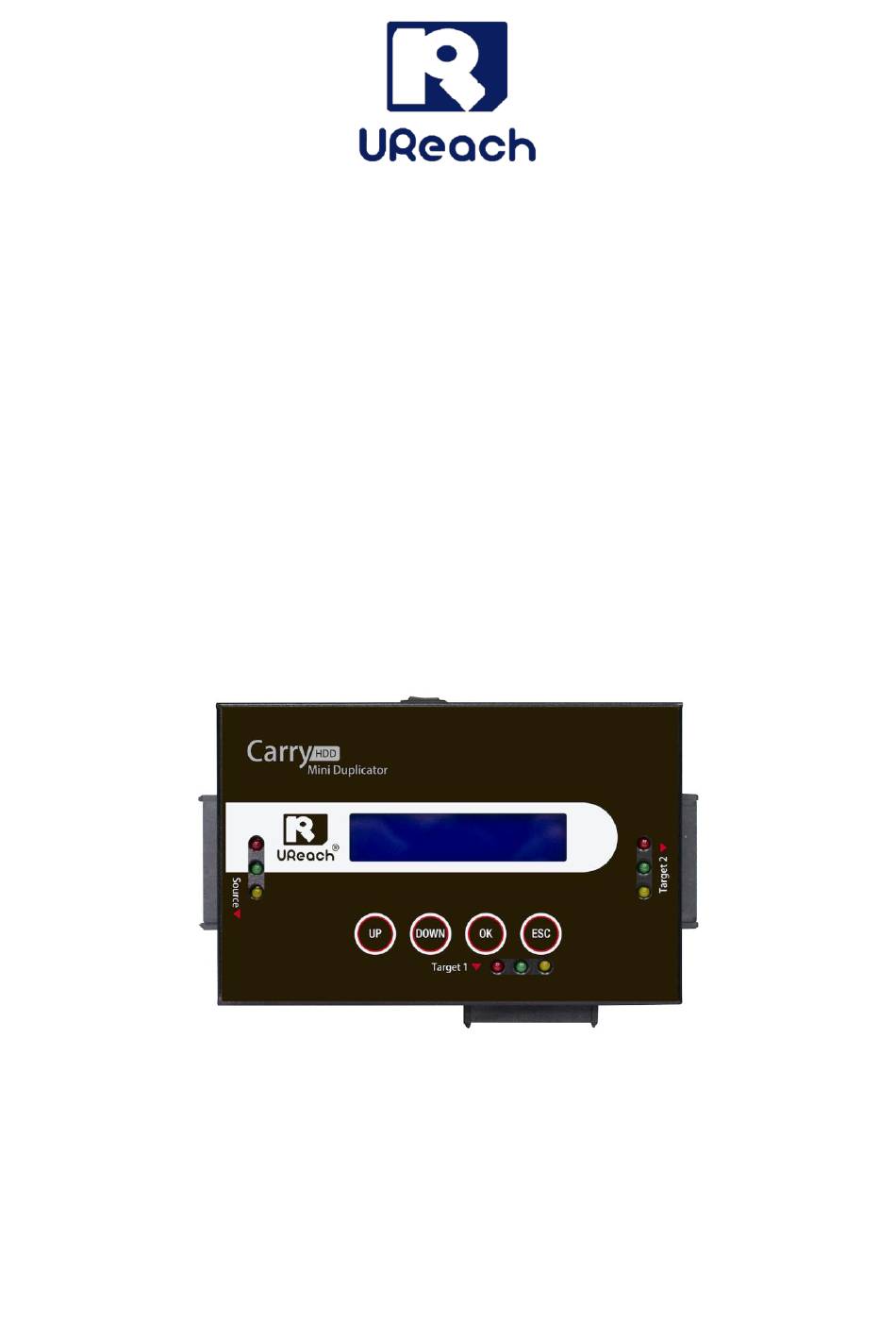

  • Page 1 Carry Series 1 to 2 SATA HDD/SSD Duplicator and Sanitizer User Manual v A.04...

  • Page 2: Table Of Contents

    Index Table PRO218 v A.04 Product Disclaimer ....................2 Warranty ........................ 2 Piracy Statement ....................2 Before You Start ..................... 3 Notice Symbols ...................... 3 Product Overview ....................4 1. Copy ......................... 9 2. Compare ......................9 3. Copy+Compare ....................10 4.

  • Page 3: Product Disclaimer

    U-Reach is not accountable for any incidental or consequential damages, including, but not limited to property harm, loss of time or data from use of any U-Reach product, or any other damages attributable to product malfunction or failure of including without...

  • Page 4: Before You Start

    Before You Start Important Notice Carefully read the entire manual before operating. ● Make sure the source device is correct and functioning. ● Equal capacity of source and target is recommended for guaranteed data consistency. ● Using the Copy+Compare function provides the most flawless duplication. ●...

  • Page 5: Product Overview

    Product Overview  Hardware Red: Fail Flashing Green: Operating Remain Green: Pass Yellow: Powered Port 1 Port 3 (Source) (Target 2) Port 2 (Target 1) UP: Backward OK: Confirm/OK DOWN: Forward ESC: Cancel/Back  LCD configuration Total Size (Source) Target HDD Copy x1 2047M Function...
  • Page 6 Function Table Function Description To copy source HDD to multiple target HDDs. Refer to function 1. Copy [6.1 Copy Area] for 4 different copy modes selection. 2. Compare To compare data bit for bit between source and target HDDs. 3. Copy It makes copy first and then compare target HDD with source HDD to ensure data correctness.
  • Page 7 5.3 System Info. This function will show information of the duplicator system, including controller model, number and software version. 5.4 Get Checksum This function will Calculates the CRC16 value of the HDD. 6.1 Start-up Menu Sets default function to display during equipment initialization. 6.2.1 System and Files To copy source HDD's data area only.
  • Page 8 (Setup to erase Disable source HDD or Disable erase source HDD. not.) ONE Byte A random character to be written into every byte. 6.7.3 Erase Pattern Big Random Data A set of random character to be written into a set of area. 6.7.4 Skip Erase Errors Skip bad sectors during erase.
  • Page 9 6.7.10 Stop Motor Time Auto running time after stopping motor from 1~20 seconds. 6.8 Restore Default Back to original manufacturer setting.

  • Page 10: Copy

    Functions 1. Copy Step 1: Prepare source and target devices. Recommendation: Target device(s)’ capacity must be equal to or larger than Note the source device capacity. Step 2: Connect source and target devices. Step 3: Proceed to copy. Scroll to select "1. Copy", then press "OK" to start the duplication process. The number of working/connected targets will be displayed on LCD.

  • Page 11: Copy+Compare

    3. Copy+Compare Sequentially automates from Function 1, Copy to Function 2, Compare. Scroll to select "3. Copy+Compare", then press "OK" to start the automated duplication and verification process. User is responsible for verification of targets’ quality. Testing a few completed Caution targets in a mass production environment for quality control is recommended.

  • Page 12: Utility

    4.2 Full Erase This function will erase all data per NIST 800-88 Standards on the connected device(s). Scroll to select "4.2 Full Erase”, then press "OK" to start the erasing process. 4.3 DoD Erase This function will erase all data per DoD 5220.22-M Standards on the connected device(s).
  • Page 13 This menu contains submenus related to device information, system information and updates. Scroll to "5. Utility”, then press "OK" to view the submenus. 5.1 Show Disk Info This function will display basic information such as device model, name, capacity, etc… Scroll to select "5.1 Disk Info”, then press "OK"...

  • Page 14: Setup

    5.4 Get Checksum This function will Calculates the CRC16 value of the HDD. 6. Setup 6.1 Start-up Menu This function allows user to select the default function to display during equipment initialization. Scroll to select "6.1 Start-up Menu”, then press "OK.” Then scroll through the available menus for startup.
  • Page 15 ⚫ Copy and Compare Preparations Please consider the following settings before proceeding with copy or compare: - 6.2 Copy Area - 6.4 Skip Errors - 6.7.1 Unknown Format Using appropriate copy modes can greatly reduce operation time and increase efficiency. There are four copy modes with different copy methods. 6.2.1 System and Files Copies data and skips empty space.
  • Page 16 The target device’s capacity must be equal to or larger than the source device’s capacity. Target Source Duplication Partition1 (150GB) Data 30 GB 350GB Partition2 (200GB) 500GB Data 90GB 150GB Unallocated Partition 350GB of all Partitions along with its contents will be copied. 6.2.3 Whole HDD Copies all source data bit by bit.
  • Page 17 the copy method. Target Source Duplication 500GB 150GB Unallocated Partition Only copies the selected area. 6.3 Copy GPT Backup Area Enabling this function allows the duplicator to copy from big capacity device to small capacity device(s). The partition size of the source HDD must be smaller than target Note capacity.
  • Page 18 Scroll to select "6.4 Skip Errors”, then press "OK" to scroll through the available values for skipping bad sectors. If the device data is critical and needs to be a full clone, it is recommended to set “Skip Error” at "0.” Bad sectors can be set as unlimited or at a value from 0 to 65,535.
  • Page 19 Scroll to select "6.7.1 Unknown Format >> Skip Unknown”, then press "OK" to save this setting. 6.7.2 Erase Master This function allows user to enable or disable the source port for sanitization. Scroll to select "6.7.2 Erase Master”, then press "OK.” Then scroll through to select one of two settings.
  • Page 20 Scroll to select “6.7.4 Skip Erase Errors”, and press “OK” to scroll through the available values for skipping bad sectors. 6.7.5 Wait HDD Time Sets device power up buffer time prior to copy, erase, etc... Scroll to select "6.7.5 Wait HDD Time”, then press "OK" to set buffer time from 3 to 30 seconds.
  • Page 21 ➋ No Release Keeps original HPA setting and data during erase. Scroll to select "Clear HPA at Erase >> No Release”, then press "OK" to save this setting. 6.7.8 Mark After Erase Creates watermark on the device(s) after erase job is completed. This watermark will show when executing “5.1 Show Disk Info.”...
