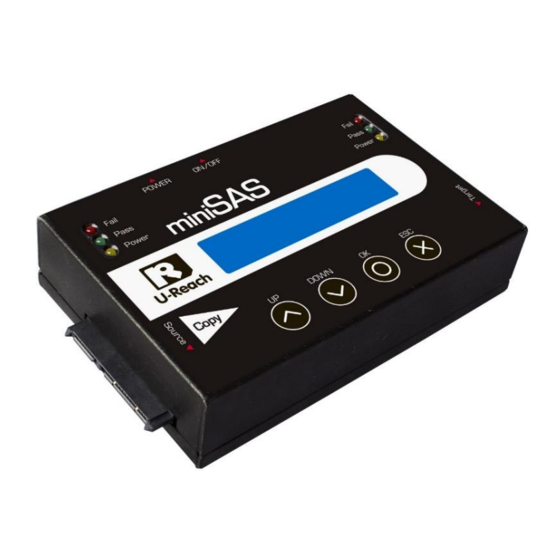

Carry hdd mini duplicator, sas/sata duplicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

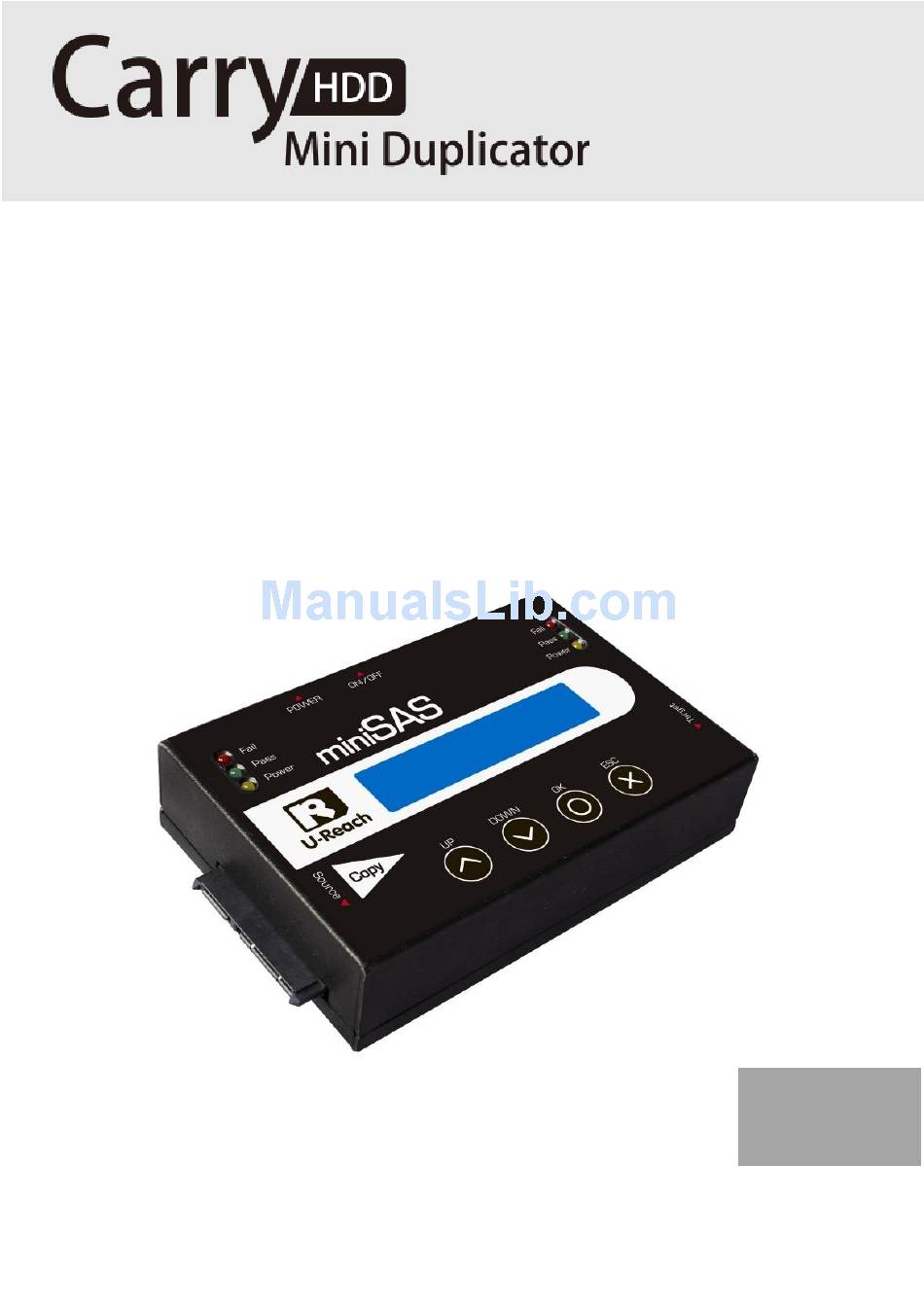

V 1.1
SAS-MS118
(1:1)
SAS/SATA Duplicator
User Manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAS-MS118 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Reach SAS-MS118

Summary of Contents for U-Reach SAS-MS118

  • Page 1 V 1.1 SAS-MS118 (1:1) SAS/SATA Duplicator User Manual...

  • Page 2: Table Of Contents

    Index Product Disclaimer ....................2 Warranty ......................2 Piracy Statement ....................2 Preparation Tips before You Start ................ 3 Features ....................... 3 Product Overview ....................4 Function Table ..................... 5 Function Introduction ..................8 1. Copy ......................... 8 2. Compare ......................10 3.

  • Page 3: Product Disclaimer

    (or from delays in servicing or lack of ability to render service on any) U-Reach product). U-Reach makes every effort to ensure proper operation of all products.

  • Page 4: Preparation Tips Before You Start

    Preparation Tips before You Start  Make sure to use stable power supply.  Please use in a clean & dry environment.  Please keep the environment well ventilated.  When the duplicator operates, it is normal for the machine to heat up. ...

  • Page 5: Product Overview

    Product Overview A. System Overview Red: Fail Green: Pass Yellow: Powering Backward Forward Confirm / OK Cancel / Back B. LCD Configuration Target HDD Function Total size (Source) Copy 2047M 0:11 0:11 860M Copied Processed size (Target) Time (mm:ss) Copy Progress %...

  • Page 6: Function Table

    Function Table Function Item & Description Copies source device to connected target device(s). Refer 1. Copy to function 6.1 Copy Area for 4 different copy modes. Verifies target device(s) bit-by-bit to the master device. 2. Compare Automated task of first duplicating and then verifies all the 3.
  • Page 7 5.3 System Info This function displays information of the duplicator system, including controller model number and firmware version. 5.4 Read Speed This function will perform a full reading speed test on the desired, connected device(s). 5.5 Write Speed This function will perform a full writing speed test on the desired, connected device(s).
  • Page 8 6.4.3.1 One Byte Writes a random character per byte. 6.4.3 Erase 6.4.3.2 Random Data Pattern Writes a set of random characters into a set of area. 6.4.4 Wait HDD Time Enable operators to set a time delay for the HDD motor to spin up. (Push “OK” to Start or delay from 3-30 seconds) No, keep HPA Advanced...

  • Page 9: Function Introduction

    Function Introduction 1. Copy It copies data from source HDD to target HDD. You can set following settings before copy. (You can check more detail in ”6. Setup”.) I. Set Copy Area of Source HDD → 6.1 Copy Area II. Set Copy Unknown Format Area →...
  • Page 10 The information below shows on LCD during duplication. Copy Process Total Data Function Copy 224M 0:02 190M Copied Data Copied Time Copy Process (if there is any bad sector) Source bad sector Bad Sector 0:01 Target bad sector Copied Time Copy Process Step 4: Completion! The copy result (Pass/Fail), total copy time and bad sectors will show on...

  • Page 11: Compare

    2. Compare It is used to check if the data on source HDD is identical to target HDD after duplication.  Start to compare Step 1: Prepare Source and Targets Prepare the source HDD and target HDDs to compare after duplication is completed.

  • Page 12: Erase

    4. Erase Please choose the appropriate erase method when you like to dispose or re- use the HDDs. You can set following settings before erase: (You can check more detail in ”6. Setup”.) I. Set Erase mode II. Set Erase Master →...

  • Page 13: Quick Erase

    4.1 Quick Erase The function will ONLY erase the index of the HDD. It is the quickest way to erase HDD. 4.2 Full Erase The function will erase the whole sectors on the target HDD. It will take a longer time than quick erase. 4.3 DoD Erase This is to comply with the U.S.A.

  • Page 14: 7-Pass Overwrite

    1. The erasing duration of DoD Erase mode is 3 times longer than full erase mode. Note 2. The duration of DoD EraseComp is 4 times longer than full erase mode. 4.5 7-Pass Overwrite The mode fully erases the HDD for 7 times bit-by-bit to overwrite HDD data and guarantees data not recoverable.

  • Page 15: Update System

     Device Power Cycle To show the count of HDD's turning on and off.  Power-on Hours To show the total hours of HDD powering-on.  Reallocation Event Count To show the count of reallocating event. When the HDD fails to save data, it will need to redefine the location to store data.

  • Page 16: System Info

    Step 3: Download Firmware Connect the BIOS HDD to PC. Download the latest firmware from PC and save it to HDD. Unzip BIOS, and save it to the root directory. Step 4: Enter "Update BIOS" Place the BIOS HDD into source port. Enter function "5.2.1 Update BIOS". Update will take about a minute to complete.

  • Page 17: Setup

    6. Setup 6.1 Copy Area Users can set copy area of source HDD. Appropriate copy area can greatly reduce operation time and have better efficiency. There are four copy modes with different copy areas: Target Source Whole HDD System and Files 4 Copy Area System and Files ...
  • Page 18 6.1.2 ALL Partitions Copy all of the partitions area bit-by-bit no matter if there is data that exists or not. The capacity of target HDDs have to be bigger than the partition required capacity. [Copy Area] ALL Partitions 6.1.3 Whole HDD Copies the whole source HDD, no matter of the content, format, partition or empty space.
  • Page 19 6.1.4 Percentage (%) Copy the selected percentage range of source HDD. [Copy Area] Percentage How to select the proper copy area? Example: There are two partitions in one 500G HDD. System and files All Partitions Whole HDD 30G Data 100G 100G 100G 60G Data...

  • Page 20: Skip Error

    6.2 Skip Error This function sets the number of error you like to skip during copy / compare / erase process. The default is 0. You can choose 0-65535 or unlimited. [Skip Error] 6.3 Language Select preferred language. You can select English or Japanese. 6.4 Advanced Setup 6.4.1 Unknown Format This function allows you to select if you want to copy the unknown format area.
  • Page 21 6.4.3 Erase Pattern Enable to select overwrite data pattern mode during erase.  ONE Byte [00] or a fixed character will be written into every byte. 3535353535 3535353535 3535353535 [02] 74.5G 3535353535 Erase [00] 5432M 3535353535 3535353535  Big Random Data A random character to be written into every byte.

  • Page 22: Restore Default

    connected target device(s).  No, Setting HPA Do not copy the source device’s HPA data but set the targets HPA to be the same as the source HDD.  Copy and Setting Copy source HPA data and setting to the target. 6.4.6 Clear HPA at Erase ...

  • Page 23: Specifications

    Specifications Product Name SAS-MS118 Targets Maximum Transfer 18 GB/min. *Actual performance is dependent Speed on HDD transfer speeds Supports the latest market available capacity. Capacity Designed support capability up-to 18TB+. Display Monochrome LCD Control Panel 4 push buttons (UP, DOWN, OK, ESC) All major brand of 2.5”,3.5”...
