V 4.0
PRO218
(1-2)
HDD Duplicator
User Guide
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Carry HDD Mini Duplicator and is the answer not in the manual?

Questions and answers

Related Manuals for U-Reach Carry HDD Mini Duplicator

Summary of Contents for U-Reach Carry HDD Mini Duplicator

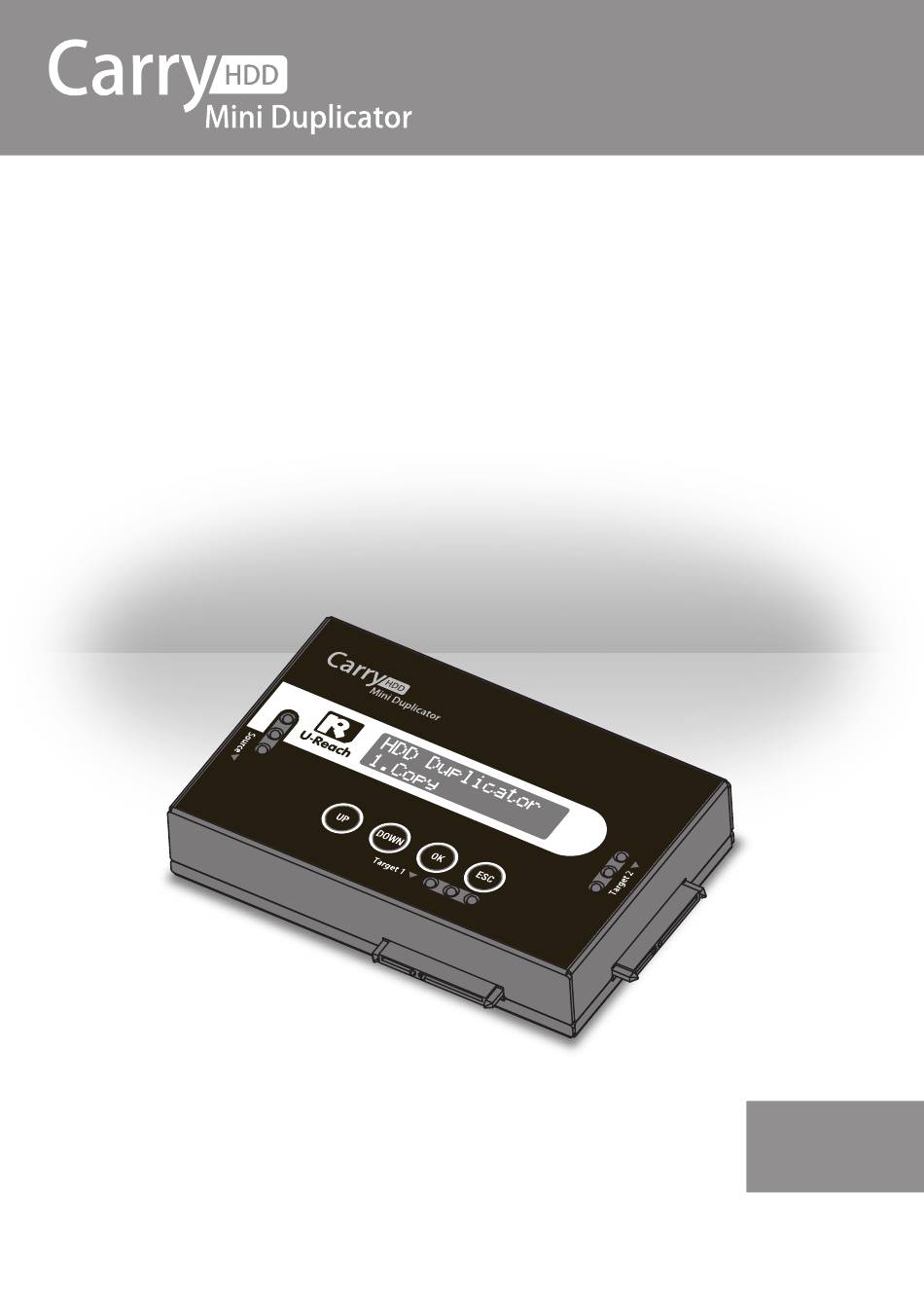

  • Page 1 V 4.0 PRO218 (1-2) HDD Duplicator User Guide...

  • Page 2: Table Of Contents

    Content Content How To Erase HDD? 1. How to Erase? Product Introduction 2. Setting of Erase Function 1. Features Quick Erase 2. Product Overview Full Erase A. System Overview DoD Erase B. LCD Configuration DoD Erase Comp Secure Erase Function Table 3.

  • Page 3: Product Introduction 1

    Product Introduction 1 1. Features • High copy speed supports up to 6.6GB/min. • Auto power control to protects your HDD.(HDD only powered during operation.) • Support 2.5" and 3.5" SATA HDD, IDE HDD and SSD. (IDE HDD needs convertor) •...

  • Page 4: Product Overview

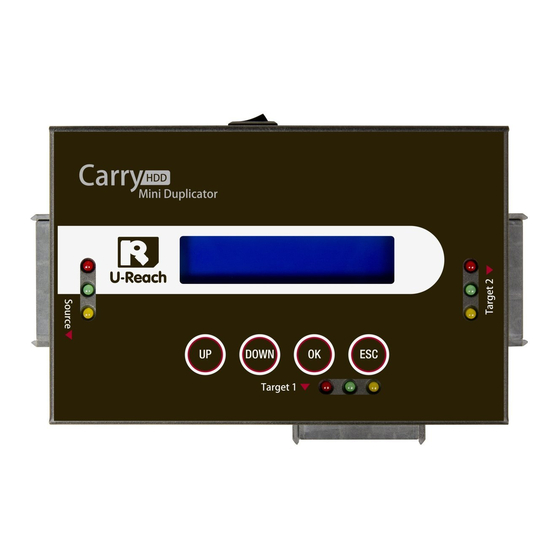

    1 Product Introduction 2. Product Overview A. System Overview Flashing Green Operating Remain Green Pass B. LCD Configuration...

  • Page 5: Function Table 2

    Function Table 2 Function Table Function Description 1. Copy Copy data from source HDD to targets. (there are four copy modes for selection at function 6.1) 2. Compare Comparison between the source and targets to make sure copy accuracy. 3. Copy+Compare Execute compare function automatically after copy.
  • Page 6 2 Function Table 6.4.2.1 Disable 6.4.2Erase Master Disable erase source HDD. Setup to erase source HDD or 6.4.2.2 Enable not. Enable erase source HDD. 6.4.3.1 ONE Byte A random character to be written into every byte. 6.4.3 Erase Pattern 6.4.3.2 Big Random Data 6.4 Advanced Setup A set of random character to be written into a set of area.

  • Page 7: How To Start Duplicating Hdd

    How To Start Duplicating HDD 3 How To Start Duplicating HDD? 1. Start duplication Step 1 Prepare a source HDD and target HDD (*It is strongly recommended to the size of source and target are the same) Note ㅦ SATA interface applies on the duplicator, no matter SATA 1.0/2.0/3.0 are all supported. ㅦ...

  • Page 8: Set-Up Before Start Duplication

    3 How To Start Duplicating HDD Step 3 Use ▲▼ to select "1. Copy" then press "OK". Duplication will proceed. Note When all the target HDD ports are plugged, duplicator would start copying automatically. If not all are plugged, the number of targets shows on LCD. Press "OK" to start. The information below shows on LCD during duplication.

  • Page 9: System And Files (Fast Copy/Compare)

    How To Start Duplicating HDD 3 System and Files (fast copy/compare) It will copy source HDD's System and Files instead of the whole HDD. The system will analyze the source HDD and identify the data area to copy. As long as the source HDD's data within the target HDD's space, the copy will be processed.

  • Page 10: Whole Hdd

    3 How To Start Duplicating HDD Source Duplication Target Partition 1(150G) Data 30G Partition 1(200G) Data 90G 500GB 500GB Only 350 GB partition area will be copied, it takes 48 mintues. Note Duplication time is affected by "transfer speed of HDD". Whole HDD It is to copy the whole source HDD, no matter of the content, format, partition or empty space.

  • Page 11: Percentage(%)

    How To Start Duplicating HDD 3 Percentage(%) Copy the percentage selected of source HDD. Note Duplication time is affected by "transfer speed of HDD". Below is one example of copy area selection e.g. There are two partitions in one 500GB HDD. Data and OS(120GB) are saved in the partition. Note ㅦ...

  • Page 12: ❷ Set Tolerance Of Bad Track

    3 How To Start Duplicating HDD ❷ Set tolerance of bad track Select function 6.2 Skip Error to set the number of error you accept to skip during copy process. If the HDD is very critical for content correctness, it is strongly recommended to keep the Skip Error to be "0".

  • Page 13: How To Confirm Copy Accuracy

    How To Confirm Copy Accuracy? 4 How To Confirm Copy Accuracy? 1. To Confirm Accuracy by Compare Function Step1 Prepare source HDD and target HDD. Step 2 Place source HDD at source port, targets HDD to other ports. Step 3 Use ▲▼...

  • Page 14: Setting Of Compare Function

    4 How To Confirm Copy Accuracy? 2. Setting of Compare Function It is able to set compare area of HDD at function 6.1 There are four different compare area for selection : ① System and Files, ② All available partition area, ③ Whole HDD, ④ Percentage Compare. Note It is recommended to execute Compare after Copy to confirm the accuracy.

  • Page 15: How To Erase Hdd? 5

    How To Erase HDD? 5 How To Erase HDD? Note Please notice the data within the HDD will be erased after executing the function. 1. How to Erase? Step1 Prepare the HDD for erasure. Step 2 Insert the HDD into target port. Note Function 6.4.2 Erase Master is to determine erase source HDD or not.

  • Page 16: Setting Of Erase Function

    5 How To Erase HDD? 2. Setting of Erase Function There are five erase methods: Quick Erase, Full Erase, DoD Erase, DoD Erase Comp and Secure Erase. Quick Erase The function will ONLY erase the index of the HDD. It is the quickest way to erase HDD.

  • Page 17: Dod Erase Comp

    How To Erase HDD? 5 Note We do not suggest that user removes HDD during erase process because this action may damage HDD. DoD Erase Comp Besides DoD erase, this function will also execute compare function to make sure the random bit was correctly written. This way of erase is to erase HDD over each sector three times: the first time with zeros (0x00), second time with 0xFF and the third time with random characters.

  • Page 18: Secure Erase

    5 How To Erase HDD? Secure Erase The international authorized high standard Secure Erase function. It overwrites every single track on the hard drive with "00". Even HPA/DCO or other data area which are not able to load, can be erased all together Note Please do not disrupt during Secure Erase, otherwise it would cause irretrievable error on HDD, which turns the HDD unusable.

  • Page 19: Update Bios 6

    Update BIOS 6 Update BIOS 1. How to Update BIOS? Update by HDD Step 1 Prepare one HDD and connect it to source port, then select function 5.2.2 Create update HDD. Step 2 Format the HDD. Note ㅦ Before updating firmware, one FAT, 2GB partition will be formatted in the HDD. That would reduce searching time, and speed up firmware update.
  • Page 20 6 Update BIOS Step 4 Insert HDD into source port (first port), select function 5.2.1 Update BIOS. Update would complete in one minute.

  • Page 21: Specification

    Specification Specification Product Name Carry Mini HDD Dupe Product Number PRO218 Targets HDD Interface SATA, IDE(optional) Display Monochrome LCD Control Button 4 push buttons Compatible HDD All major brand of 2.5",3.5" SATA and IDE HDD and SATA SSD 1. System and Files 2.
