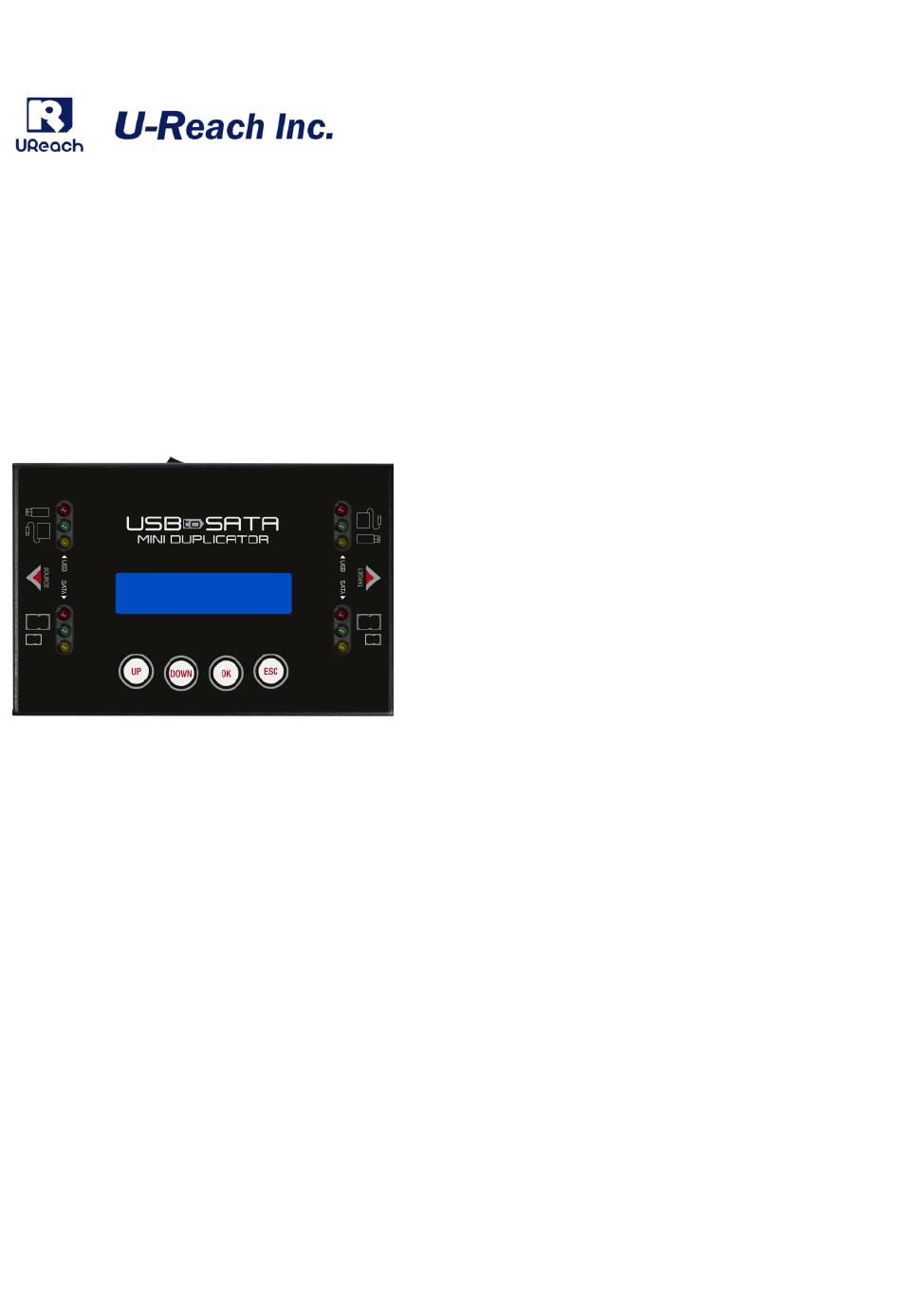

- Page 1 USB & SATA HDD Mini Duplicator Hybrid Series HQ200 User Guide v1.0 EN The Data Equipment – Duplication‧Inspection‧Sanitization www.ureach-inc.com...
-
Page 3: Table Of Contents
Content Index Content Index ......................3 Disclaimer of Warranties ..................6 Notice & Reminder ....................6 Important Notice ....................6 Safety Precautions ..................... 6 ⌘ Preparation Tips ..................7 ⌘ Notice Symbols ..................7 ➀Product Overview ....................8 ⌘Function ......................8 ⌘... - Page 4 (2)Full Erase ..................... 21 (3)DoD Erase – full erase for 3 times ............21 (4)DoD EraseComp – full erase 3 times + compare once ........ 21 (5)Secure Erase (Available for HQ200-H Only) ..........22 ● Erasing Steps ....................23 ➄How to Update BIOS ..................24 ➅Function Table ....................
-
Page 6: Disclaimer Of Warranties
Disclaimer of Warranties Hybrid series duplicators are made specifically for data backup with legal authorities from copyright owners. Any unauthorized action of copyright is strictly prohibited, and the manufacturer disclaims all warranties or representations of illegal actions by users. The manufacturer also disclaims any liability for any loss or damage due to not being able to perform its undertakings or provide any of the services attributable to any events or circumstances beyond our control. -
Page 7: Preparation Tips
⌘ Preparation Tips Make sure to use stable power supply. Please use at clean & dry environment. Please keep the environment well ventilated. When the duplicator operates, it is normal for the machine to heat up. Please do not move the duplicator during operation to ensure better operation. -
Page 8: ➀Product Overview
⌘Function ➀Product Overview The Hybrid series obtain products line to meet office usage. It can backup data between SATA and USB. Two models are available in different speed selection. The high-speed model supports high speed data transfer for SATA HDD/SSD at 18GB per minute and 2.4GB per minute for USB/USB-HDD. -
Page 9: Appearance

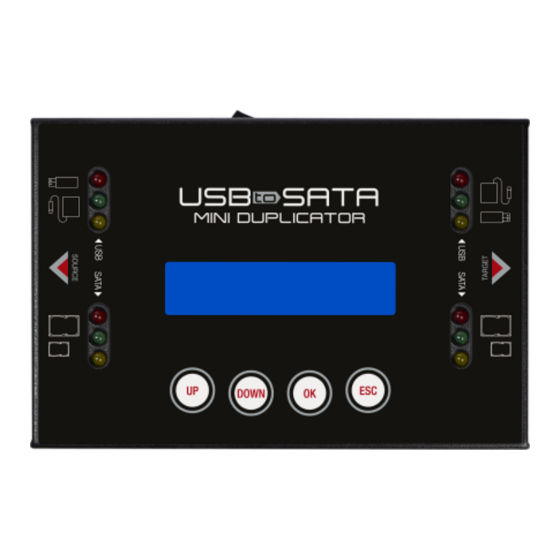

⌘Appearance ●Front View USB/HDD source port: Copy source for 2.5”/3.5”SATA HDD/SSD, USB drive, USB-HDD. USB/HDD target port: Copy target for 2.5”/3.5”SATA HDD/SSD, USB drive, USB-HDD UP: Up key, to go previous page, backward DOWN: Down key, to go next page, forward ... -
Page 10: Source & Target
●Source & Target ⌘Appliance Diagram USB/USB-HDD to USB/USB-HDD copy USB/USB-HDD to SATA HDD copy SATA HDD to SATA HDD copy SATA HDD to USB/USB-HDD copy USB port compatible with USB drive and USB-HDD Note • SATA port compatible with SATA HDD and SATA SSD •... -
Page 11: ➁How To Copy Hdd/Usb/Usb-Hdd
➁How to Copy HDD/USB/USB-HDD ⌘ Start to Copy Step 1: Prepare the source Prepare a source HDD/USB and target HDD/USB. Caution • It’s strongly recommended the source and target are the same capacity. Step 2: Place Source & Targets Place source HDD/USB to source port, targets HDD/USB to one target port. Source port Target ports... -
Page 12: Set Up Before Duplication
Step 3: Enter Function “1.Copy” Use ▲▼ keys to select “1.Copy”, and then press “OK”. Duplication will start to proceed. The information below shows related processing information on LCD during duplication. • It’s strongly recommended to execute “Compare” after duplication or use function of Note “Copy+Compare”... - Page 13 Analysis of Copy Area Setting Zones of Copy Area...
- Page 14 ➊ System and Files: (Quick Copy) It will copy source System and Files instead of the whole media. The system will analyze the source HDD/USB and identify the data area to copy. As long as the source data within the target capacity, the copy will be processed.
- Page 15 ➌ Whole Area: Support All Formats Mirror copy the whole source media, no matter of the content, format, partition or empty space. This mode does not analyze the data. [ Copy Area ] Whole HDD Entire 500GB whole area will be copied. ➍Percentage (%): Support All Formats Copy the selected percentage range of source HDD/USB.
-
Page 16: Set Tolerance Bad Track
●Copy area selection: Example: There are two partitions in one 500G HDD. Data and OS (90G) are saved in the partition. (C:30G/D:60G) Caution • It is recommended to execute Compare after Copy to confirm the accuracy. • It is recommended to copy data by function “3.Copy+Compare”. ※Set Tolerance Bad Track Select function "6.2 Skip Error"... -
Page 17: Troubleshooting When Duplication Fails
※Troubleshooting When Duplication Fails Check if too many bad tracks on HDD/USB can cause duplication failures. Check the setting of function “6.2 Skip Error”. [ Skip Error ] ● Make sure all ports/cables are properly and firmly connected. ●... -
Page 18: Check System Info
※Check System Info Check the system related information, “5.4 System Info”. This function shows the duplicator information such as model name and firmware version. HDD Dupe 1-1 Ver: 2.34.0 ※Check Read/Write Speed The speed checking functions are to measure the reading/writing speed by reading/writing methods. -
Page 19: ➂How To Compare Hdd/Usb Data
➂How to Compare HDD/USB Data ⌘ Confirm Duplication Accuracy ※Comparison Steps Step 1: Prepare source USB/HDD and copied target USB/HDD. Step 2: Place source USB/HDD to source port, target USB/HDD to one target port. Source ports Target ports Step 3: Enter “2.Compare” Use▲▼to select “2.Compare”... -
Page 20: ➃How To Erase Hdd Data
➃How to Erase HDD Data ⌘ Confirm HDD Data Sanitization Caution Please note that the data on the HDD will be erased after executing the function. All erase methods are designed for HDD erasing, available for SATA port only. ● Erase Modes Settings: There are 4 erase methods: Quick Erase, Full Erase, DoD Erase, Secure Erase. -
Page 21: Full Erase
(2)Full Erase The function will erase the whole sectors on the target. It will take longer time than quick erase. It will erase the data in HDD, please make sure you have backup all important data before using this function. [ 4.Erase ] 2.Full Erase ▼... -
Page 22: Secure Erase (Available For Hq200-H Only)
DoD EraseComp Method Note The erasing time of DoD EraseComp is 4 times longer than Full Erase mode. (5)Secure Erase (Available for HQ200-H Only) The international authorized high standard Secure Erase function. It overwrites every single track on the hard drive with factory default methods. Even HPA/DCO or other data area which are not able to load, can be erased all together. -
Page 23: Erasing Steps
● Erasing Steps ※Data Sanitization Step 1: Prepare USB or HDD Prepare USB device or SATA HDD/SSD for erase. Step 2: Place into Targets Insert HDD/USB for erase into target ports. Target ports Function 6.4 Erase Master is to determine erase source HDD or not. The default setting is Note "Disable erase source HDD". -
Page 24: ➄How To Update Bios
➄How to Update BIOS ⌘ Update System by USB Step 1: Download latest firmware Download the latest firmware from PC/notebook and save it to USB drive. Step 2: Enter 5.3. Update System Insert BIOS USB into source port. Enter function 5.3. Update System. Update will take about one minute to complete. -
Page 25: ➅Function Table
➅Function Table ⌘ HQ200-H Function Item & Description (Example based on FW2.34.0) 1.Copy Copy data from source to targets. 2.Compare Compare bit-by-bit between source and targets to make sure accuracy. Copy and Compare source to targets and immediately compare after finish 3.Copy+Compare duplication. - Page 26 6.2 Skip Error Set to ignore error of source HDD while copying. Set up parameter from 0 to 65535 or unlimited. 6.3.1.Normal Speed 6.3 USB Speed Select the proper transfer rate up to 25MB/s maximum. (*HQ200-H 6.3.2. Turbo Speed only) Select the proper transfer rate up to 40MB/s maximum.
- Page 27 ⌘ HQ200-S Function Item & Description (Example based on FW2.33.7) 1.Copy Copy data from source to targets. 2.Compare Compare bit-by-bit between source and targets to make sure accuracy. Copy and Compare source to targets and immediately compare after finish 3.Copy+Compare duplication.
- Page 28 Language Select preferred language interface, English or Japanese. Restore Default Back to original manufacturer setting.
-
Page 29: ➆Specification
➆Specification Product Name Hybrid USB to SATA Mini Duplicator Model HQ200-H HQ200-S Source: SATA HDD port and USB port Source/Target Ports Target: SATA HDD port and USB port Copy Targets 1-1 duplication Copy Media SATA SSD, SATA HDD, USB drive, USB-HDD SATA Copy Speed 18GB/min 7.2GB/min...
