  • Page 1 CF/CFast Series 1 to 1 Portable Copier User Manual v A.02...

  • Page 2: Table Of Contents

    Index CF121 v A.02 Product Disclaimer ........................3 Warranty ........................... 3 Piracy Statement ........................3 Before You Start ........................4 Notice Symbols ......................... 4 Hardware Overview ........................5 Function Table .......................... 6 Function ............................ 8 1. Copy ..........................8 2. Compare ......................... 9 3.

  • Page 3: Product Disclaimer

    U-Reach is not accountable for any incidental or consequential damages, including, but not limited to property harm, loss of time or data from use of any U-Reach products or any other damages attributable to product malfunction or failure of including without...

  • Page 4: Before You Start

    Before You Start Important Notice Carefully read the entire manual before operating. ● Make sure the source device is correct and functioning. ● Equal capacity of source and target is recommended for guaranteed data consistency. ● Using the Copy+Compare function provides the most flawless duplication. ●...

  • Page 5: Hardware Overview

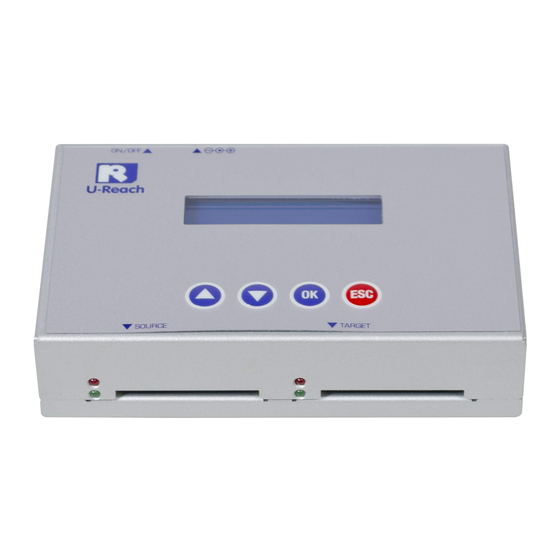

    Hardware Overview Front View Control Button ▲: Backward ▼: Forward OK: Confirm Esc: Cancel Source Port Red: Fail Green: Pass LCD Display Copy 7695M Total Data Capacity Function 0:27 (2)270M Copied Data Capacity Copied % Copied Time...

  • Page 6: Function Table

    Function Table Function Description 1. Copy Data and whole media duplication only. 2. Compare Bit-for-bit comparison between the source and target flash medias. First copies, then compares the target to the source once 3. Copy+Compare duplication is completed. This feature will show CF/CFast card’s brand, FW Version, S/N, 4.
  • Page 7 Copies the flash’s entire content, including the empty space. 7.2 Button Sound Enables or disables the audible beep. 7.3 Power Off Time Between Copy&Compare Sets the power off time between Copy and Compare. 7.4 CF Transfer Mode Sets data transmission speed. 7.5 Set to Default Reverts everything back to the original manufacturer settings.

  • Page 8: Function

    Function 1. Copy Before executing this function, please read “Setup Before Copy” to better understand the copy process and results. CF Duplicator Copy 7695M 1. Copy (Data) 0:27 (2)270M Copy Area Copy area setting ➡ [7. Setup >> 7.1 Copy Area] Before duplication, select the data area with "Copy area".

  • Page 9: Compare

    2. Compare The compare function checks the accuracy of copy result. After the copy finishes, go to function 2 and press "OK" to start the compare process. CF Duplicator 2. Compare 3. Copy+Compare This is the most convenient function. Rather than going to function [2.Compare], then pressing "OK"...

  • Page 10: Show Cf/Cfast Info

    4. Show CF/CFast Info Check CF card Information Go to function 4 and press "OK" to start to a read of CF/CFast card’s Information. It will show 4 Information. CF/CFast card’s brand, FW Version, S/N and capacity. Use ▲▼ to view the Information.

  • Page 11: Utility

    6. Utility 6.1 Do Format User is responsible for verification of targets’ quality. Testing a few Caution completed targets in a mass production environment for quality control is recommended. 6.1.1 Auto Format This function formats flash into FAT. Plug in the flash media and press "OK". The system will automatically detect its capacity, then format the media per its capacity.
  • Page 12 ★ Erase the Flash Card Flash data will be wiped out. Please make sure to backup all important Caution data before using this function. 6.2 Quick Erase This function erases flash data while keeping the format if the original flash format is FAT16/32.
  • Page 13 Note Use the▲▼buttons to view the status of each port during erase. 6.5 System Update Save the firmware in a CF/CFast card and insert the card to source port. Go to function [6.5] System Update, and press OK to update duplicator’s firmware. [Utility] 5.

  • Page 14: Setup

    7. Setup 7.1 Copy Area ➊ Copy Area: System and Files Also known as "Quick Copy”. The source’s format is automatically analyzed and if it’s recognizable, such as, FAT 16/32/64, NTFS, or Linux ext. 2/3/4, the system will copy the data only, rather than the entire flash.
  • Page 15 7.3 Power Off Time Between Copy+Compare The use of this setting is highly advised as it prevents data loss due to unstable flash. Users can set the time gap of power supply between copy and compare. The time gap can be set from 0 to 15 seconds. The default is "0". [Power Off Time Between] 7.4 CF Transfer Mode There are 7 CF/CFast transfer mode options to choose from.
