Summary of Contents for Aputure MT Pro

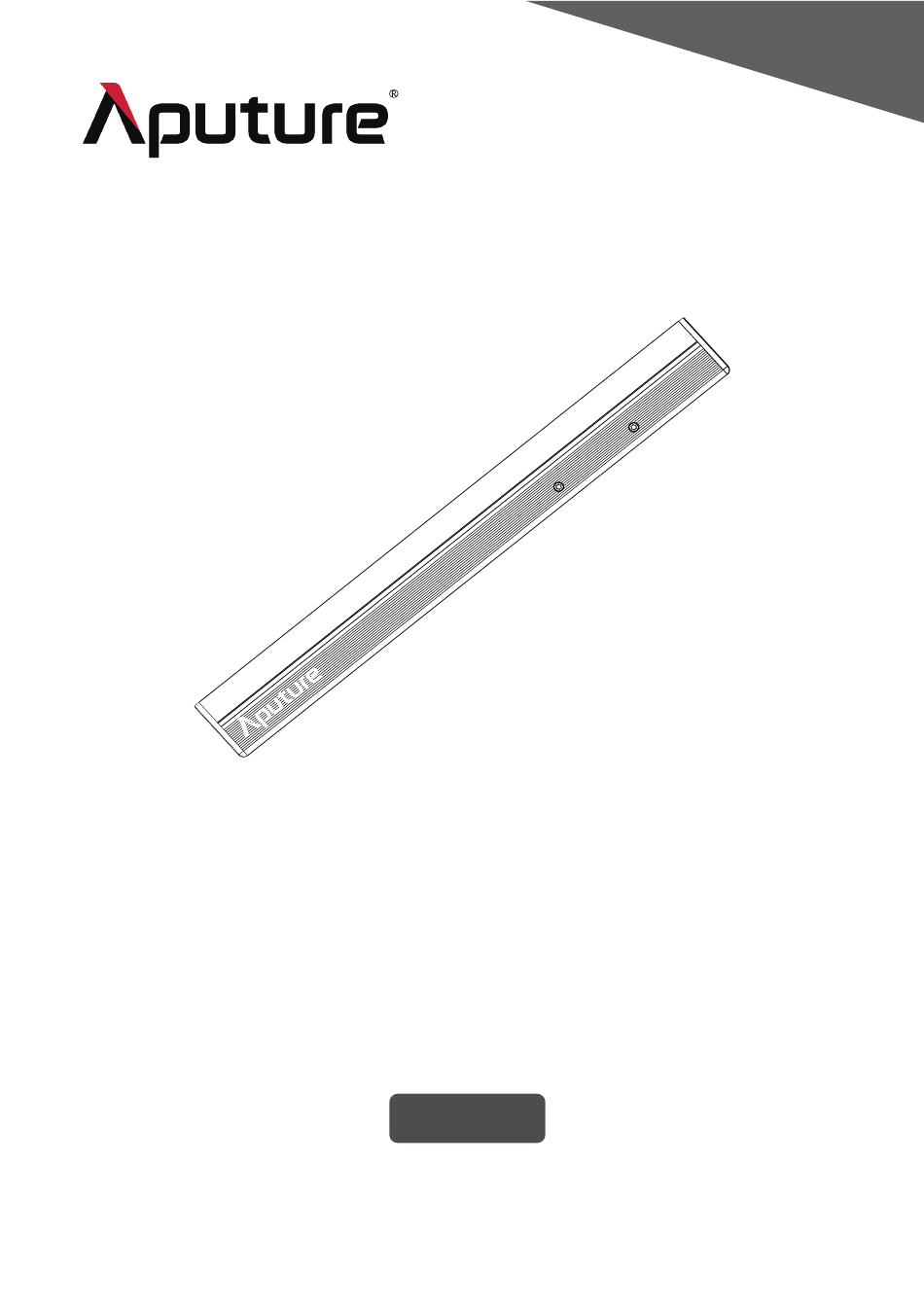

- Page 1 MT Pro Product Manual English...
-
Page 2: Important Safety Instructions
Aputure MT Pro is a full spectrum mini LED tube light for cinematographers andlighting professionals. Featuring total color and pixel control in a compact form factor, the MT Pro is your new filmmaking paintbrush.Granting you true creative freedom, the MT Pro utilizes advanced wireless connectivity with our innovative Sidus Link mobile app and the industry-standard Lumenradio CRMX for wireless DMX adjustability. -
Page 3: Fcc Compliance Statement
3. Consult the dealer or an experienced radio/TV technician for help RF Warning Statement: This device has been evaluated to meet general RF exposure requirements. * You can find a detailed user guide for this device on our website www.aputure.com. - 2 -... -
Page 4: Components List
Components List Please make sure all accessories listed below are found before using. If not, contact your seller immediately. MT Pro (1 pc) Fabric Grid (1 pc) Desktop Tripod (1 pc) Carrying Case (1 pc) Type-C Charging Cable 1m (1 pc) * The illustrations in the manual are only diagrams for reference. -
Page 5: Installations
1. Magnets 滚滚长江东逝水 Ferrous Metal Surface Ferrous Metal Surface WARNING Do not install MT Pro on any surface where the temperature is above 80°C, as this may damage the magnet. 2. Desktop Tripod Horizontal Installation Vertical Installation - 4 -... -
Page 6: Power On/Off
ON/OFF 5V/2A * Please use the included USB-C cable to charge MT Pro. Using a different cable won’t guarantee optimal charging. * Supports 5V/2A charging via charger or power banks. * Charging rate will slow down when the light is powered on. Turn the light off for optimal charging. - Page 7 3.3 CCT Press MENU to access the system menu, rotate and press the control wheel to select CCT mode. INT (Intensity): 0.0 - 100.0 % CCT (Correlated Color Temp.): 2000 K - 10000 K G/M (Green / Magenta adjustment): -1.0 - +1.0 3.4 HSI Press MENU to access the system menu, rotate and press the control wheel to select HSI mode.
- Page 8 Press MENU to access the system menu, rotate and press the control wheel to select DMX Setting. DMX Address: Choose the DMX address of MT Pro, press and hold the control wheel for 2 seconds to lock/unlock the DMX address (Prevent accidental touch to exit DMX mode) DMX Profiles: Rotate the control wheel and press to choose DMX profile.
- Page 9 BT Status: Rotate and press the control wheel to turn on/off Bluetooth. BT Reset: Reset the MT Pro Bluetooth connection, and your mobile phone or tablet will be able to connect to and control the light with Sidus Link App.
- Page 10 Press MENU to access the system menu, rotate and press the control wheel to select Exit. It will go back to the previous interface. 4. Wired DMX Control 4.1 Connect to a standard DMX controller Connecting DMX to an MT Pro hardwired OUTPUT DMX512 OUTPUT...
-
Page 11: Specifications
Signal Common 4.3 DMX Profile The MT Pro offers a variety of DMX modes. Please find a detailed overview of all DMX modes in the document, DMX Chart is available for free download on the Aputure official website https://www.aputure.com. 5. Using the Sidus Link APP You can download the Sidus Link app from the iOS App Store or Google Play Store for enhancing the functionality of the light. - Page 12 Photometrics Distance Bare Bulb Fabric Grid 0.5m 526 lux / 48fc 471 lux / 43fc 2700K 143 lux / 13fc 128 lux / 11fc 0.5m 532 lux / 49fc 476 lux / 44fc 3200K 144 lux / 13fc 129 lux / 11fc 0.5m 585 lux / 54fc 523 lux / 48fc...
- Page 13 Detailed Parameters of FX Control System FX 0% - 100% 2000 K - 10000 K Paparazzi Ⅱ -1.0 - +1.0 Intervals [ 0.2S - 1.0S ] - [ 2.0S - 18.0S ] Status Stop / Loop 0% - 100% -1.0 - +1.0 Mode 2000 K - 10000 K 1 - 360°...
- Page 14 0% - 100% Colors R / B / R+B / B+W /R+B+W Cop Car Ⅲ Single / Double / Quad / Quint / Quint all / Cycle Status Stop / Loop 0% - 100% 0 - 100% Party Light Ⅱ Speed 1 - 60S Stop / Loop...
- Page 15 Pixel INT 0% - 100% Bkgd INT 0% - 100% Pixel Size S / M / L 1 Way / 2 Way Departure Color 1 Black (Blackground Only )/ Two Pixel Chase Color 2 HUE: 30° / 60° / 90° / 120° / 150° / 180° / 210° / 240° / 270° / 300° / Color 3 300°...
