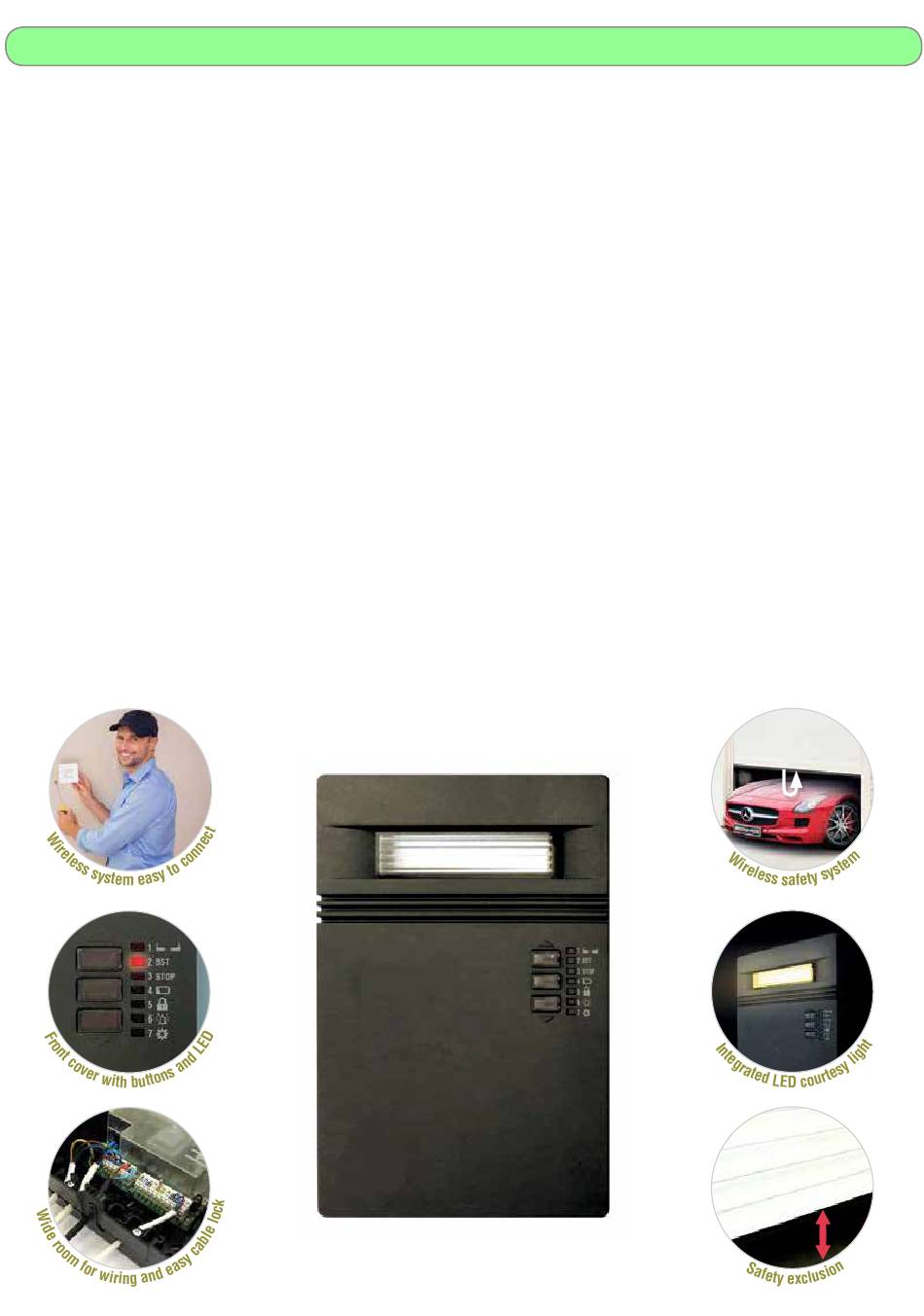

1. PRODUCT DESCRIPTION

TVRDS868B01
Control unit with integrated radio receiver for the remote control of tubular motors up to
700W, with built-in limit switch, for rolling shutters and rolling doors.
FEATURES
Compact plastic case with easy fixing and LED for alarms/status
Front cover with buttons for programming and up/stop/down commands
Integrated LED courtesy light
Wireless control via radio transmitters
Wireless safety edge with auto-test.
Bidirectional communication: door status is shown by the transmitter LED with different colour
Alarm function, in combination with shock sensor (TVSSH868A01 and BST25S) and integrated
speaker
CONNECTIONS & FUNCTIONING
Wide room for wiring and easy cable lock without need of cable glands
Wired inputs for photocells and safety edge (both resistive 8K2 and infrared)
Wired inputs for command push-button and emergency STOP push-button
Possibility to connect an external 230V~ flashing light (activated just during the manoeuvre) or
courtesy light.
2 Functioning modes: semi-automatic (automatic opening + hold-to-run closing) and automatic
Automatic closing with programmable pause time
Exclusion of the safety edge in the last part of the closure, in case of bumpy floor
"Holiday mode" to lock the control unit with the front cover
Max.
5 cm
3
