TELECO AUTOMATION TVRDS868B01 Installer Instruction Manual page 9

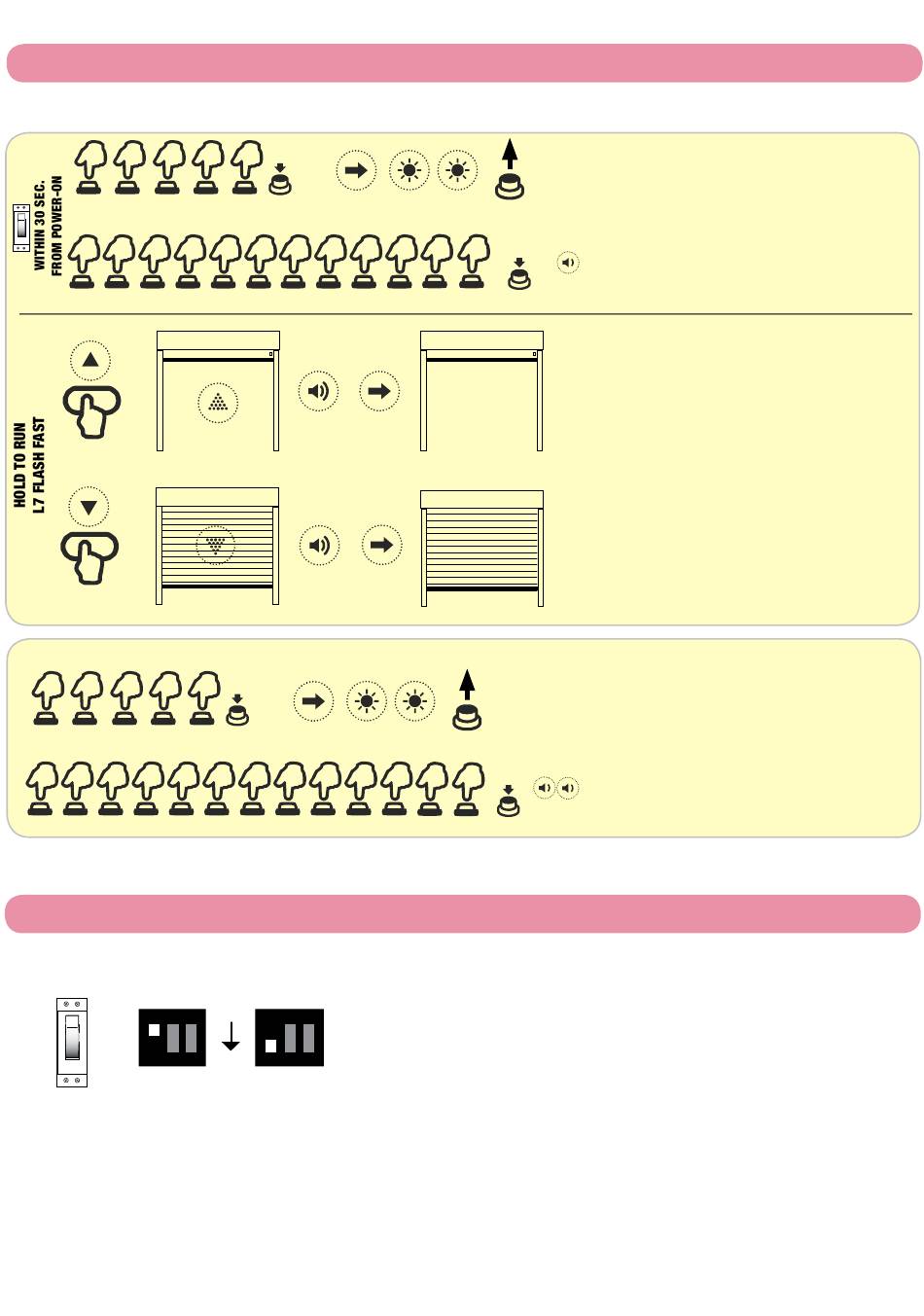

3.1 Limit switches configuration
Procedure only with hold to run commands.
P2
5x
P2
hold-to-run
hold-to-run
DEACTIVATION
P2
5x
P2
3.2 Deactivation of wireless safety system
This function is possible ONLY within 30 seconds from the power on of the control unit.
• Switch the unit on and move DIP1 to OFF within 30 seconds.
ON
ON
1 2 3
ON
• Press P2 button for 5 seconds and hold it down
The control unit will emit 6 beeps if the system has been correctly deactivated.
It is possible activate the safety system again, moving DIP1 from OFF to ON within 30 seconds from
power-on. After keeping pressed P2 button for 5 seconds, the control unit will emit 7 beeps.
Warning:
keep it
pressed
( 5 s)
L7 flashes
12x
keep it
pressed
( 5 s)
L7 flashes
slow
13x
ON
By default DIP1 is ON (system activated).
1 2 3
to
OFF
The safety devices are excluded!
Press P2 button five times and keep it
...
pressed for at least 5 seconds. L7 starts
flashing.
slow
Press P2 button twelve times and keep it
keep it
pressed
pressed for 5 seconds. The buzzer emits 1
( 5 s)
beep and L7 flash fast.
Open the door (in hold-to-run mode) in order
to set up the upper limit switch.
Close the door (in hold-to-run mode) in order
to set up the down limit switch.
Press P2 button five times and keep it
pressed for at least 5 seconds. L7 starts
...
flashing slow.
Press P2 button thirteen times and keep
keep it
pressed
it pressed for 5 seconds. The buzzer emit
( 5 s)
2 beeps.
