TELECO AUTOMATION TVRDS868B01 Installer Instruction Manual page 13

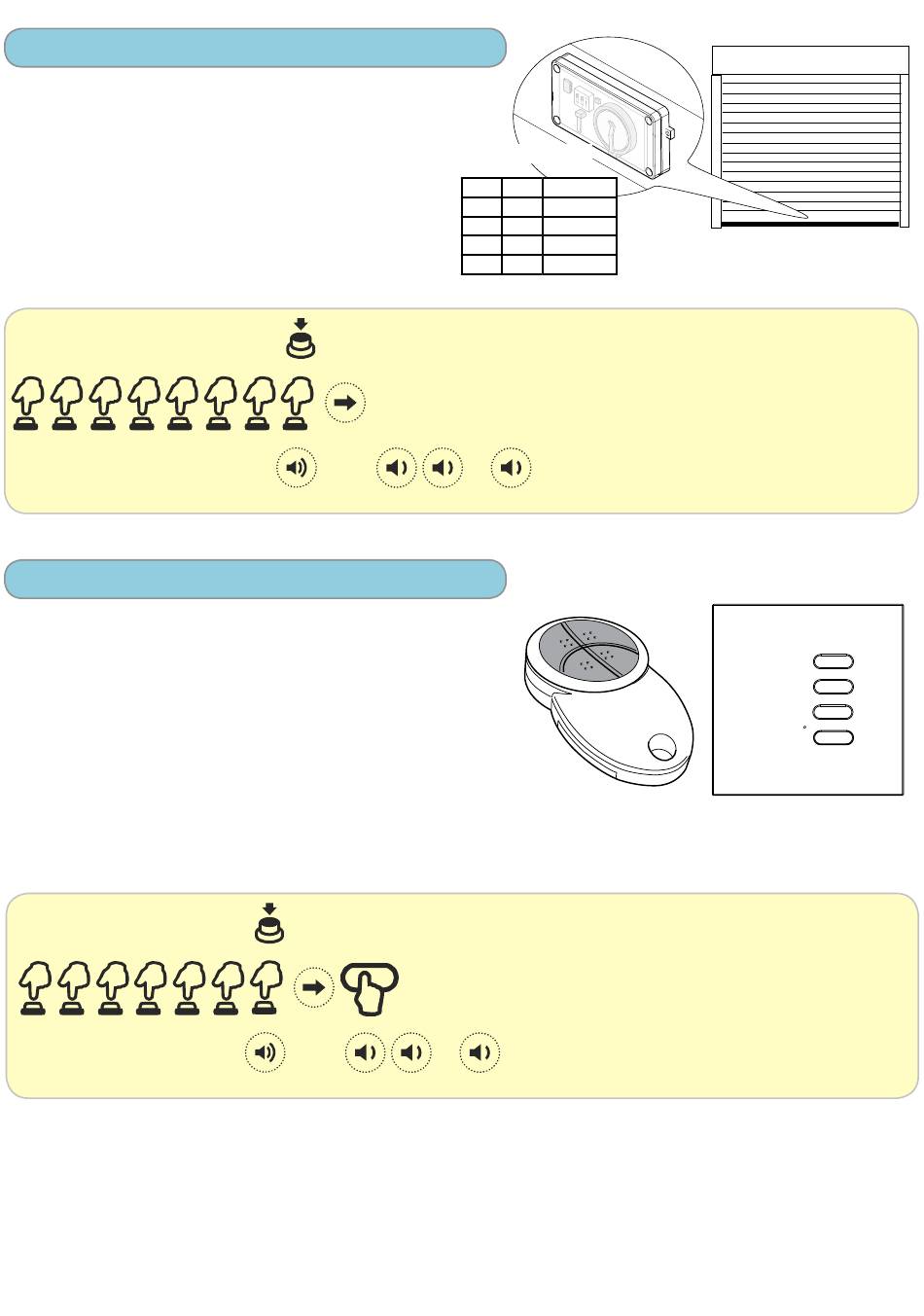

4.7 Alarm function: shock sensor memorization
Only for TVSSH868A01
necessary the shock sensor memorization).
The wireless shock sensor (optional) detects any
attempt of breaking or entering and send a signal
to the control unit that will activate the speaker
(optional) for 1 minute. L6 flashes. It is possible
to set the sensor sensitivity by means of the dip
switches (see at side). Sending any opening or
closing door command will stop the alarm.
Warning: optional speaker must be connected!
8x
P2
4.8 Single channel: door status request ("ASK")
In case of using bidirectional transmitters it's possible
to receive a feedback about the door status, shown by
means of the transmitter's LED:
- Red led:
- Blue led:
- Flashing led:
Warning: the remaining free buttons of the transmitter
should be memorized using the procedures 4.1, 4.2 or 4.3.
7x
P2
(with BST25S is not
keep it pressed
( )
continuous sound
open door
closed door
missing feedback
keep it pressed
( )
button to
memorize
continuous sound intermittent sound
TVSSH868A01
DIP1 DIP2 Sensitivity
Off Off High
On Off Medium
Off On Low
On On Extra-low
Press P2 eight times and keep it pressed.
The buzzer emits a continuous sound.
ACTIVATE THE
SHOCK SENSOR
Activate the shock sensor.
Once the memorization is successfully completed,
...
the buzzer emits a fast intermittent sound.
intermittent sound
Press P2 seven times and keep it pressed.
The buzzer emits a continuous sound.
Press any button of TRTXP or CH4 of TRTXI.
Once the memorization is successfully completed,
...
the buzzer emits a fast intermittent sound.
13
The garage door must
DOOR STATUS REQUEST ("ASK")
TRTXP868x04
be completly close.
ASK
(CH4)
TRTXI868xx04
