4. TRANSMITTER MEMORIZATION
In order to carry the transmitter memorization out it is necessary use the P2 button of the
front cover, entering the "programming mode" first.

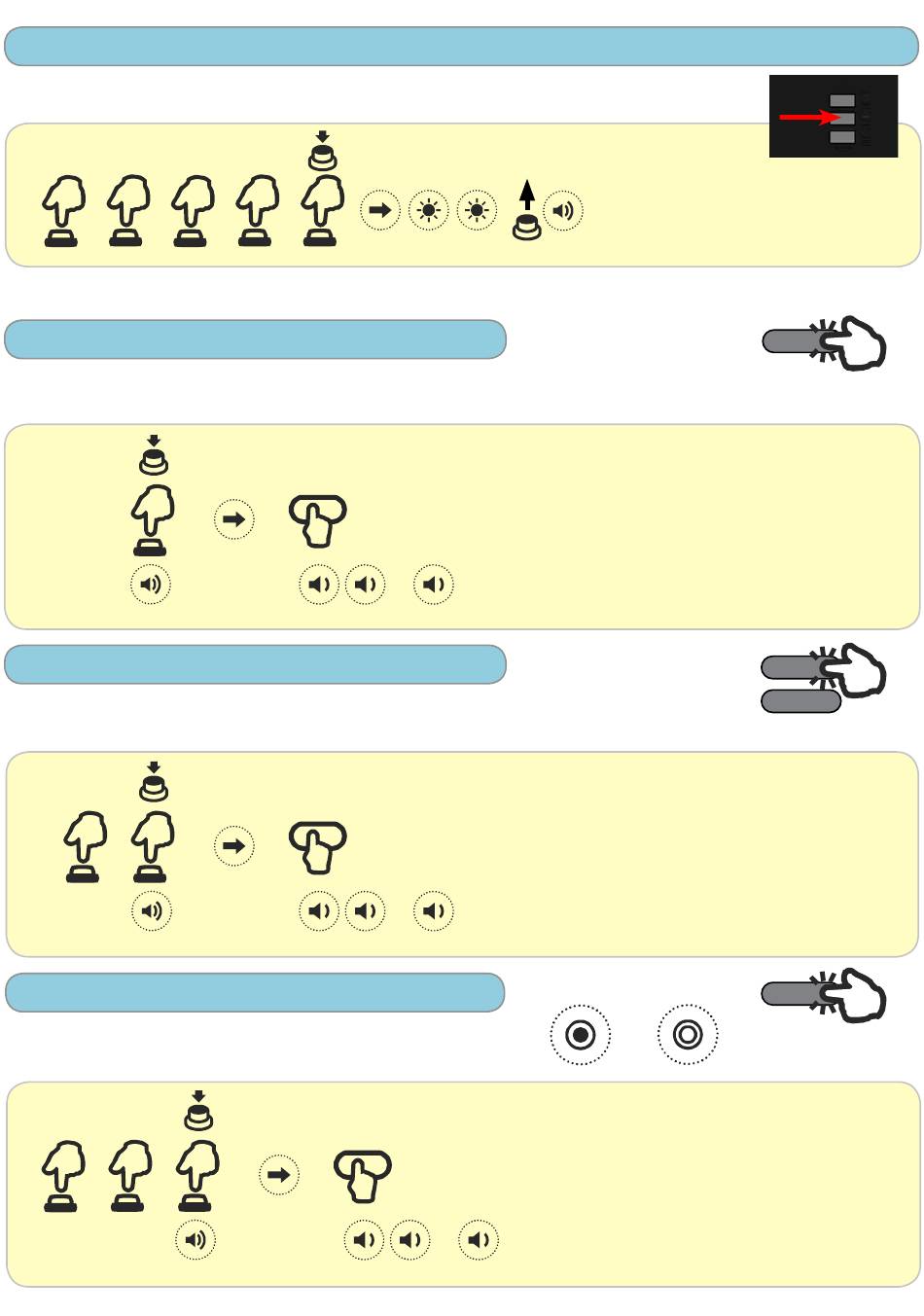

ENTERING THE PROGRAMMING MODE
P2 5x
WARNING: always check that L7 is flashing before carry the following memorizations out!
If no further button is pressed within 10 seconds the control unit exits automatically the programming mode.
4.1 Single channel memorization
Memorization of a single button of any transmitter,
with function OPEN - STOP - CLOSE
keep it pressed
( )
P2
continuous sound
4.2 Double channel memorization
Memorization of two buttons of any transmitter in one
step, with function OPEN (STOP) - CLOSE (STOP)
keep it pressed
( )
2x
P2
continuous sound
4.3 Single channel: courtesy light ON/OFF
Memorization of a single button of any transmitter,
with function LIGHT ON - LIGHT OFF
(
3x
P2
continuous sound
keep it pressed
( 5 s )
button to
memorize
...
intermittent sound
button to
memorize
...
intermittent sound
keep it pressed
)
button to
memorize
intermittent sound
...
L7 flashes
OPEN - STOP - CLOSE ►
Press P2 once and keep it pressed.
The buzzer emits a continuous sound.
Press any button to memorize.
Once the memorization is successfully completed,
the buzzer emits a fast intermittent sound.
Press P2 twice and keep it pressed.
The buzzer emits a continuous sound.
Press any button of the pair to memorize.
Once the memorization is successfully completed,
the buzzer emits a fast intermittent sound.
LIGHT ON - LIGHT OFF ►
Press P2 three times and keep it pressed.
The buzzer emits a continuous sound.
Press any button of the pair to memorize.
Once the memorization is successfully completed,
...
the buzzer emits a fast intermittent sound.
11
Press P2 five times and keep it pressed
for at least 5 seconds. L7 starts flashing.
OPEN (STOP) ►
CLOSE (STOP) ►
P2 P2
(STOP) (STOP)
