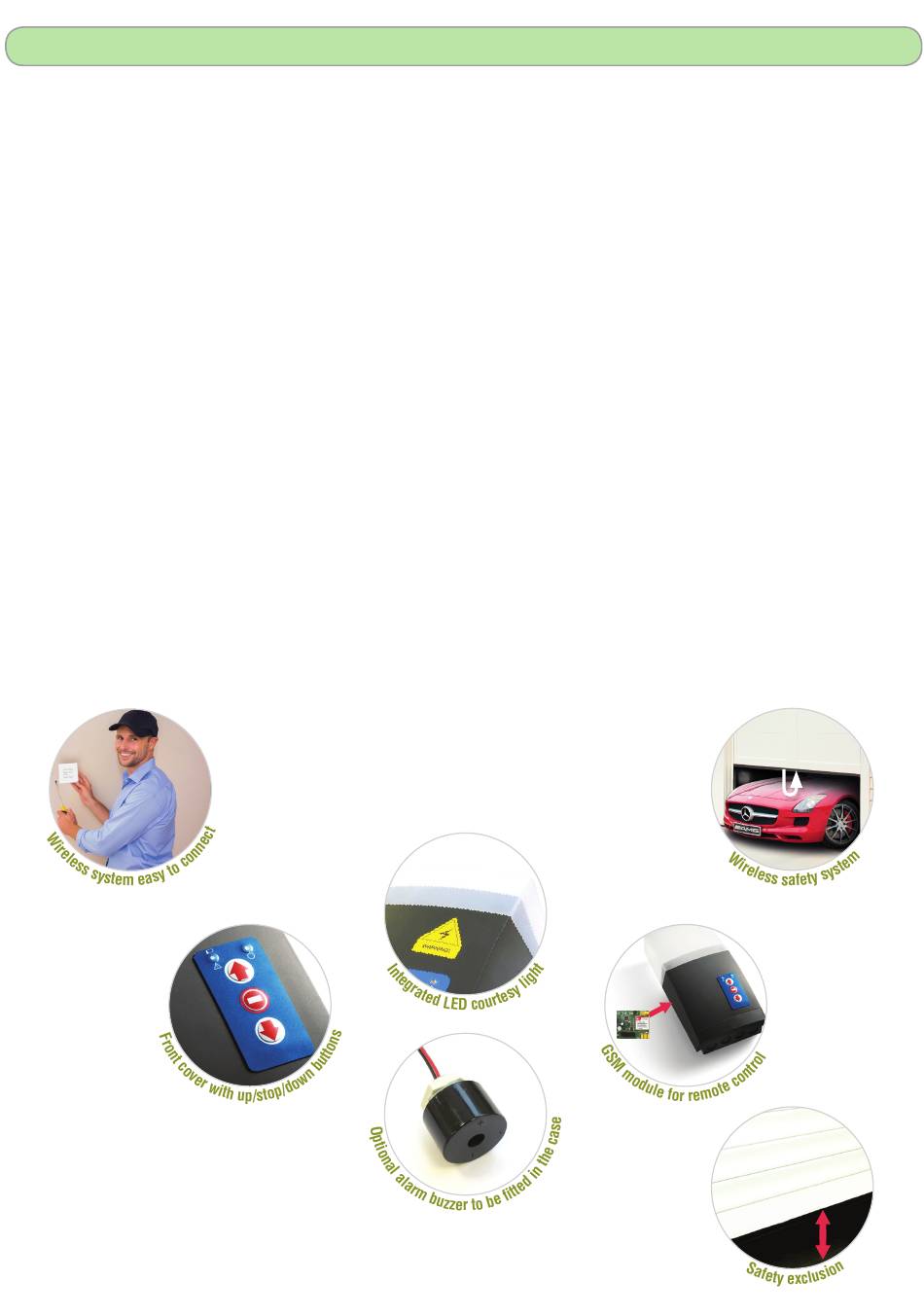

1. PRODUCT DESCRIPTION
TVRPS868E01
Control unit with integrated radio receiver for the remote control of tubular motors up to
700W, with built-in limit switch, for rolling shutters and rolling doors.
FEATURES
Plastic case with easy fixing
Front cover with up/stop/down buttons
Integrated LED courtesy light
Wireless control via radio transmitters
Wireless safety edge with auto-test
Bidirectional communication: door status is shown by the transmitter LED with different colour
Socket for GSM module (GSM900), for the remote control of the system
Alarm function, in combination with shock sensor (TVSSH868A01 and BST25S) and integrated speaker
CONNECTIONS & FUNCTIONING
Wired inputs for safety edge (both resistive 8K2 and infrared)
Wired inputs for command push-button and emergency STOP push-button
Possibility to connect an external 240V~ courtesy light
2 Functioning modes: semi-automatic (automatic opening + hold-to-run closing) and automatic
Automatic closing with programmable pause time
Exclusion of the safety edge in the last part of the closure, in case of bumpy floor
"Holiday mode" to lock the control unit with the front cover
Max.
5 cm
3
