Light Output Mode; Factory Setting - TELECO AUTOMATION TVRDS868B01 Installer Instruction Manual

3.3 Exclusion of safety edge in the last 5 cm of the closure
In case of uneven floors, it could be necessary deactivating the safety edge in the last part of the closure (not
more than 5 cm to comply with the standards) in order to avoid any accidental activation of the safety edge.
This procedure must be performed by qualified installer only, who will take charge of its correct application.
WARNING: this procedure can be used only for doors which require more than 10 seconds each manoeuvre. The
exclusion of the safety edge is applied only if the closure starts from the upper limit switch and it is not stopped.
P2
5x
P2
hold-to-run
DEACTIVATION
P2
5x
P2

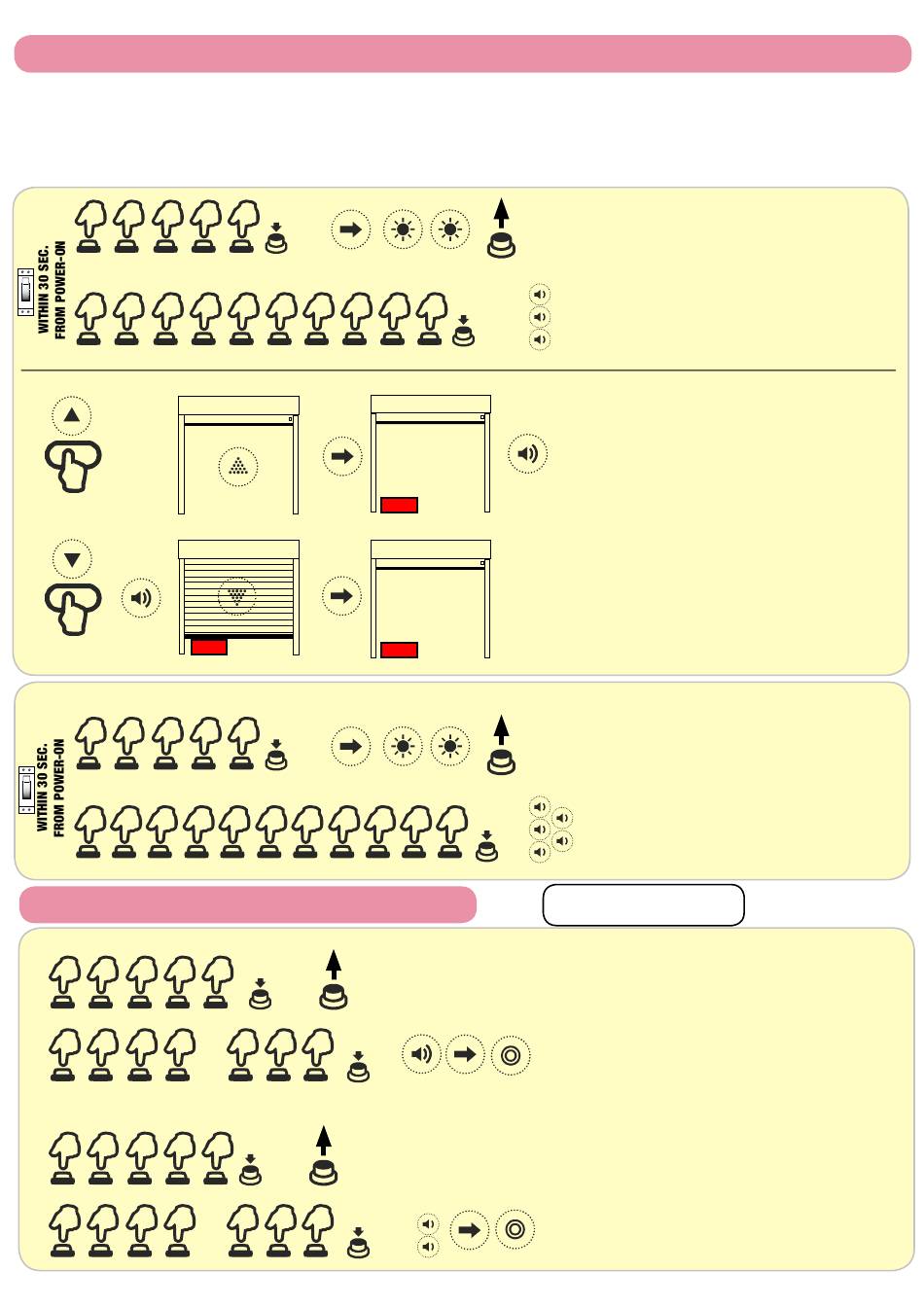

3.4 LIGHT OUTPUT MODE

MODE: COURTESY LIGHT
5x
P2
...
14x
P2
MODE: FLASH OUTPUT
5x
P2
...
P2 15x
keep it
pressed
( 5 s)
L7 flashes
10x
X
keep it
pressed
( 5 s)
L7 flashes
11x
keep it
pressed
( 5 s)
keep it
pressed
( 5 s)
keep it
pressed
( 5 s)
keep it
pressed
( 5 s)
Press P2 button five times and keep it
...
pressed for at least 5 seconds. L7 starts
flashing.
Press P2 button ten times and keep it
keep it
pressed
pressed for 5 seconds. The buzzer emits
( 5 s)
3 beeps.
Open the door completely by means of
a memorized transmitter. The buzzer emits
a long beep when the upper limit switch is
reached. Put on the floor, exactely under the
door, a sturdy object not more than 5 cm high.
max. 5 cm
Close the door (in hold-to-run mode), with
no interruption. The door will stop at the
obstacle and the control unit will make a
long beep. Open the door completely and
remove the object. Close the door to verify the
correct application of the procedure.
Press P2 button five times and keep it
pressed for at least 5 seconds. L7 starts
...
flashing.
Press P2 button eleven times and keep it
keep it
pressed
pressed for 5 seconds. The buzzer emits 5
beeps.
( 5 s)

Factory setting

FLASH OUTPUT
Press P2 button five times and keep it
pressed for at least 5 seconds.
Press P2 button fourteen times and keep
it pressed for 5 seconds. The buzzer emits
1 beep.
Press P2 button five times and keep it
pressed for at least 5 seconds.
Press P2 button fifteen times and keep it
pressed for 5 seconds. The buzzer emits
2 beeps.
