3. PRELIMINARY CHECK AND INITIAL START-UP
• Step 1: motor limit switch setting
A proper connection box should be used to set the limit switch before wiring the motor in the control unit
or follow the procedure described on par. 3.1.
• Step 2: motor connection and powering the board up
Once the limit switches are set connect the motor to control unit and start the system up.
The buzzer emits 3 quick sounds if the memory is empty or 1 long sound if the memory has radio codes in.
After the power-on, the control unit executes only opening commands until the door is fully opened.
Check the direction of the door; if the door is travelling in the wrong direction:
1- STOP the manoeuvre
2- Switch the control unit off
3- Swap BLACK and BROWN motor wires over - terminals 5 & 7
4- Power the board up again

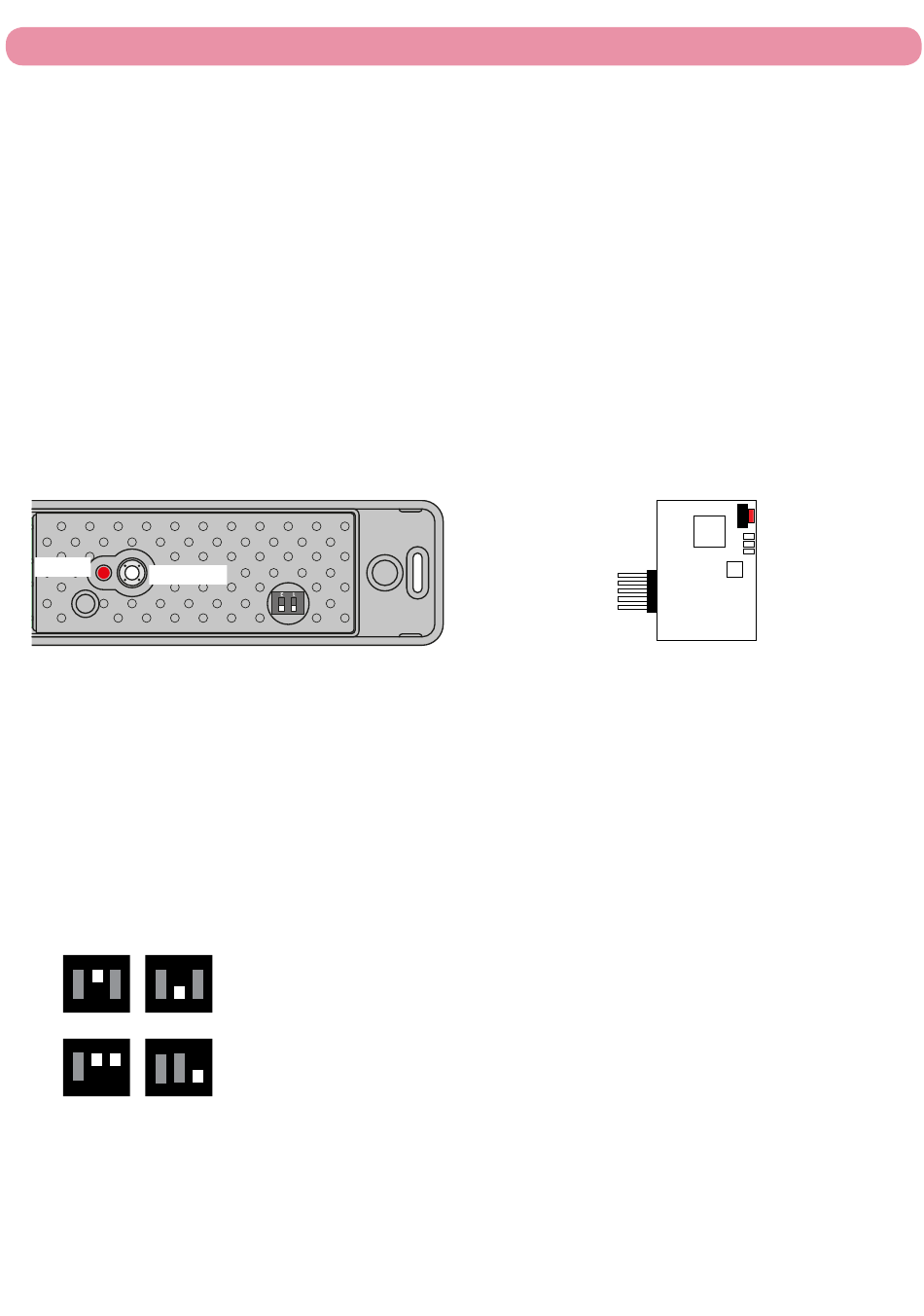

• Step 3: activation of the wireless safety device system
Check that the bottom slat transmitter (SLAVE) is supplied by the batteries, the voltage selector is in the right
position and all the connections are correctly made, as decribed at par. 2.2.
led
button
+
1- Push the button of the radio card (MASTER) for 2 seconds, L1 and L2 led will flash.
2- Push the button of the bottom slat transmitter (SLAVE) for 2 seconds. Its led will flash.
In case of correct memorization L1 will costantly flash.
Check the system pressing the button of the bottom slat transmitter (SLAVE) and keeping it pressed:
- Slave led solid ON = OK
- Slave led flashing = No wireless communication
- Master L1 led must costantly flash
In case of problem, the system can be totally excluded with the procedure 3.3.
• Step 4: functioning mode
ON ON
1 2 3 1
ON ON
1 2 3 1
In case of any problem, refer to the paragraph "Troubleshooting" (par. 9).
WARNING: the control unit executes a brief inversion of the movement (1 second) if any error occurs.
In case that the safety devices (except for TB input) are defective or they have been activated, it is
possible to operate the door anyway, keeping pressed the command button for more than 5 seconds.
The control unit will automatically switch to hold-to-run mode.
DIP2 ON: AUTOMATIC mode.
OFF: SEMI-AUTOMATIC mode. Automatic opening and hold-to-run closing.
2 3
The automatic closure function is deactivated.
DIP2=DIP3 ON:
This function has effect only when the door is totally open.
2 3
DIP3 OFF: Automatic closure function deactivated (default setting).
BOTTOM SLAT
TRANSMITTER
(SLAVE)
Automatic closure function activated. Default time is 30 sec.
8
button
L3 led
L2 led
L1 led
RADIO CARD
(MASTER)
