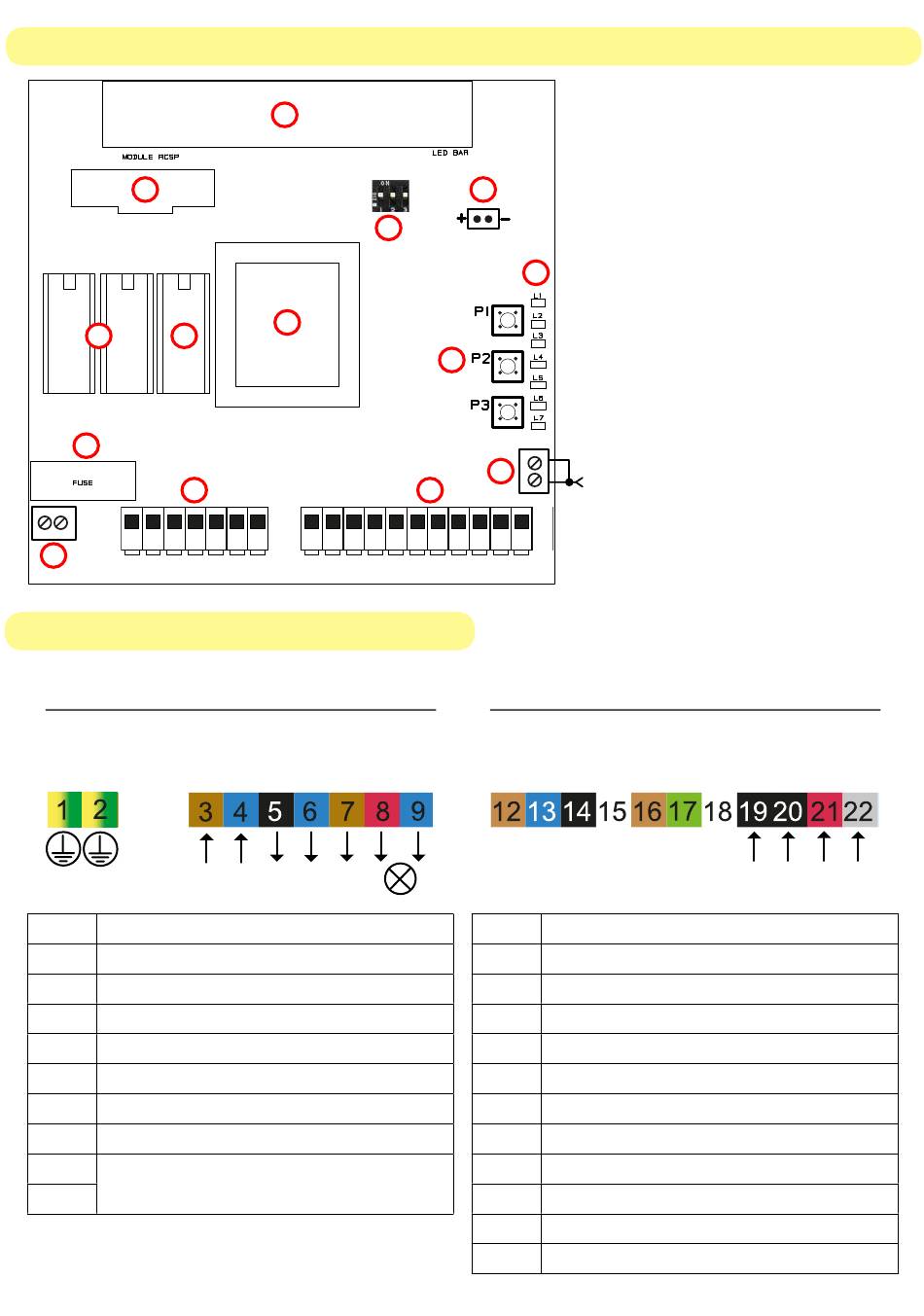

2.3 Control unit diagram

Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
Tel. +39.0438.388511 Fax +39.0438.388536 Tel. +39.0438.388511 Fax +39.0438.388536
Web site: www.telecoautomation.com Web site: www.telecoautomation.com
9
11 12
3
ETI-MORS-RDSB02
ETI-MORS-RDSB02
1
14
Da stampare a colori Da stampare a colori
3 4 5 6 7 8 9

2.4 Electrical connections

High voltage terminals
GND
Line IN
L N
# CONNECTION
1 Motor Ground
2 230V~ Power supply - Ground
3 230V~ Power supply IN - LIVE
4 230V~ Power supply IN - NEUTRAL
5 Motor - OPEN
6 Motor - COMMON
7 Motor - CLOSE
8
230V~ LIGHT OUTPUT
(300W max. lamp)
9
8
13
12 13 14 15 16 17 18 19 20 21 22
230V LIGHT
MOTOR
output
Open COM Close
10
6
7
5
4
2
Wired
photocells
< -- see pag. 7 for connections -- >
# CONNECTION
12 Photocells power supply (+12V)
13 Safety common (COM)
14 Photocells power supply (0V)
15 N.C. contact FTC (photocells)
16 Infrared/8K2 safety edge input (brown)
17 Infrared/8K2 safety edge input (green)
18 Infrared/8K2 safety edge input (white)
19 Push-button common (COM)
20 Push-button (step-by-step, N.O.)
21 Emergency STOP push-button (N.C.)
22 Emergency STOP push-button common
6
1 - High voltage terminals
2 - Low voltage terminals
3 - 5A fuse
4 - Aerial connection
5 - Programming/command buttons
6 - Dip switches
7 - Status/alarm LED
8 - LED courtesy light
9 - Socket for radio card (MASTER)
10 - Alarm buzzer output
11 - Manoeuvre relays
12 - Common relay
13 - Transformer
14 - Ground terminal
Low voltage terminals
Wired Push-
infrared/8K2 button
safety edge (TD)
COM
Emergency
STOP (TB)
TD TB
COM
