ADS7066 EVM Initial Setup

3 ADS7066 EVM Initial Setup
The instructions to set up the ADS7066 for evaluation follow:
3.1 EVM Plug-In Hardware Setup Instructions
The EVM and PAMboard come packaged separately. For correct functionality, the boards need to be
installed properly.
To install the EVM to the PAMboard, stack the ADS7066EVM-PDK board on the PAMBoard. Make sure
the 20-pin connector (J1, J3) on the ADS7066 is mapped to left connector on the PAMBoard, and the
EVM connector (J4, J2) is mapped to right connector on the PAMBoard. The silk screen on the ADS7066
must match with the PAMBoard.
Make sure the USB is not plugged in during this installation.
Connect the PAMBoard micro USB data port to an available USB port on the PC.

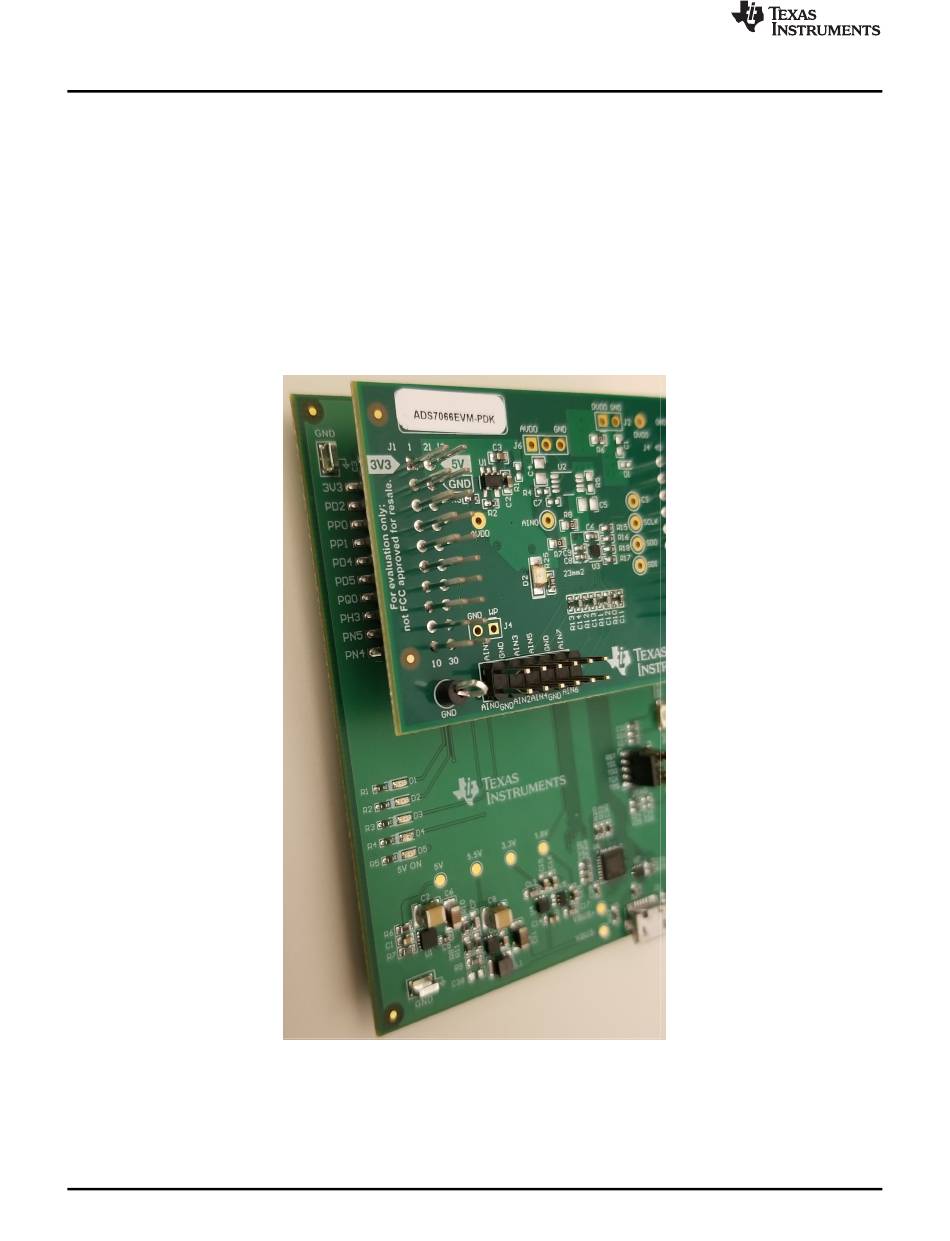

Figure 4. ADS7066EVM Lined up With PAMBoard (Left View)
6
ADS7066EVM-PDK Evaluation Module
Figure 4 shows the correct installation. The board headers must be flush.
