ADS7066 EVM Initial Setup
3.3.3 Data Capture Tab
The data capture tab displays the conversion results of the sampled data of the enabled channels. As
Figure 12 shows, clicking the red Capture button commences a sample data set. This page also displays
the sampling mode configuration used to capture the data. There is also a checkmark option to repeatedly
capture the sample size selected. This tab features two pages to display both the analog input and the
digital inputs:
• Analog Inputs: The sample and conversion results for each enabled analog input is displayed in this
page. The results can be displayed in three methods: time domain, Fast Fourier transform (FFT), and
histogram.
• Digital Inputs: The enabled digital input channels are displayed in this page.
See Section 3.3.3.1
12
ADS7066EVM-PDK Evaluation Module
for more information on capturing data.

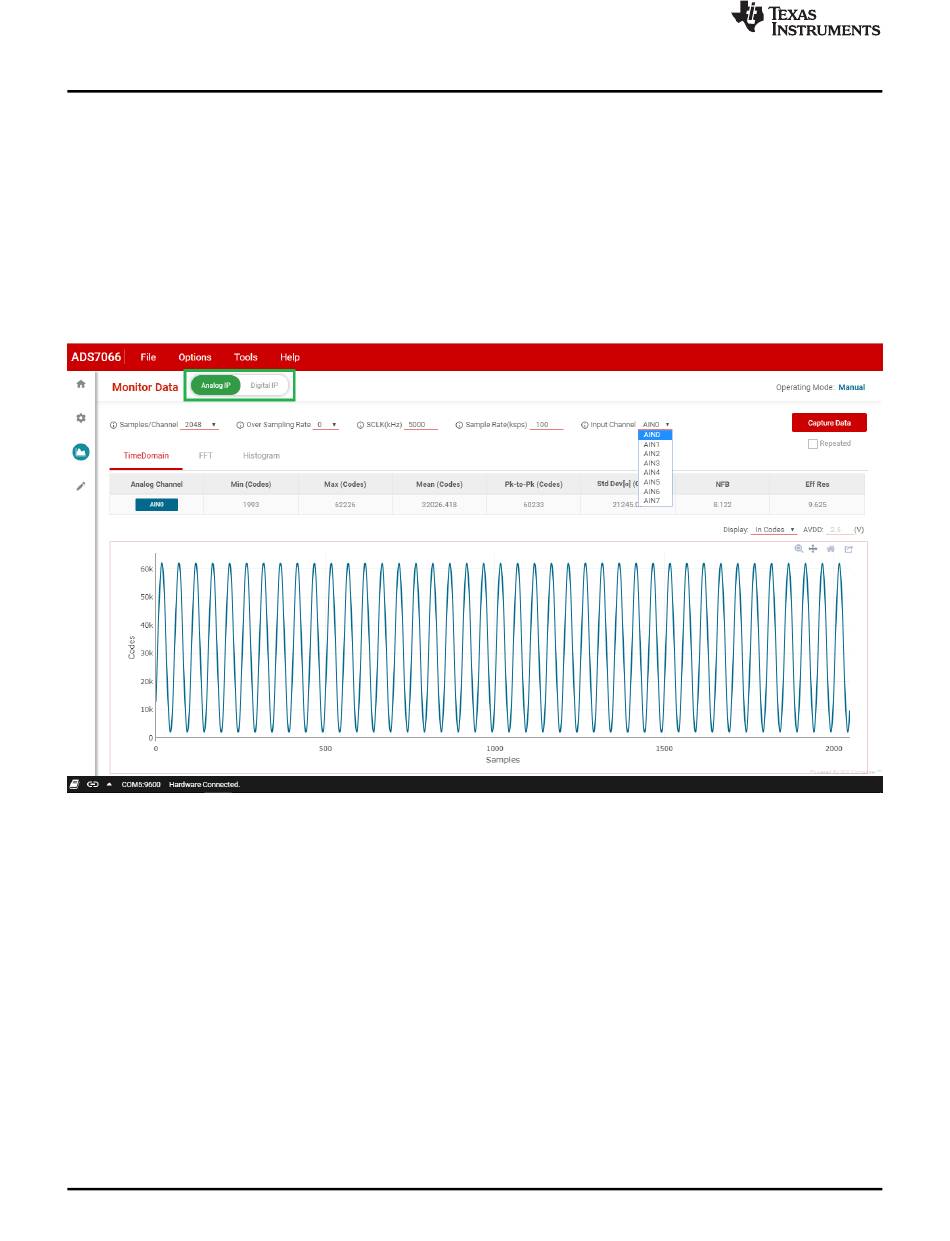

Figure 12. ADS7066 Data Capture Tab
