ADS7066EVM Overview
2
ADS7066EVM Overview
This section describes various onboard components that are used to interface the analog input, general-
purpose inputs/outputs (GPIOs), digital interface, and provide power supply to the ADS7066 device.
Figure 3
shows an ADS7066 board overview.
4
ADS7066EVM-PDK Evaluation Module

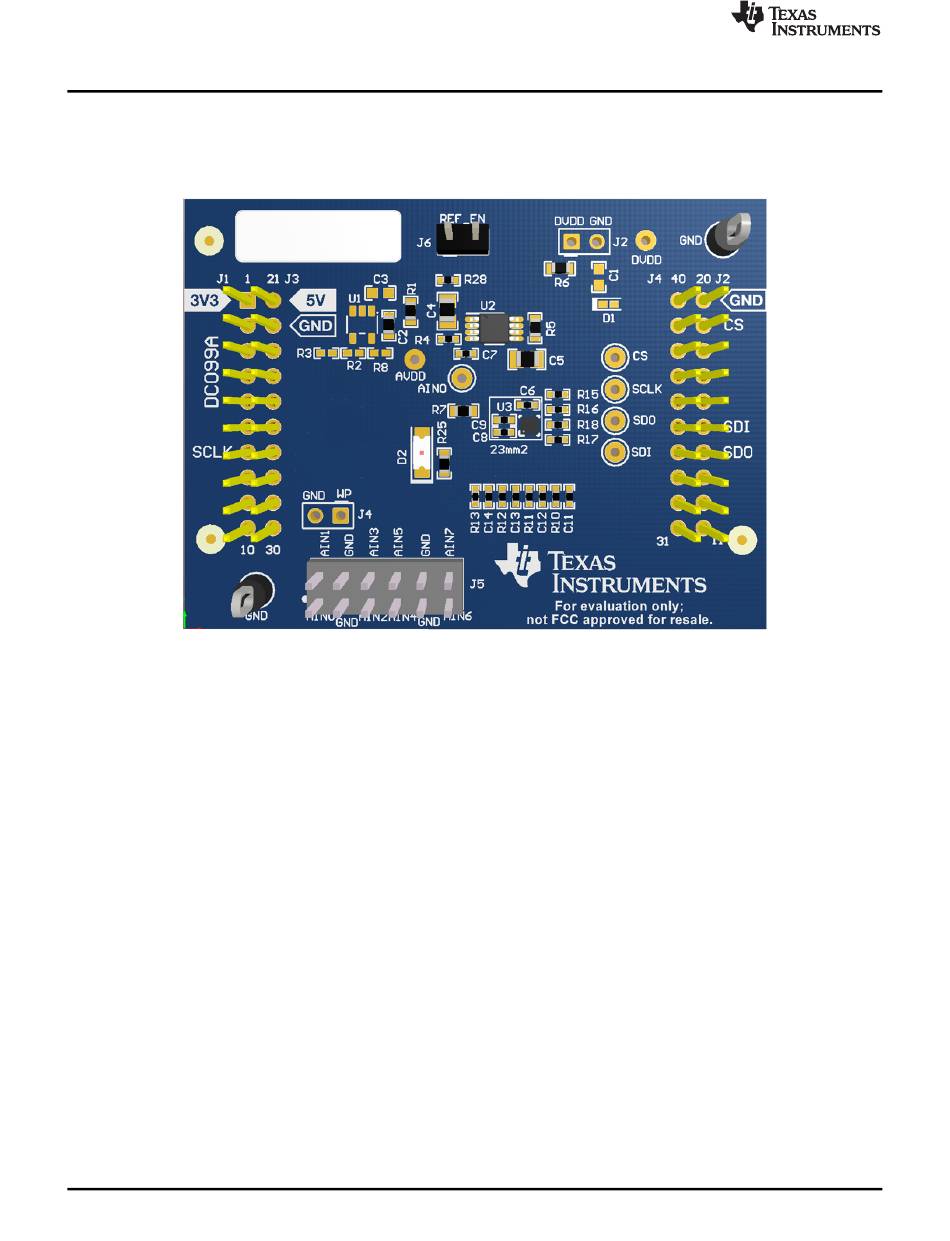

Figure 3. ADS7066 EVM Board
Copyright © 2020, Texas Instruments Incorporated
SBAU342A – February 2020 – Revised June 2020
Submit Documentation Feedback
