3.3.3.1 Analog Input Data Capture Features
This section describes the features available in the Analog IP data capture display of the GUI. This page
auto updates to reflect the inputs in
displays the configuration.
The analog input page provides an interface to the conversion results of the analog input channels.
Analog data is captured, as shown in
inputs page also provides user options for the following:
• Number of samples per the enabled analog input channels
• A drop-down option for increasing the oversampling rate
• A drop-down option to change the SCLK frequency
• A drop-down option for entering the desired sampling rate
• A drop-down option for selecting input channel displayed when in manual mode. When in
Autosequence, all channel selected would be displayed simultaneously
The Analog IP also displays a table with helpful attributes of the sampled data. The minimum and
maximum sample code are displayed, followed by the peak-to-peak range of the sampled data. The
standard deviation in codes, noise-free bits (NFB), and the effective resolution are also automatically
displayed after every data capture.
Within the Analog IP page, the captured samples can be displayed in three different formats:
• Time Domain
• Fast Fourier Transform (FFT)
• Histogram
SBAU342A – February 2020 – Revised June 2020
Submit Documentation Feedback
Section 3.3.2.2
Figure 13, by clicking on the Capture Data button. The analog

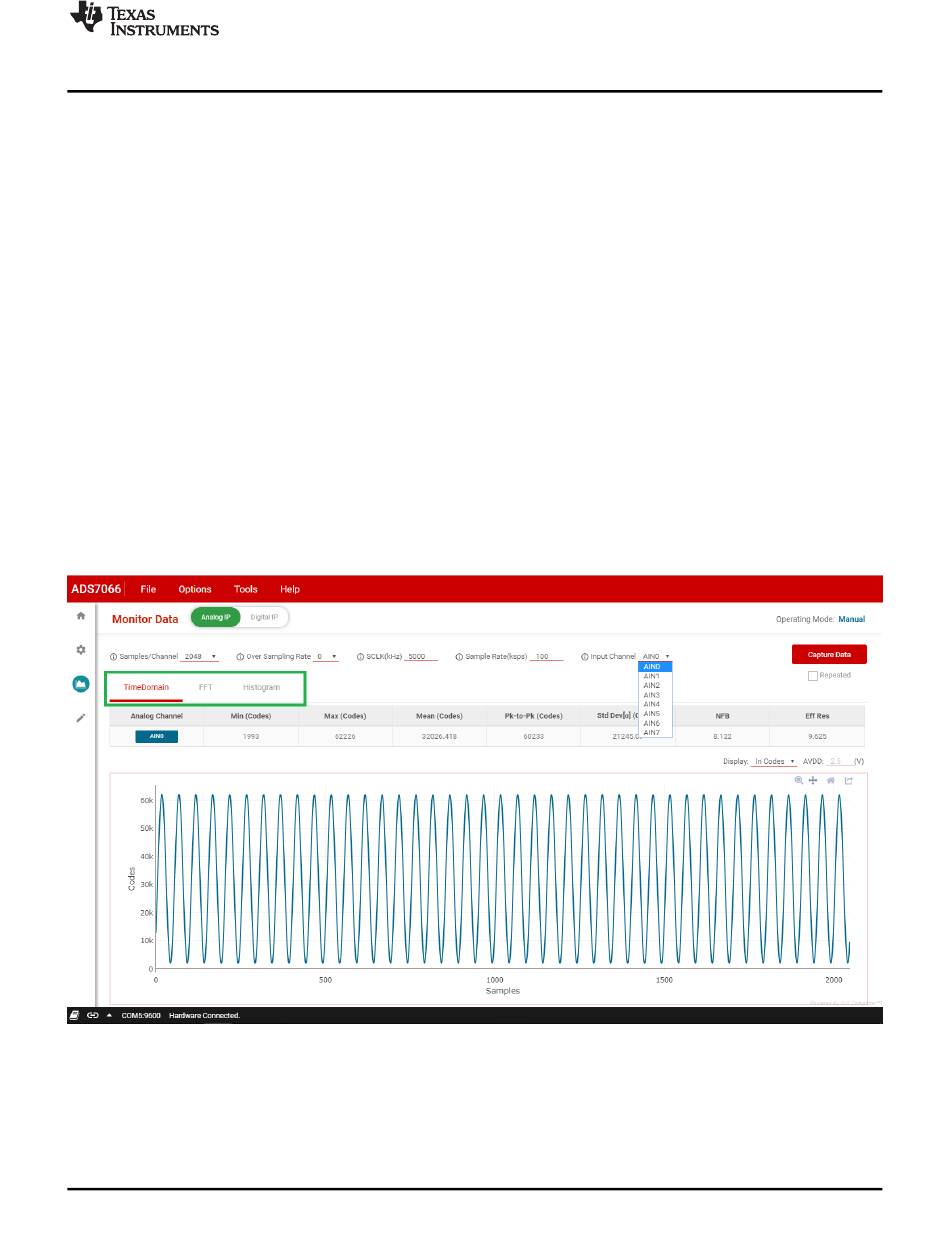

Figure 13. Analog IP Data Capture Tab Options
