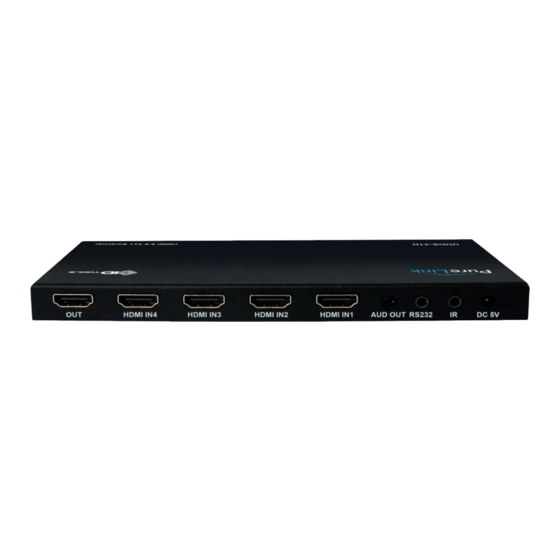

UHDS-41R Owner's Manual
4 x 1 HDMI 2.0 Ultra HD/4K HDR Switch
Distribution:
PureLink GmbH
PURELINK
535 E CRECENT AVE
RAMSEY, NJ, 07446
Tel: 201.488.3232
Fax: 201.621.6118
E MAIL :
sales@purelinkav.com
www.purelinkav.com
For technical support, contact:
support@purelinkav.com
Available from B2B Online Portal
Advertisement
Table of Contents
Related Manuals for PureLink UHDS-41R
Summary of Contents for PureLink UHDS-41R

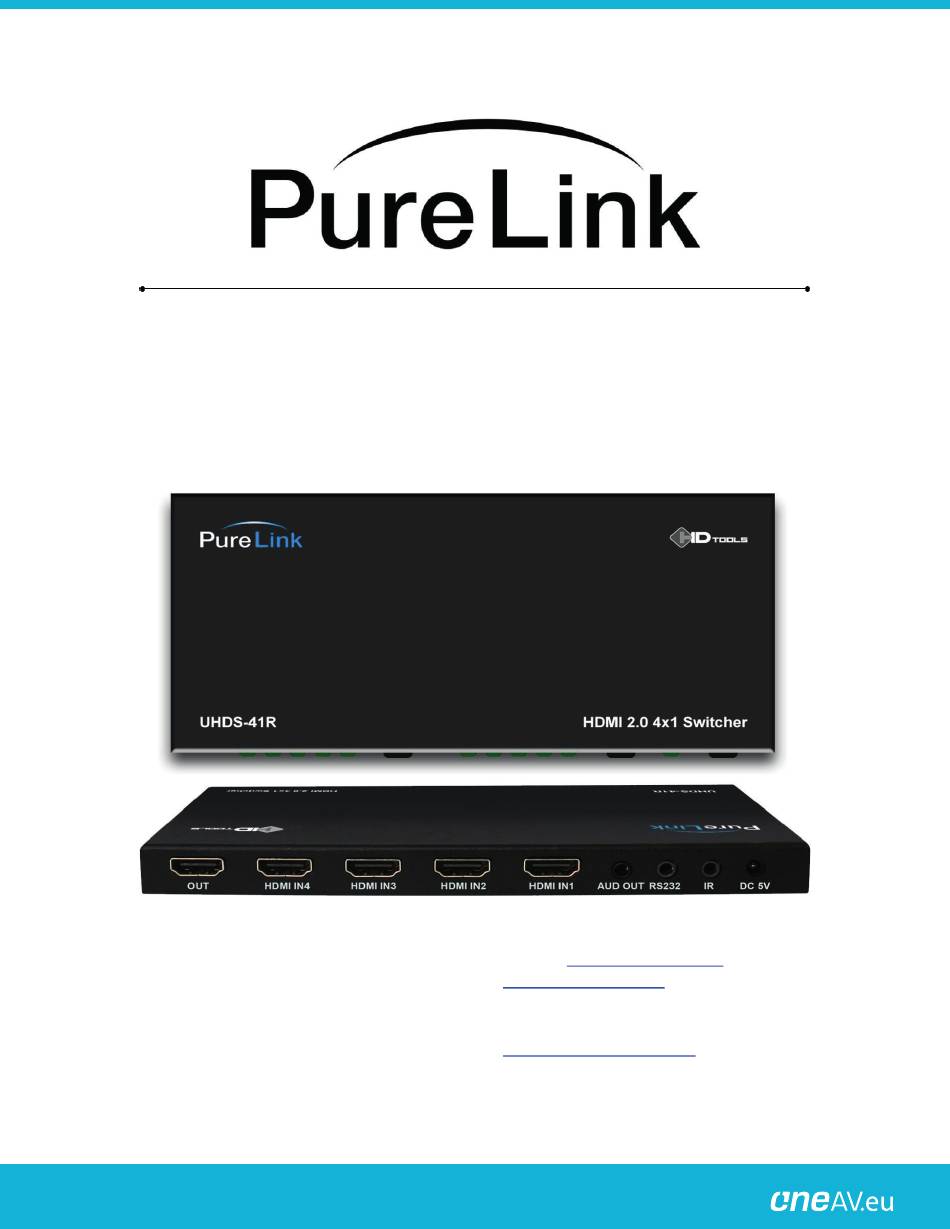

- Page 1 UHDS-41R Owner’s Manual 4 x 1 HDMI 2.0 Ultra HD/4K HDR Switch E MAIL : sales@purelinkav.com PURELINK www.purelinkav.com 535 E CRECENT AVE RAMSEY, NJ, 07446 For technical support, contact: Tel: 201.488.3232 support@purelinkav.com Fax: 201.621.6118 Distribution: PureLink GmbH Available from B2B Online Portal...
-
Page 2: Package Contents
Package Contents Please make sure all of the following items are included in the package: 1) 1 x UHDS-41R 2) 1 x 5V/1A Power Adapter 3) 1 x 38KHz IR Rx cable 4) 1 x Optical Converter Header (for SPDIF audio output) 5) 1 x IR remote 6) 1 x Owner’s manual... -
Page 3: General Specification
PureLink by Dtrovision General Specification PureLink’s UHDS-41R HDMI switch allows up to four (4) HDMI 2.0 digital video sources (with audio) to share one video display (with audio). Our unique switch allows easy switching between different digital video sources (with audio) with auto switching by input signal detection, remote control unit, with a manual toggle button in front and/or via RS232 port. -
Page 4: Operation And Reliability Specification
PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 104F (0℃~ 40℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 5: Main Features
PureLink by Dtrovision Main Features 1. Ultra HD/4K resolution support up to 4K60Hz (4:4:4 pixel format) 2. HDMI 2.0 & HDCP v2.2 support 3. High Dynamic Range (HDR) 10 bits support 4. BT2020 color representation 5. Auto-switching - Automatic input switching by signal detection 6. -
Page 6: Installation And Connection Instructions
PureLink by Dtrovision Installation and Connection Instructions 1. Connect your video source’s HDMI output port to the HDMI switch’s HDMI input port using standard HDMI cables (not included). Make sure all your HDMI sources and the display is turned off before connecting the cables. - Page 7 PureLink by Dtrovision UHDS-41R Specification Front Panel ① Input switching status LED indicator ② Input Select button - Press and hold for two (2) seconds to select between auto switching mode and manual switching mode When it’s on manual switching mode, press to switch inputs ③...
- Page 8 PureLink by Dtrovision ⑧ IR extension port ⑨ DC 5V input port IR remote ARC: Press to enable/disable ARC function Auto/2.1ch/5.1ch/7.1ch: Press these buttons to select EDID mode Auto Source: Press to select between auto switching mode and manual switching mode...
- Page 9 PureLink by Dtrovision Cable pinout Command protocols Command Protocols Command Feedback Input switching command Input 1 IN1! Input 2 IN2! Input 3 IN3! Input 4 IN4! Input Auto switching ONAUTO! OFFAUTO! Audio EDID switch Audio auto Stereo Audio 2.0 Dolby/DTS 5.1 HD Audio 7.1...
- Page 10 PureLink by Dtrovision HDMI Connector Pin Assignments HDMI port Pin No. Description Remarks TMDS DATA 2P TMDS DATA 2 Shield TMDS DATA 2M TMDS DATA 1P TMDS DATA 1 Shield TMDS DATA 1M TMDS DATA 0P TMDS DATA 0 Shield...
-
Page 11: Warranty
Warranty Manufacturer’s Warranty (3-Years) PureLink warrants this UHDS-41R switch to be free from defects in workmanship and materials, under normal use and service, for a period of three (3) year from the date of purchase from PureLink or its authorized resellers.
