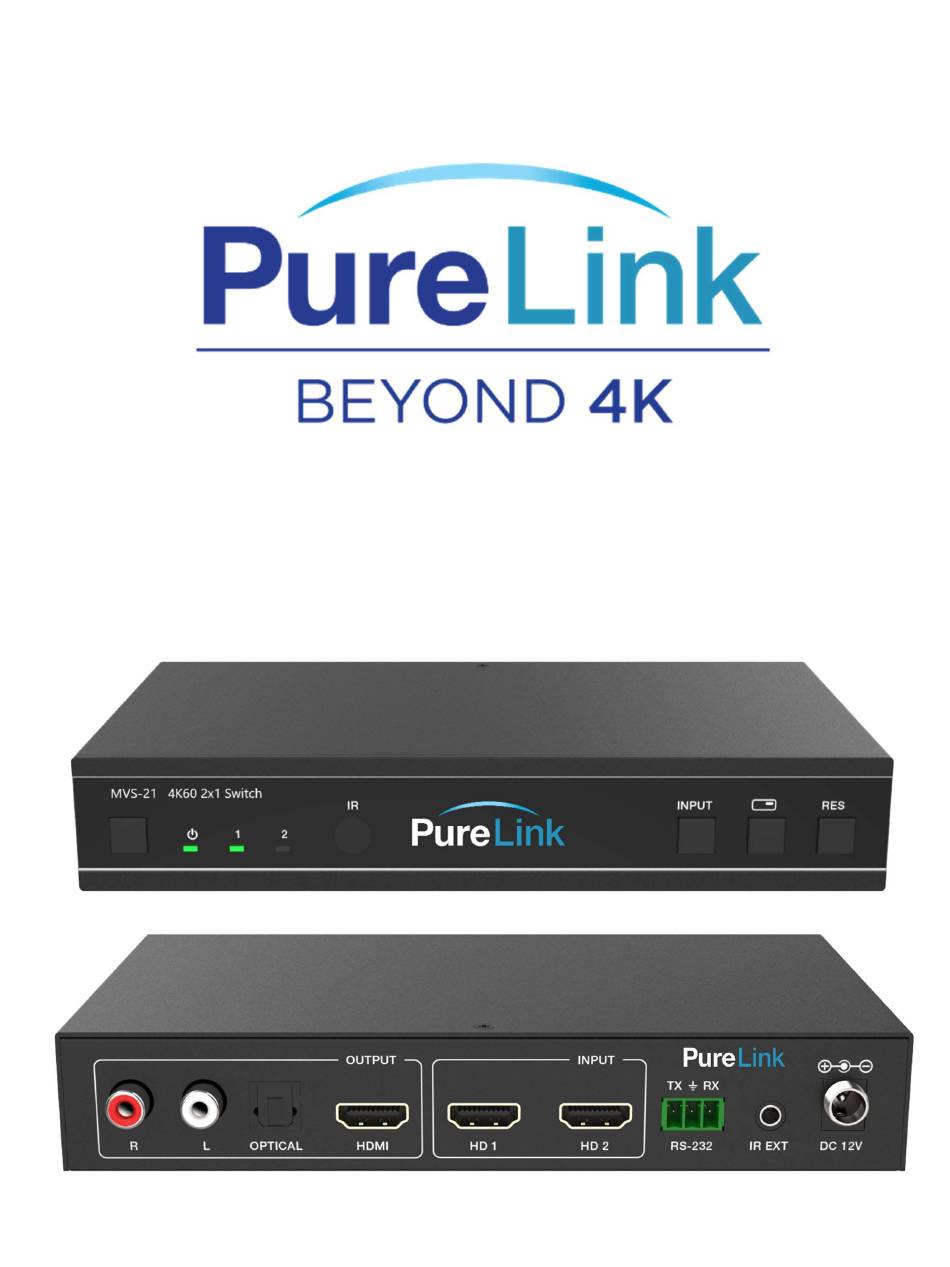

- Page 1 Purelink MVS-21 User Manual V1.0 MVS-21 4K60 2x1 Seamless Switch/Multiviewer/Scaling System...
-
Page 2: Table Of Contents
Purelink MVS-21 User Manual V1.0 Contents Introduction ..............................1 Features ..............................1 Package Contents ............................2 Specifications .............................. 2 Operation Controls and Functions ......................4 Front Panel .............................. 4 Rear Panel ............................... 5 IR Remote ..............................6 EDID Settings .............................. 7 Video &... -
Page 3: Introduction
Purelink MVS-21 User Manual V1.0 Introduction The PureLink MVS-21 provides 2x1 switching, multiview, and scaling conversion for two sources on a single screen. The user can easily manage each input and create any layout and position of any of the two inputs on a single monitor. -
Page 4: Package Contents
Purelink MVS-21 User Manual V1.0 Package Contents 1 x 4K60 2x1 Multiviewer Seamless UHD Video Switcher 1 x IR Remote 1 x 3pin-3.81mm Phoenix Connector (male) 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) ... - Page 5 Purelink MVS-21 User Manual V1.0 Connection Input ports 2 x HDMI IN [Type A, 19-pin female] 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] Output ports 1 x OPTICAL OUTPUT [S/PDIF] 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo...
-
Page 6: Operation Controls And Functions
Purelink MVS-21 User Manual V1.0 Operation Controls and Functions Front Panel Name Function Description Short press this button to power on the device. ▪ Long press this button for 1 seconds to enter the standby mode. ▪ Power button The Power LED will light in green when the product is powered on, and red when the Power product is on standby. -
Page 7: Rear Panel
Purelink MVS-21 User Manual V1.0 Rear Panel Name Function Description L/R port PCM2.0 Analog audio output port. OPTICAL Optical fiber digital audio output port. port HDMI HDMI signal output port, connected to HDMI display device such as TV or Monitor with OUTPUT HDMI cable. -
Page 8: Ir Remote
Purelink MVS-21 User Manual V1.0 IR Remote ① Power on or Standby: Press this button to power on the switcher or set it to standby mode. ② Baud: Press this button to pop up OSD menu, then circularly select the five serial port Bauds: 115200, 57600, 38400, 19200, 9600 ③... -
Page 9: Edid Settings
Purelink MVS-21 User Manual V1.0 EDID Settings Select from the following EDID modes via RS-232 command or OSD menu navigation. No. EDID Mode EDID Mode 4K60-2.0CH 1920x1200-2.0CH 4K60-5.1CH 1680x1050-2.0CH 4K60-7.1CH 1600x1200-2.0CH 4K30-2.0CH 1440x900-2.0CH 4K30-5.1CH 1360x768-2.0CH 4K30-7.1CH 1280x1024-2.0CH 1080P-2.0CH 1024x768-2.0CH 720P-2.0CH 1080P-5.1CH... -
Page 10: Multiview
Purelink MVS-21 User Manual V1.0 Multiview The switcher has 4 categories of multiview display modes: SINGLE, PIP, PBP (1), PBP (2) Users can select different operations for different Multiview modes as following: SINGLE: Inputs selection PIP: Inputs selection, Sub window size and position selection PBP (1), PBP (2): Inputs... -
Page 11: Rs-232 Command
Purelink MVS-21 User Manual V1.0 RS-232 Command Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. ASCII Commands Serial port protocol: baud rate: 115200(default) Data bits: 8 Stop bits: 1 Check bit: 0 x - Parameter 1;... - Page 12 Purelink MVS-21 User Manual V1.0 Command Code Function Description Example Feedback Output Setting Set Output Resolution (x=1~14) 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, s output res x! s output res 3! out resolution: 3840x2160p60 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 10.1360x768p60, 11.1280x800p60, 12.1280x720p60, 13.1280x720p50,...
- Page 13 Purelink MVS-21 User Manual V1.0 Command Code Function Description Example Feedback EDID Setting Set HDMI input EDID mode (x=18) 4K2K60_444,Stereo Audio 4K2K60_444,Dolby/DTS 5.1 4K2K60_444,HD Audio 7.1 4K2K30_444,Stereo Audio 4K2K30_444,Dolby/DTS 5.1 input EDID:4K2K60_444, 4K2K30_444,HD Audio 7.1 s input EDID x! s input EDID 1! Stereo Audio 2.0...
- Page 14 Purelink MVS-21 User Manual V1.0 Command Code Function Description Example Feedback Set output audio mute s output audio s output audio on/off (x=0~1) output audio mute: off mute x! mute 0! mute off mute on r output audio r output audio...
- Page 15 Purelink MVS-21 User Manual V1.0 Command Code Function Description Example Feedback Get windows selected input source (x=0~2) r window x in! r window 1 in! window 1 select HDMI 1 window 1 window 2 Set PIP window position (x=1~4) s PIP position x!
- Page 16 Purelink MVS-21 User Manual V1.0 14 / 14...
