- Page 1 User Manual ENCLOSURES: MHUB-ENC100-X (ON-TABLE) MHUB-ENC101-X (IN-TABLE) CARTRIDGES: MHUB-CART-TPR150-X-XX MHUB-CART-SHD310-X-XX MODULES: MHUB-TPR-150CR MHUB-SHD-310SM...
-
Page 3: Table Of Contents
User Manual TABLE OF CONTENTS 1 | Description 2 | Technical Specifications 3 | Use 4 | Product Configuration 5 | Assembly Instructions 6 | Connection 7 | Caution... -
Page 4: Description

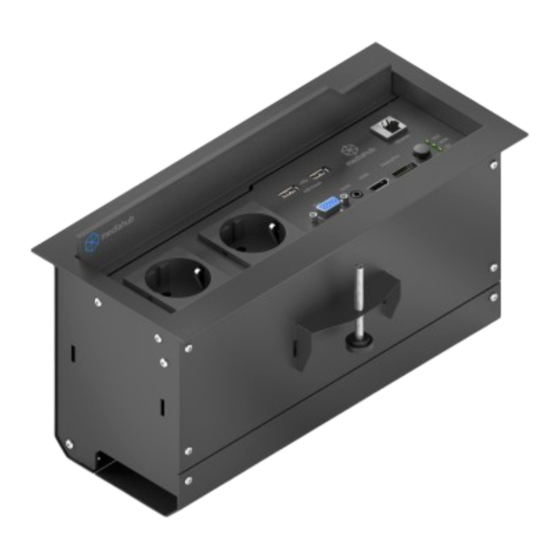

User Manual 1 | DESCRIPTION mediahub™ by PureLink are devices designed for fixed horizontal interior installation. They can be mounted into almost any table, desk or other furniture item. mediahub™ enables access to international power sockets for charging notebooks and phones, etc. They also provide access to data networks and audio-visual components. Other options include keypad control systems for peripheral and room control. -
Page 5: Use
User Manual 3 | USE The mediahub™ installation should be done according to the user manual. Only a qualified electrician or installer should attempt connection of this device to the mains power grid. Use only common mild cleaning products to clean the external parts. Do not clean the power socket with a damp towel. Do not use products containing ethylene, oil and aggressive solvents for cleaning. -
Page 6: Assembly Instructions
User Manual 5 | ASSEMBLY INSTRUCTIONS • Adapted for horizontal installation into desks of thickness from 16 to 40 mm • Mounted from the lower side of the table desk (mounting clamps with screws) Step 1: Cut an opening in the table. For in-table installations add a cut-out for the rim: Pic 1 Pic 2 Product type... -
Page 7: Connection
User Manual 6 | CONNECTION The mediahub™ features easy access: Only one cover, fixed by one screw. Step 1: Unscrew the cover and connect the cables or connectors inside the mediahub™. Step 2: After connecting, reattach the cover firmly. 125,0 282,0 263,0 102,6... - Page 8 0049 (0)5971-800 299 -0 Fax: 0049 (0)5971-800 299 -99 E-mail: info@purelink.de Internet: www.purelink.de © 2016 PureLink GmbH. All rights reserved. All trade names are registered trademarks of respective manufactures listed. V. 1.1 HDMI is a trademark of HDMI Licensing LLC.
