Page 1: User Manual

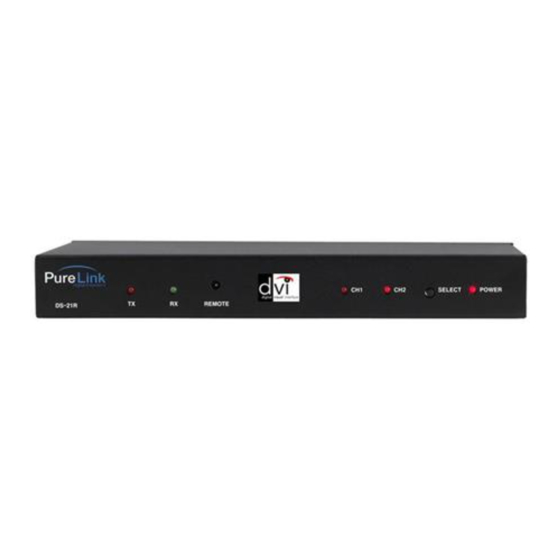

2X1 DVI Switch (DS-21R) 4X1 DVI Switch (DS-41R) USER MANUAL PureLink 535 East Crescent Avenue Ramsey, NJ 07446, USA Tel : 201.488.3232 Fax : 201.621.6118 Email: support@purelinkav.com www.purelinkav.com... -
Page 2: Product Overview
UNPACKING Each DVI Link DVI Switch package includes the following items; DS-21R/DS-41R DVI LINK DVI Switch Unit 5V Power Supply Adapter User manual PRODUCT OVERVIEW DVI Link DVI switch allows number of digital video sources to share one video display. -
Page 3: Main Features
MAIN FEATURES 1. High Quality Picture - No Signal Loss and Digital Noise Free Our switchers are built to deliver the highest quality picture preserving the native resolutions of the video sources without any signal loss. At the same time, the digital noises that may affect the picture quality will be eliminated. -
Page 4: Video Connection
RS232 Control Information Our DS-21R and DS-41R use pin#2 and #3 and the assignments are as follows; Control computer's RS232 pin# 2 is connected to our DVI switch's pin#3 Control computer's RS232 pin# 3 is connected to our DVI switch's pin#2 The control protocols are as follows;... -
Page 5: Technical Specification
TECHNICAL SPECIFICATION Frequency bandwidth: 1.65 Gbps (Single Link) Supporting Graphic Resolution: UXGA (1600 X 1200 at up to 85Hz) (1920 X 1080 at up to 60Hz) Inputs: Dual DVI-D Female ports Output: DVI-D Female port. Power supply: DC 5V, 2A Adapter included. Dimensions (W X D X H): 6.7 X 4.75 X 1.2 Inches. - Page 6 Troubleshooting Problem Solution Switch will not operate Make sure the 5V power is plugged in the back of the unit. Check to see if the power LED light is on. No picture(or signal) 1. In case your video source is HDCP enabled, make sure your Or Poor picture video display(HDTV) is HDCP compliant.
