Summary of Contents for PureLink PureTools PT-SW-HD41UHD
-
Page 1: User Manual
User Manual PT-SW-HD41UHD User Manual Switcher 4K (60Hz 4:4:4) HDR with Auto-Switching Model PT-SW-HD41UHD Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0... -
Page 2: Fcc Statement
User Manual PT-SW-HD41UHD Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make changes in functions or parameters without prior notice or obligation. - Page 3 PT-SW-HD41UHD REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SW-HD41UHD complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SW-HD41UHD complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-SW-HD41UHD SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. Follow basic safety precautions to reduce the risk of fire, electrical shock and ... -
Page 5: Table Of Contents
User Manual PT-SW-HD41UHD Contents 1. Introduction ........................... 1 1.1 Introduction to PT-SW-HD41UHD ................. 1 1.2 Feature ......................... 1 1.3 Package List ........................ 2 2. Panel Description ......................... 3 2.1 Front Panel ........................3 2.2 Rear Panel ........................4 3. System Connection ......................5 3.1 Usage Precaution ....................... -
Page 6: Introduction

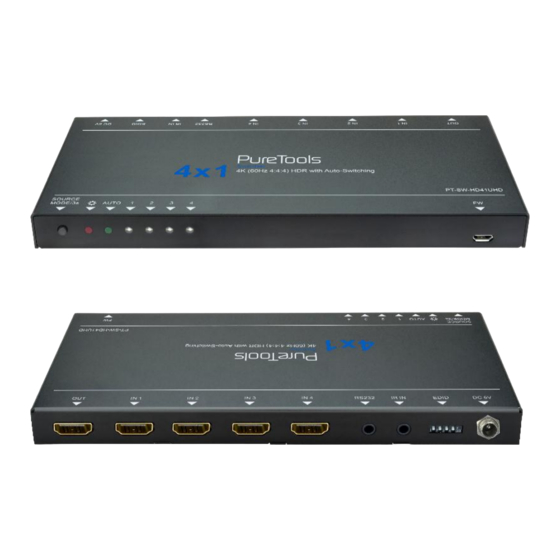

User Manual PT-SW-HD41UHD 1. Introduction 1.1 Introduction to PT-SW-HD41UHD This PT-SW-HD41UHD is an HDMI2.0 switcher accommodates 4 HDMI inputs. If select any of the inputs by “SOURCE” button on the front panel, IR Remote, or sending RS232 command, the corresponding indicator will illuminate to show real-time switching status. -
Page 7: Package List
User Manual PT-SW-HD41UHD 1.3 Package List 1 x PT-SW-HD41UHD 4K HDMI2.0 Switcher 4x1 2 x Mounting ears & 4 x Screws 4 x Plastic cushions 1 x IR Receiver (5V, with carrier) 1 x IR Remote ... -
Page 8: Panel Description
User Manual PT-SW-HD41UHD 2. Panel Description 2.1 Front Panel SOURCE MODE/3s AUTO 1 2 3 Name Description Video source selection button, press to switch among the 4 inputs source circularly. SOURCE/ ① Switch mode selection button, press and hold for 3 ... -
Page 9: Rear Panel
User Manual PT-SW-HD41UHD 2.2 Rear Panel IN 1 IN 2 IN 3 IN 4 RS232 IR IN EDID DC 5V Name Description HDMI output port, connect to HDMI display ① Total 4 HDMI input ports, connect with HDMI source devices. ②... -
Page 10: System Connection
User Manual PT-SW-HD41UHD 3. System Connection 3.1 Usage Precaution Verify all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity (see page 16 for limits). All of the power switches, plugs, sockets and power cords should be ... -
Page 11: Connection Procedure
User Manual PT-SW-HD41UHD 3.3 Connection Procedure Step1. Connect HDMI source device(s) (e.g. Blue-ray DVD) to the “IN1”~ “IN4”ports of this switcher with HDMI cable. Step2. Connect HDMI display (e.g. HDTV) to “OUT” port of this switcher with HDMI cable. Step3. Connect an IR Receiver to the “IR IN” to control the switcher via IR Remote. Step4. -
Page 12: Panel Control
User Manual PT-SW-HD41UHD 4. Panel Control 4.1 Input Source Switching The button “SOURCE/MODE/3s” on the front panel can be used to select input source and switch mode. 4.1.1 Manual Switching Mode Press “SOURCE/MODE/3s” button to switch circularly among input 1~4, the corresponding indicator illuminate green synchronously for easy recognition. -
Page 13: Embedded Edid Invoking
User Manual PT-SW-HD41UHD 4.2 Embedded EDID Invoking The rear panel boasts a 4-pin DIP switcher to invoke embedded EDID. The embedded EDID data and their corresponding DIP switcher status are shown in the below list. Status EDID 0000 Pass though (default) 0001 1080p 3D 2CH 0010... -
Page 14: Ir Control
User Manual PT-SW-HD41UHD 5. IR Control Connect an IR receiver to the IR IN port, this switcher can be controlled via the included IR Remote. As CEC function, it is able to use the IR Remote to control the source or display device. Here is a brief introduction about the IR Remote: INPUTS: 1~4: Select video source via pressing corresponding button. -
Page 15: Rs232 Control
User Manual PT-SW-HD41UHD 6. RS232 Control This switcher provides with RS232 port for serial port control. Connect this switcher to the control device (e.g. PC) with RS232 cable and set the parameters in the right manner, the control device is capable to control this switcher via designed software. - Page 16 User Manual PT-SW-HD41UHD Parameter Configuration area Monitoring area, indicates Monitoring area, indicates whether the command whether the command sent works. sent works. Command Sending area Command Sending area...
-
Page 17: Rs232 Command
User Manual PT-SW-HD41UHD 6.2 RS232 Command 6.2.1 Switching Command Function Command Feedback Example HDMI1% [CMD]: switch to HDMI1. Switch to HDMI input 1. Switch to HDMI input 2. HDMI2% [CMD]: switch to HDMI2. Switch to HDMI input 3. HDMI3% [CMD]: switch to HDMI3. Switch to HDMI input 4. -
Page 18: Source Device Control
User Manual PT-SW-HD41UHD Switcher Switcher Switcher Status Status Status 0111 1000 1001 1010 1011 1100 DIP Switcher The location “ON” is 1101 1110 1111 “1”. 6.2.3 Source Device Control Function Command Feedback Example Turn on the input source SRCOn% [CMD]: blue ray power device, e.g. -
Page 19: Display Device Control
User Manual PT-SW-HD41UHD Function Command Feedback Example Up direction SRCUp% [CMD]: blue ray up. Down direction SRCDown% [CMD]: blue ray down. Left direction SRCLeft% [CMD]: blue ray left. Right direction SRCRight% [CMD]: blue ray right. Next SRCNext% [CMD]: blue ray next. Enter SRCEnter% [CMD]: blue ray Enter. -
Page 20: Firmware Upgrade
User Manual PT-SW-HD41UHD 7. Firmware Upgrade This switcher boasts a USB port for online firmware upgrade on the front panel. Follow these steps to upgrade firmware: Step1. Connect control PC to the USB port of this switcher with USB cable. Step2. -
Page 21: Specification
User Manual PT-SW-HD41UHD 8. Specification Input Signal 4 HDMI Input Connector Female Type-A HDMI 1 HDMI Output Signal Female Type-A HDMI Output Connector Control Signal 1 IR IN; 1 RS232 2 3.5mm mini jacks Control Connector HDMI2.0& HDCP2.2 Video Signal Audio Signal Dolby Digital, DTS, DTS-HD General... -
Page 22: Panel Drawing
User Manual PT-SW-HD41UHD 9. Panel Drawing 194 mm Switcher 4K (60Hz 4:4:4) HDR with Auto-Switching PT-SW-HD41UHD SOURCE MODE/3s AUTO... -
Page 23: Troubleshooting & Maintenance
User Manual PT-SW-HD41UHD 10. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display The connecting Check whether the cables cables may not be No HDMI signal output in this are connected correctly connected correctly switcher while local HDMI and in working condition. -
Page 24: After-Sales Service
User Manual PT-SW-HD41UHD 11. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 25 User Manual PT-SW-HD41UHD...
- Page 26 User Manual PT-SW-HD41UHD...
- Page 27 User Manual PT-SW-HD41UHD...
- Page 28 Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
