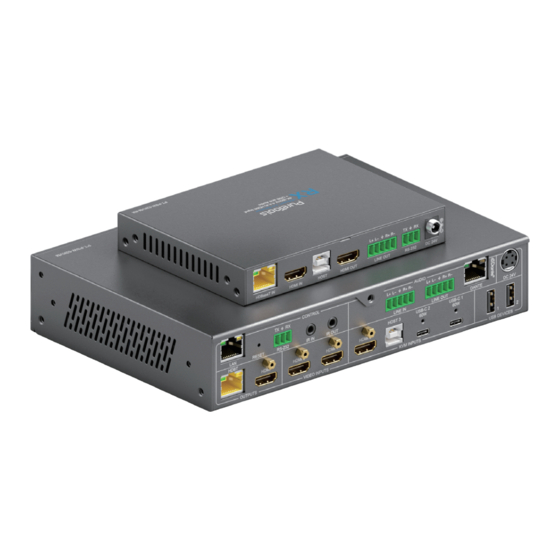

5x2 hdbaset 3.0 kvm multiview hdmi & usb-c switcher with dante
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
PT-PSW-52KVM
User Manual

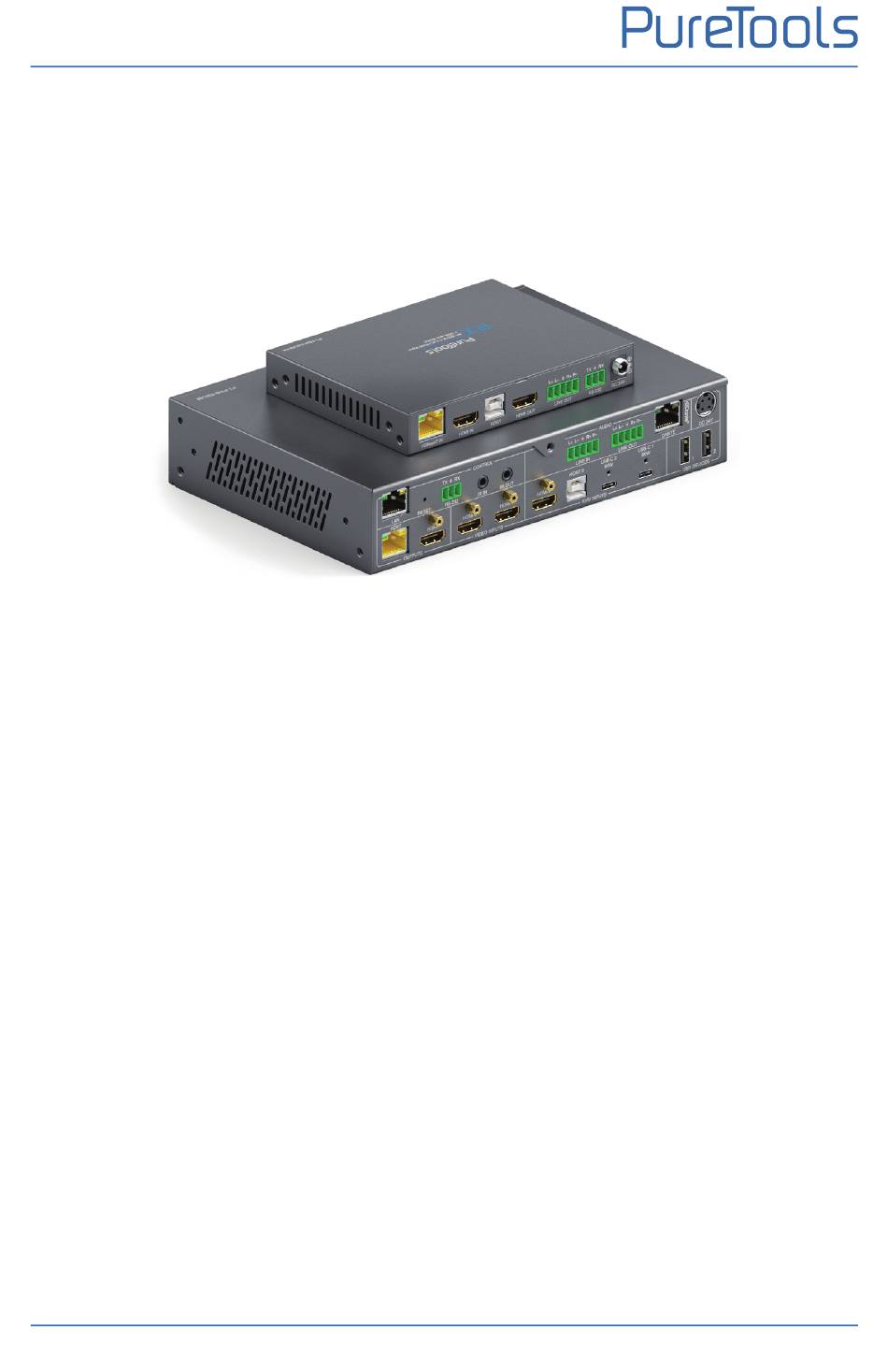

5x2 HDBaseT 3.0 KVM Multiview
HDMI & USB-C Switcher with Dante
Model PT-PSW-52KVM
Version V1.0
Designed in Germany
© 2023 PureLink GmbH All rights reserved.
