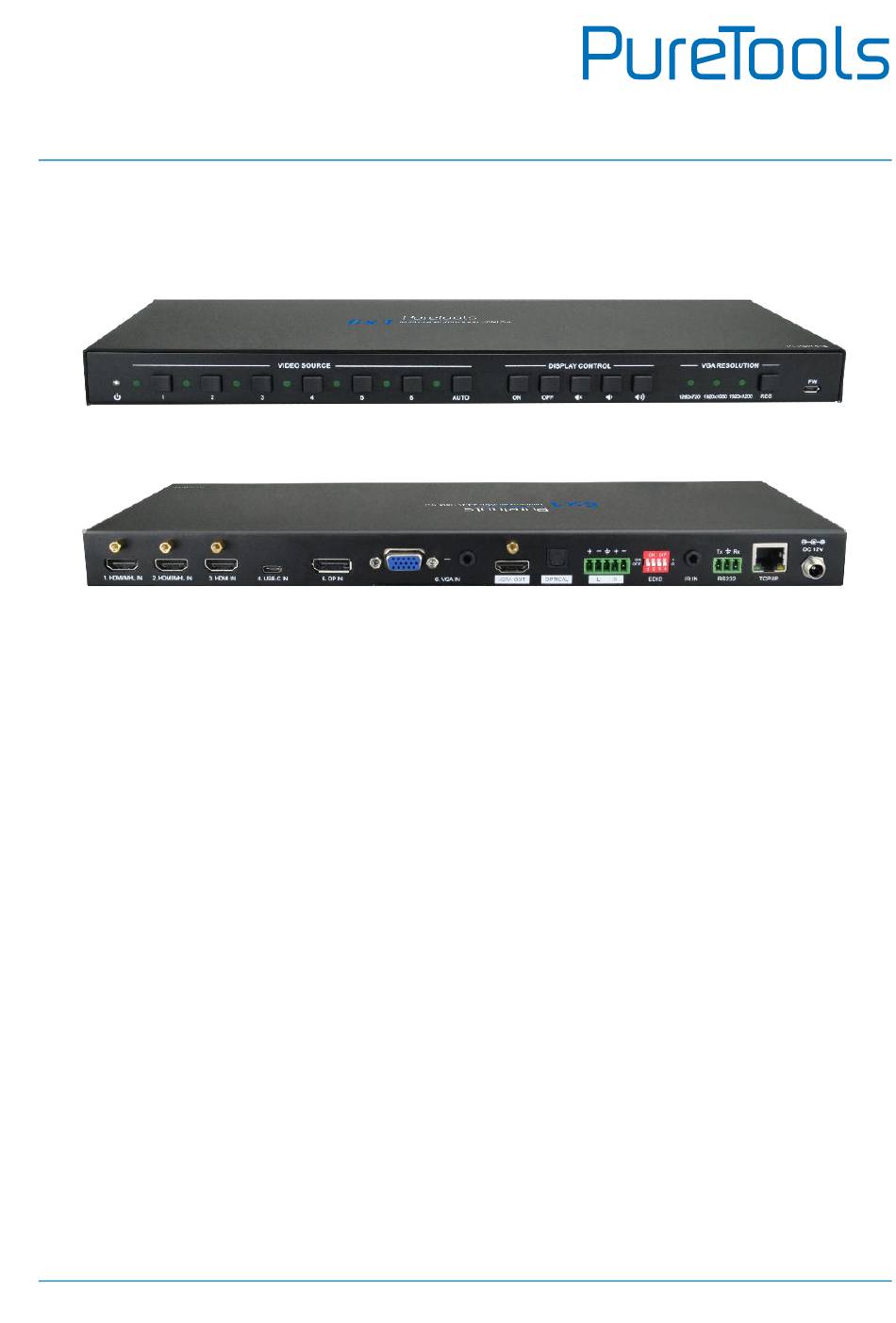

- Page 1 User Manual PT-PSW-61E User Manual 6x1 Multiformat Presentation Switcher 4K (60Hz 4:4:4), HDMI Out with HDCP 2.2 support Model PT-PSW-61E Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-PSW-61E Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make changes in functions or parameters without prior notice or obligation.
- Page 3 PT-PSW-61E REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-61E complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-61E complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-PSW-61E SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ...
-
Page 5: Table Of Contents
User Manual PT-PSW-61E Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Specification ..........................3 3. Panel Description ........................5 3.1 Front Panel ......................... 5 3.2 Rear Panel .......................... 6 4. System Connection ........................7 4.1 Usage Precaution ...................... - Page 6 User Manual PT-PSW-61E 7.9 GUI Upgrade........................22 8. RS232 Control ........................... 23 8.1 RS232 Control Software ....................23 8.2 RS232 Command ......................25 8.2.1 Device Control ....................25 8.2.2 Source Switching ....................27 8.2.3 VGA Resolution Selection ................27 8.2.4 EDID Management ..................... 28 8.2.5 Audio Control ......................
-
Page 7: Product Introduction
User Manual PT-PSW-61E 1. Product Introduction Thanks for choosing the HDMI 2.0 6x1 Presentation Switcher. The switcher allows selection of six different sources (three HDMI inputs, one USB-C input, one DisplayPort input and one VGA input), and will simultaneously switch the selected video to HDMI output. -
Page 8: Package List
User Manual PT-PSW-61E 1.2 Package List 1x PT-PSW-61E HDMI 2.0 6x1 Presentation Switcher 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x IR Receiver 1x IR Remote 1x 3-pin Terminal Block 1x 5-pin Terminal Block ... -
Page 9: Specification
User Manual PT-PSW-61E 2. Specification Video Video Input (2) HDMI/MHL, (1) HDMI, (1) USB-C, (1) DP, (1) VGA (3) Type-A female HDMI, (1) Type-C USB 3.0, Video Input Connector (1) DisplayPort, (1) 15-pin female VGA HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit MHL Input Resolution Up to 1080P@60Hz USB-C Input Resolution... - Page 10 User Manual PT-PSW-61E Audio <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at THD+N 0dBFS level (or max level) >80dB, 20Hz ~ 20KHz bandwidth >70dB, 10KHz sine at 0dBFS level (or max level before Crosstalk Isolation clipping) < 0.3dB, 1KHz sine at 0dBFS level (or max level before L-R Level Deviation clipping) Frequency Response Deviation...
-
Page 11: Panel Description

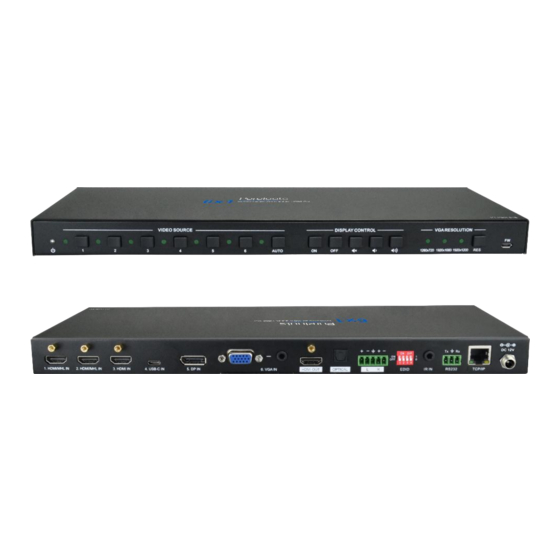

User Manual PT-PSW-61E 3. Panel Description 3.1 Front Panel VIDEO SOURCE DISPLAY CONTROL VGA RESOLUTION AUTO 1280x720 1920x1080 1920x1200 ① Power LED: The LED illuminates red when the device is in standby, or illuminates green when the device is power on. ②... -
Page 12: Rear Panel
User Manual PT-PSW-61E 3.2 Rear Panel 1 2 3 4 1. HDMI/MHL IN 2. HDMI/MHL IN 3. HDMI IN 4. USB-C IN 5. DP IN 6. VGA IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP ① VIDEO SOURCE: Three type-A female HDMI input ports to connect HDMI video source. ... -
Page 13: System Connection
User Manual PT-PSW-61E 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 14: Button Control
User Manual PT-PSW-61E 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, the Auto Mode LED goes out. If need to change the input source, please directly press the 1, 2, 3, 4, 5 or 6 button, and the corresponding LED illuminates green immediately. -
Page 15: Display Control
User Manual PT-PSW-61E 5.3 Display Control The switcher supports CEC, and the DISPLAY CONTROL buttons on the front panel are designed for Display On/Off and volume adjustment. ON: Display On. OFF: Display Off. : Mute/unmute display audio. : Volume down display audio. - Page 16 User Manual PT-PSW-61E The switch represents “0” when in the lower (OFF) position, and it represents “1” while putting the switch in the upper (ON) position. Switch Status Video Resolution Audio Format 0000 (Default) EDID pass-through 0001 1920x1080@60Hz RGB 4:4:4 8bit Stereo Audio High Definition 0010...
-
Page 17: Ir Remote Control
User Manual PT-PSW-61E 6. IR Remote Control Connect the IR IN port to an IR receiver, the switcher can be controlled by the below IR remote. ① Enter or exit standby mode. ② Video input selection buttons (1~6) and AUTO mode button. -
Page 18: Gui Control
User Manual PT-PSW-61E 7. GUI Control The switcher also be controlled via TCP/IP, and the default IP setting is: IP Address: 192.168.0.178 Subnet Mask: 255.255.250.0 Please type 192.168.0.178 in the internet browser, and it will enter the below log-in webpage: Username: admin Password: admin Please type the user name and password, and then click Login to enter the section for... -
Page 19: Switching Tab
User Manual PT-PSW-61E 7.1 Switching Tab Click the AUTO button to enable automatic switching mode. Click 1~6 button to select input source respectively. ... -
Page 20: Display Control Tab
User Manual PT-PSW-61E 7.2 Display Control Tab 1) CEC Control ON: Display On. OFF: Display Off. : Mute/unmute display audio. : Volume down display audio. : Volume up display audio. ... - Page 21 User Manual PT-PSW-61E 2) VGA Resolution Selection VGA output resolution can be selected as 1024x768@60Hz, 1280x720@50Hz, 1280x720@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@50Hz, 1920x1080@60Hz (Default) or 1920x1200@60Hz.
-
Page 22: Audio Tab
User Manual PT-PSW-61E 7.3 Audio Tab Turn on or turn off the digital audio output. Turn on or turn off the analog audio output. ... -
Page 23: Edid Tab
User Manual PT-PSW-61E 7.4 EDID Tab Before select EDID in this tab, please ensure the 4-pin DIP switch on the rear panel is on the “1111” position. User-defined EDID: There are four EDID values can be customized by the below ... -
Page 24: Rs232 Tab
User Manual PT-PSW-61E 7.5 RS232 Tab Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Command Ending: NULL, CR, LF or CR+LF can be chosen. Command: Type the command in this box to control the third-party device ... -
Page 25: Interface Tab
User Manual PT-PSW-61E 7.6 Interface Tab Modify the title bar label. Modify the button labels. ... -
Page 26: Access Tab
User Manual PT-PSW-61E 7.7 Access Tab Modify the login password. Lock or unlock the front panel buttons. ... -
Page 27: Network Tab
User Manual PT-PSW-61E 7.8 Network Tab Set Static IP or Dynamic Host Configuration Protocol (DHCP). Modify the static IP Address, Subnet Mask, and Gateway. ... -
Page 28: Gui Upgrade
User Manual PT-PSW-61E 7.9 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the update file and click Apply button, and then it will start upgrade process. -
Page 29: Rs232 Control
User Manual PT-PSW-61E 8. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending the RS232 commands. 8.1 RS232 Control Software Installation: Copy the control software file to the control PC. ... - Page 30 User Manual PT-PSW-61E The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then the command is ready to be sent in command sending area.
-
Page 31: Rs232 Command
User Manual PT-PSW-61E 8.2 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Note: All commands not need to end with “<CR><LF>”. In the commands, “[”and “]” are symbols for easy reading and do not need to be ... - Page 32 User Manual PT-PSW-61E Command Function Feedback Example GUI/RS232 QUERY STATUS! PT-PSW-61E VERSION V1.0.0 POWER ON! FRONT PANEL UNLOCK! Report system status. STA. HDMI OUT SWITCH TO AUTO MODE! HDMI OUT SWITCH TO 2! DIP0000! ⑤ … … FACTORY DEFAULT! PT-PSW-61E VERSION V1.0.0 POWER ON! FRONT PANEL UNLOCK!
-
Page 33: Source Switching
User Manual PT-PSW-61E 8.2.2 Source Switching Command Function Feedback Example HDMI1. Switch to HDMI input 1. HDMI OUT SWITCH TO 1! HDMI2. Switch to HDMI input 2. HDMI OUT SWITCH TO 2! Switch to HDMI input 3. HDMI OUT SWITCH TO 3! HDMI3. -
Page 34: Edid Management
User Manual PT-PSW-61E Command Function Feedback Example SET RESOLUTION OF VGA Set the VGA output resolution to OUTPUT TO VGARES5. 1600x1200@60Hz. 1600x1200@60Hz! SET RESOLUTION OF VGA Set the VGA output resolution to OUTPUT TO VGARES6. 1920x1080@50Hz. 1920x1080@50Hz! SET RESOLUTION OF VGA Set the VGA output resolution to OUTPUT TO VGARES7. -
Page 35: Audio Control
User Manual PT-PSW-61E User-define EDID There are four EDID values can be customized by sending the below command. Note: When send the below commands to configure EDID, the 4-pin EDID DIP switch on the rear panel must be in the “1111” status. Command Function &... -
Page 36: Display Control
User Manual PT-PSW-61E 8.2.6 Display Control Command Function Feedback Example Power on the display. CEC TV POWER ON! TVON. TVOFF. Power off the display. CEC TV POWER OFF! TVVOL+. Increase the display audio. CEC TV VOLUME INCREASE! Decrease the display audio. CEC TV VOLUME DECREASE! TVVOL-. -
Page 37: Third-Party Device Control
User Manual PT-PSW-61E 8.2.8 Third-party Device Control The switcher supports RS232 pass-through control, the third-party device can be controlled by RS232 command, and the command format as shown below: Command Function Command Example /+3:abc123 xxx: ASCII string. The “B” represents the baud rate of third-party device. -
Page 38: Panel Drawing
User Manual PT-PSW-61E 9. Panel Drawing 342.5mm 1 2 3 4 1. HDMI/MHL IN 2. HDMI/MHL IN 3. HDMI IN 4. USB-C IN 5. DP IN 6. VGA IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP Presentation Switcher Multiformat 4K (60Hz 4:4:4), HDMI Out PT-PSW-61E VIDEO SOURCE DISPLAY CONTROL... -
Page 39: Troubleshooting & Maintenance
User Manual PT-PSW-61E 10. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the connecting Try another high quality cable. cable. Output image with snowflake. Make sure the connection is Fail or loose connection. good. Check with oscilloscope or No signal at the input / output multimeter if there is any end. - Page 40 User Manual PT-PSW-61E...
-
Page 41: After-Sales Service
User Manual PT-PSW-61E 11. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 42 User Manual PT-PSW-61E...
- Page 43 User Manual PT-PSW-61E...
- Page 44 Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
