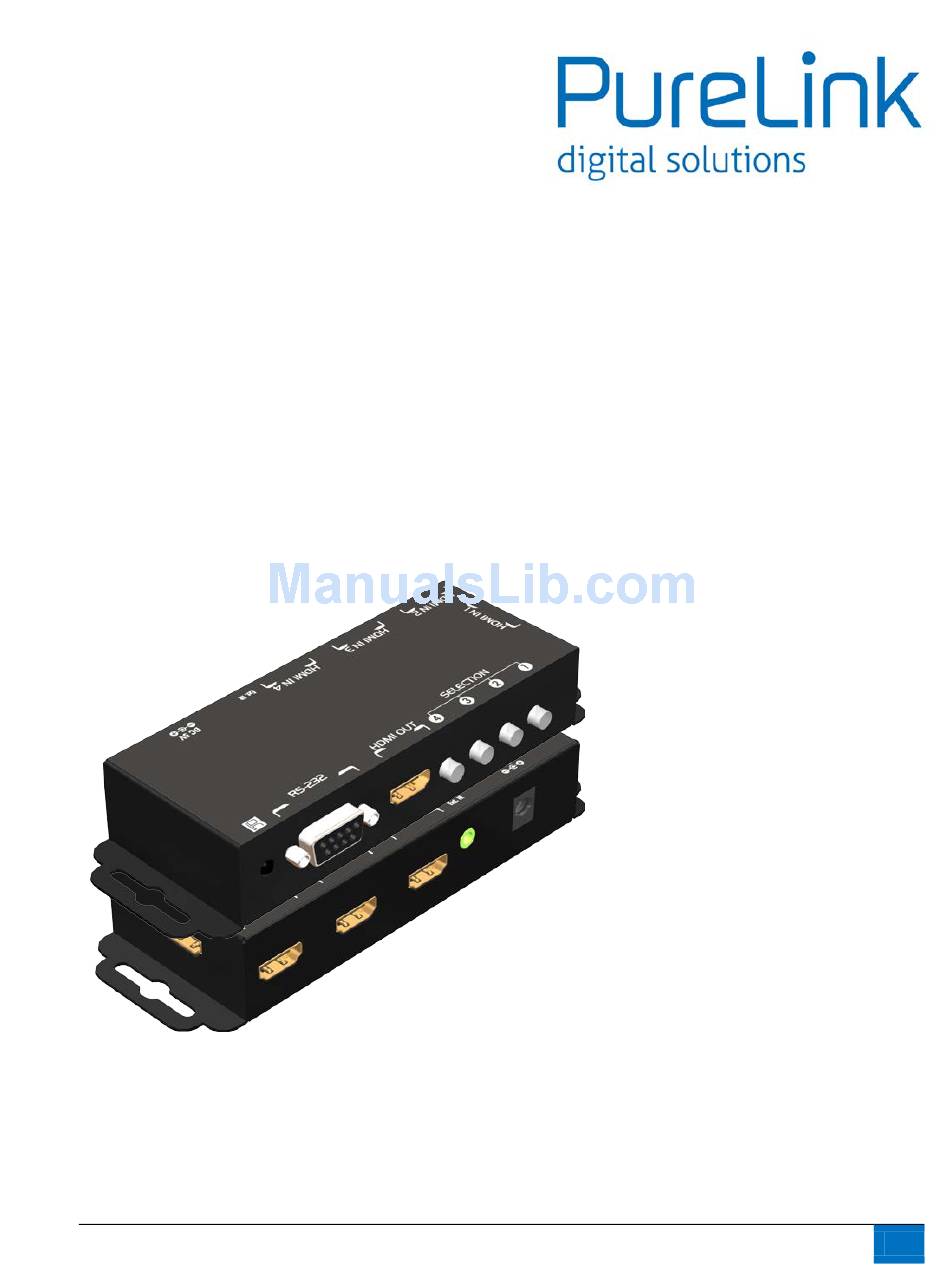

- Page 1 4x1 HDMI Switch with IR & RS-232 Control User’s Guide Models PT-SW-HD41 Designed in Germany Made in Taiwan © 2010 PureLink GmbH All rights reserved. www.purelink.de...
-
Page 2: Table Of Contents
1.6 Hardware Installation ......................5 1.7 IR Remote Control ........................6 1.8 The Command Protocol Format (RS-232 Serial Port) ............. 7 Section 2: Specifications ......................... 8 2.1 Pin Definitions ........................9 Section 3: Limited Warranty ......................... 10 Section 4: WARRANTY .......................... 11 www.purelink.de... -
Page 3: Section 1: Getting Started
However, like all electronic equipments, the PT-SW-HD41 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Package Contents
Package Contents Before you start the installation of the switch, please check the package contents. PT-SW-HD41 Power Adapter (+5VDC, 0.85A) IR remote control IR receiver User’s Guide Before Installation • Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction. -
Page 5: Panel Description
2. Connect your HDMI/DVI sources to the input ports of PT-SW-HD41. 3. Connect your HDMI/DVI enabled receiver (monitors etc.) into the output port of PT-SW-HD41. 4. Power up PT-SW-HD41. 5. Select the input you want to be displayed on the connected monitor with IR remote control or push button on the front panel. -
Page 6: Ir Remote Control
Select HDMI INPUT 1 to be the input source SOURCE SELECT 2 Select HDMI INPUT 2 to be the input source SOURCE SELECT 3 Select HDMI INPUT 3 to be the input source SOURCE SELECT 4 Select HDMI INPUT 4 to be the input source www.purelink.de... -
Page 7: The Command Protocol Format (Rs-232 Serial Port)
Function Description: Command Byte Name Value Comment Command Length 0x99 Check Code 1 Channel:1~4 Example Command: 0x99 0x1 Audio Control Function Description: Command Byte Name Value Comment Command Length 0x99 Check Code 1 0x05 On:0x05 Off:0x06 Example Command: 0x99 0x05 www.purelink.de... -
Page 8: Section 2: Specifications
Dimensions (L x W x H) Package: 175 x 128 x 134mm Fixedness wall-mounting case Power supply 5V 0.85A DC Power consumption 5 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] www.purelink.de... -
Page 9: Pin Definitions
TMDS Data0 Shield TMDS Data2+ TMDS Data2 Shield TMDS Data0– TMDS Clock+ DDC/CEC Ground TMDS Data2– TMDS Clock Shield TMDS Data1+ +5 V Power TMDS Clock– TMDS Data1 Shield Hot Plug Detect TMDS Data1– TMDS Data0+ Reserved (N.C. on device) www.purelink.de... -
Page 10: Section 3: Limited Warranty
Section 3: Limited Warranty The SELLER warrants the PT-SW-HD41 4x1 HDMI Switch with IR to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges. -
Page 11: Section 4: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the PT-SW-HD41 features and specifications is subject to change without further notice. - Page 12 www.purelink.de...
